Oil-Free Air Compressors for Clean Air

Name: Oil Free Air Compressor
SKU: 0

Engineered for applications where air quality is critical, ensuring contamination-free production and protecting your end products.

Contact our expert

Feature
Brand Model Parameter Table
Standard
Specific Model Parameter Table
• LUS scroll 1-22
• LUF rotary tooth 15-55
• LUF screw 55-315
Industry&Application
Spare Parts

Feature


Atlas Copco & Ingersoll Rand Original
Genuine components from Atlas Copco or Ingersoll Rand, ensuring high reliability and long service life.

Class 0 Oil-Free
Delivers completely oil-free air, meeting ISO 85731 Class 0 standards for contamination-free applications.

Brands Options
High-quality alternative brands available to suit different budget and operational requirements.

OEM White Label
Custom branding solutions with your own paint, logos, and nameplates to enhance your local presence and brand recognition.

Brand Model Parameter Table

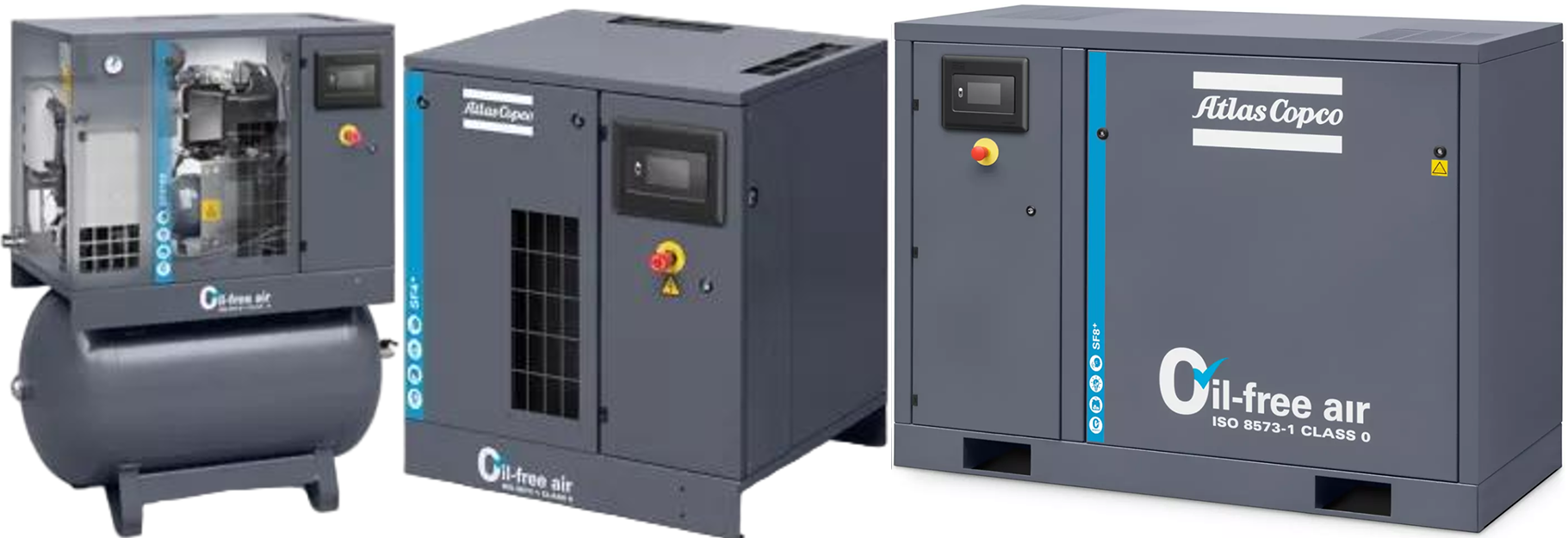

Oil Free Scroll Air Compressor

Brand	Power	Flow Range	Pressure Range	Reference Photo
	1.5-4×5.5kW	6.8-147 m³/min	8-10 bar
	1.5-4×5.5kW	6.8-147 m³/min	8-10 bar

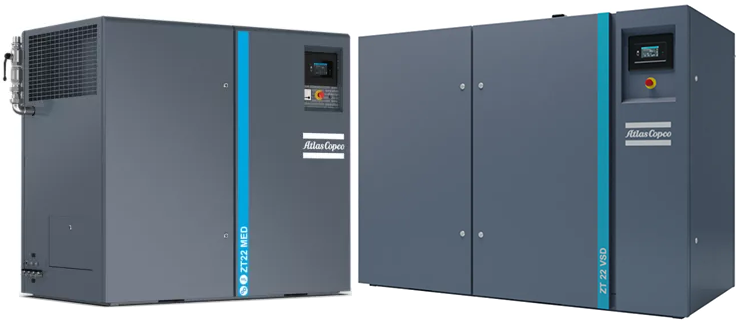

Oil-free Rotary Tooth Air Compressor

Brand	Power	Flow Range	Pressure Range	Reference Photo
	15-55 kW	1.8-8.6 m³/min	4-10 bar
	15-55 kW	1.8-8.6 m³/min	4-10 bar

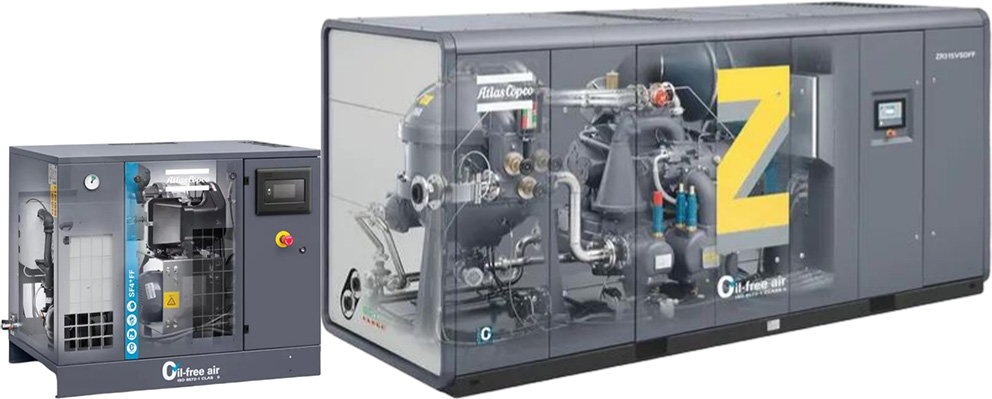

Oil-free Screw Air Compressore

Brand	Power	Flow Range	Pressure Range	Reference Photo
	55-315 kW	7.3-50.2 m³/min	7.5-10.5 bar
	37-355 kW	5-53.3 m³/min	4-10.7 bar
	55-720 kW	7.3-90 m³/min	7.5-10.5 bar

Standard

Specific Model Parameter Table

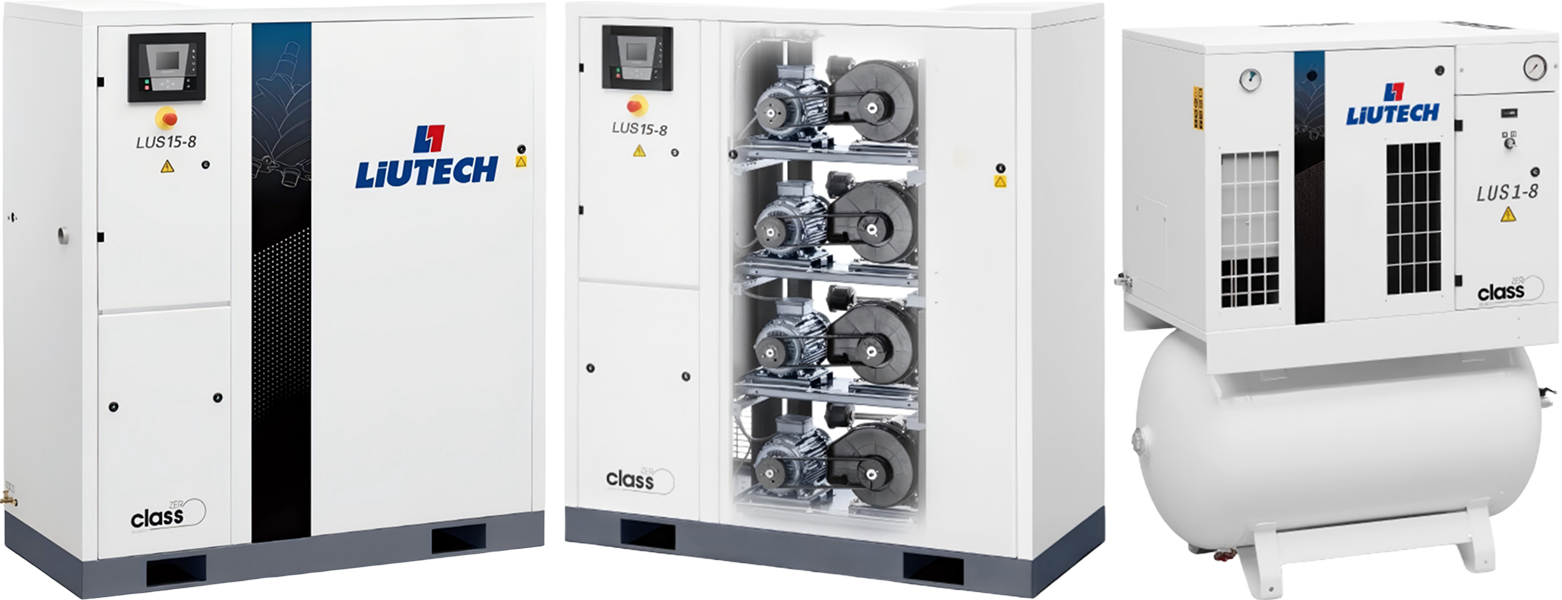

LUS scroll 1-22



	Model	Motor Power		Working Pressure bar	Capacity FAD			Noise Level	Weight*	Size（LWH)
		kW	hp		m³/h	l/s	cfm	db(A)	std(kg)	mm
Single module unit	LUS 1	1.5	2	8	10.4	2.9	6.1	53	120	Compressor: 750640835 +Dryer: 990640835 +270L air tank: 15206401335 +500L air tank: 18446401500
				10	6.8	1.9	4.0
	LUS 2	2.2	3	8	15.1	4.2	8.9	55	125
				10	12.2	3.4	7.2
	LUS 4	3.7	5	8	24.1	6.7	14.2	57	133
				10	21.2	5.9	12.5
	LUS 6	5.5	7.5	8	35.3	9.8	20.8	59	157
				10	27.4	7.6	16.1
Multi-modue unit	LUS 8	2x3.7	2x5	8	48.0	13.4	28.4	63	372	16307501230
				10	40.8	11.4	24.2
	LUS 11	2x5.5	2x7.5	8	73.2	20.3	43.0	63	418
				10	54.0	15.0	31.8
	LUS 15	4x3.7	4x5	8	95.0	26.4	55.9	63	580	16307501840
				10	82.8	23.0	48.7
	LUS 17	3x5.5	3x7.5	8	111.6	31.0	65.7	64	573
				10	85.2	23.7	50.2
	LUS 22	4x5.5	4x7.5	8	147.0	40.8	86.5	65	684
				10	108.0	30.0	63.6

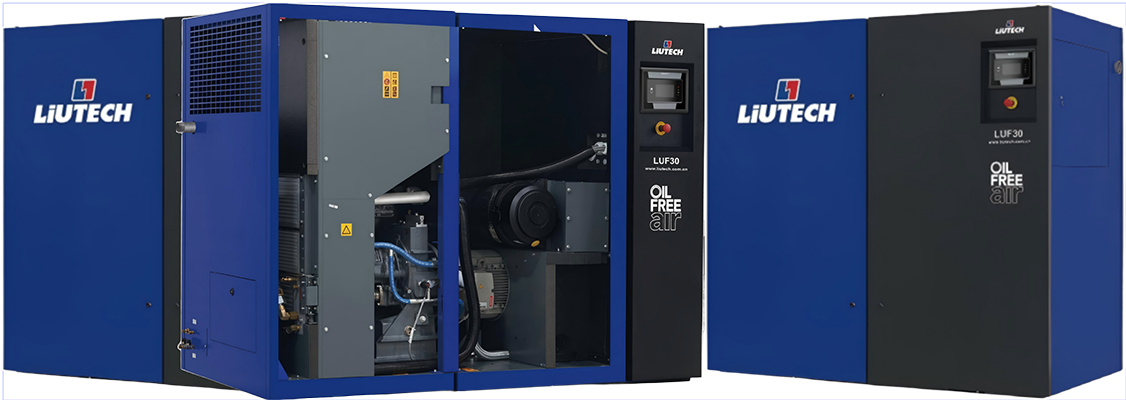

LUF rotary tooth 15-55



LUF15-45

LUF22-55 VSD

Model	Motor	Working Pressure	Capacity FAD(1)		Noise Level	Outlet size	Weight	*Size（LWH)*
Model	kW	bar(e)	L/s	m³/min	dB(a)		kg	mm
LUF15	15	7.5	38.1	2.3	68	G 1-1/2''	1025	176010171621
		8.6	35.5	2.1
		10	30.4	1.8
LUF18	18.5	7.5	48.6	2.9	70		1050
		8.6	46.4	2.8
		10	36.7	2.2
LUF22	22	7.5	59.6	3.6	72		1065
		8.6	54.0	3.2
		10	45.6	2.7
LUF30	30	7.5	76.2	4.6	69		1280	200510261880
		8.6	70.5	4.2
		10	61.7	3.7
LUF37	37	7.5	95.2	5.7	71		1355
		8.6	91.0	5.5
		10	80.0	4.8
LUF45	45	7.5	114.0	6.8	73		1385
		8.6	108.6	6.5
		10	95.0	5.7

Model	Motor	Working Pressure	Capacity FAD(1)		Noise Level	Outlet size	Weight	*Size（LWH)*
	kW	bar(e)	L/s	m³/min	dB(a)		kg	mm
LUF22 VSD	22	4	21.5-57.3	1.3-3.4	72	G 1-1/2''	1127	219510261621
		7	20.6-56.4	1.2-3.4
		10	19.7-47.4	1.2-2.8
LUF37 VSD	37	4	42.4-102.3	2.5-6.1	74		1400	244010261880
		7	41.3-101.2	2.5-6.1
		8.6	41.2-95.1	2.5-5.7
LUF37 VSD	37	4	42.4-102.3	2.5-6.1	74		1400
		7	41.3-101.2	2.5-6.1
		10	33.3-82.7	2.0-5.0
LUF55 VSD	55	4	42.4-143.7	2.5-8.6	75		1481
		7	41.3-142.5	2.5-8.6
		8.6	41.1-138.8	2.5-8.3
LUF55 VSD	55	4	42.4-143.7	2.5-8.6	75		1481
		7	41.3-142.5	2.5-8.6
		10	33.3-124.2	2.5-7.5

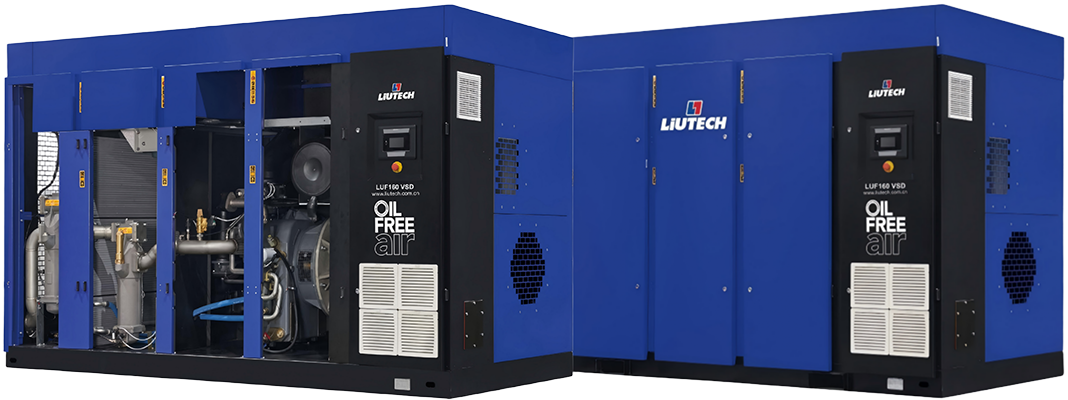

LUF screw 55-315



LUF 55-160 / VSD

LUF 160-315 / VSD

Model	Installation Power	Working Pressure	Capacity FAD	Weight	Size (L´W´H)
	kW	bar	m³/min	kg	mm
LUF55 (W)	55	7.5	8.7 (9.0)	2200 (1800)	2180´1530´2190
		8.6	7.9 (8.2)
		10	7.3 (7.6)
LUF75 (W)	75	7.5	12 (12.3)	2320 (1920)
		8.6	11.2 (11.5)
		10	10.7 (11.0)
LUF90 (W)	90	7.5	14.1 (14.5)	2400 (2000)
		8.6	13.4 (13.7)
		10	12.6 (13.0)
LUF110 (W)	110	7.5	18.4 (18.4)	2875 (2565)	3400´1660´2150
		8.6	16.9 (17.2)
		10	(16)
LUF132 (W)	132	7.5	21.8 (21.7)	2965 (2715)
		8.6	19.5
		10	(18.9)
LUF145 (W)	145	7.5	23.2	3050 (2790)
		8.6	21.5
		10	(19.9)

Model	Installation Power	Working Pressure	Capacity FAD	Weight	*Size（LWH)*
Model	kW	bar	m³/min	kg	mm
LUF75VSD (W)	75	8.6	13.0 (13.2)	2365	218015302190
LUF75VSD (W)	75	10	11.6 (11.7)	1990
LUF90VSD (W)	90	8.6	15.1 (15.3)	2435
LUF90VSD (W)	90	10	13.9 (14.1)	2035
LUF110VSD (W)	110	8.6	19.1 (19.4)	2925	243116601995
LUF110VSD (W)	110	10	(16.5)	2735
LUF132VSD (W)	132	8.6	(22.2)	3015
LUF132VSD (W)	132	10	(19.1)	2750
LUF160VSD (W)	160	8.6	(23.3)	3100
LUF160VSD (W)	160	10	(20.7)	2800

Model	nstallation Power	Max Working Pressure	Capacity FAD	Weight	*Size（LWH)*
	kW	bar	m³/min	kg	mm
LUF160 (W)	160	7.5	28.3	3944	295015951993
		8.6	26.2
		10	24.2
LUF200 (W)	200	7.5	36.1	4034
		8.6	33.1
		10	30.4
LUF200 (VSD) (W)	200	8.6	35.68	4129
		10.4	32.87
LUF250 (W)	250	7.5	43.1	4524
		8.6	41.0
		10	37.4
LUF250 (VSD) (W)	250	8.6	44.4	4254
		10.4	37.74
LUF275 (W)	275	7.5	46.4	4894
		8.6	43.1
		10	41.0
LUF315 (VSD) (W)	300	8.6	50.2	4264
		10.4	42.4

Industry & Application

Food & Beverage Processing
Ensures clean, oil-free air for packaging, bottling, cleaning, and pneumatic control in food production lines.
Pharmaceutical & Medical Devices
Provides contamination-free air for pharmaceutical manufacturing, medical equipment assembly, and clean environments in compliance with GMP standards.
Electronics & Precision Manufacturing
Supplies ultra-clean air for assembly, testing, and automation in electronics and precision equipment manufacturing.
Chemical & Fine Chemicals
Delivers oil-free air for chemical reactions, purging, and process control in sensitive chemical and fine chemical industries.
Cleanrooms & Research Facilities
Supports laboratory equipment, pneumatic instruments, and automation systems in high-purity, controlled environments.
