Home > Our Complete Offer > Diesel Generator

Reliable Power
Anytime
Anywhere

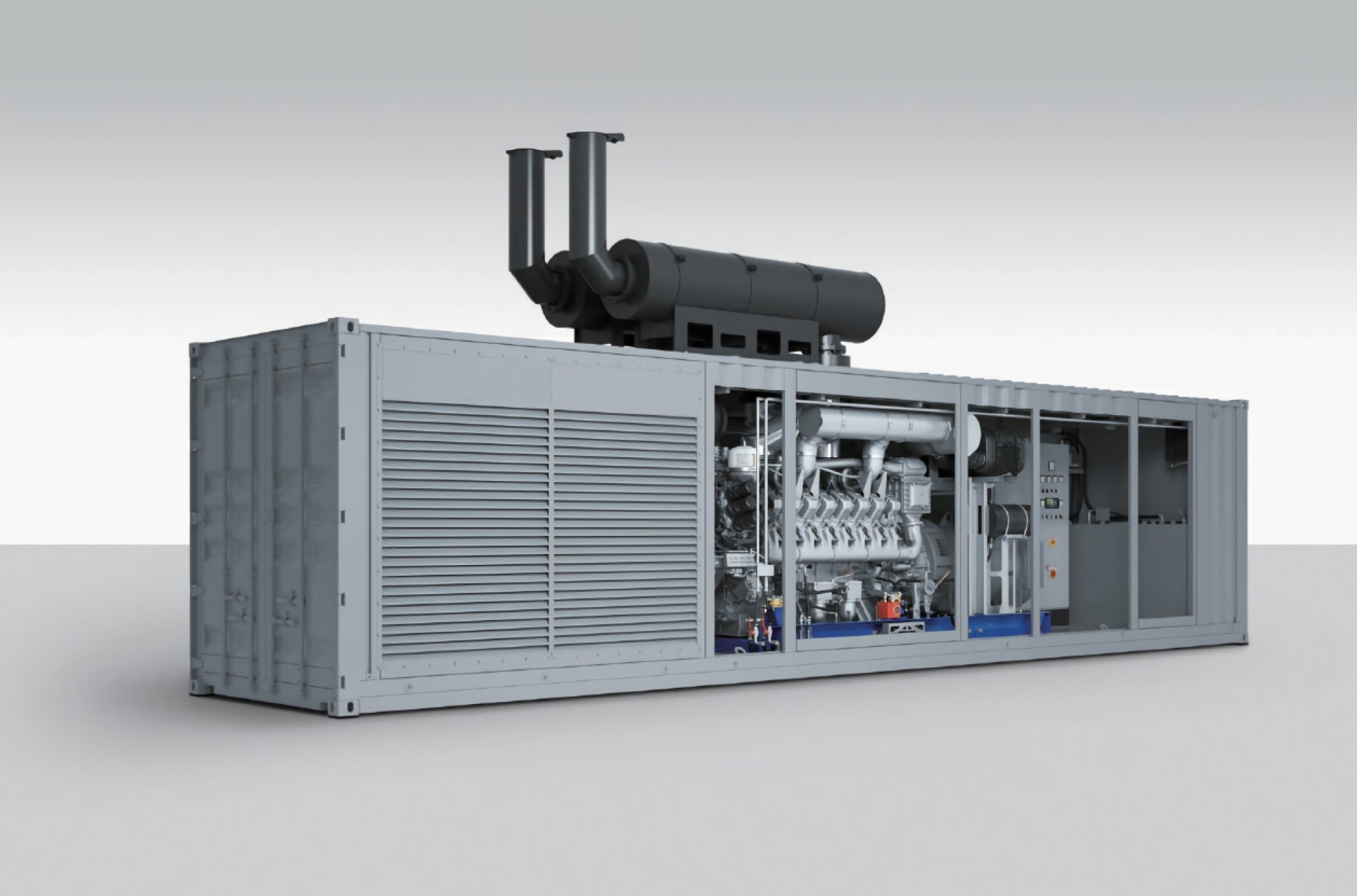

Name: Diesel Generator
SKU: 0

Engineered for continuous and backup power supply, delivering dependable performance and fast spare parts support for industrial, commercial, and remote applications.

Contact our expert

Feature
Brand Model Parameter Table
Standard
Available ENGINE Brand
Available GENERATOR Brand
Specific Model Parameter Table
Industry&Application

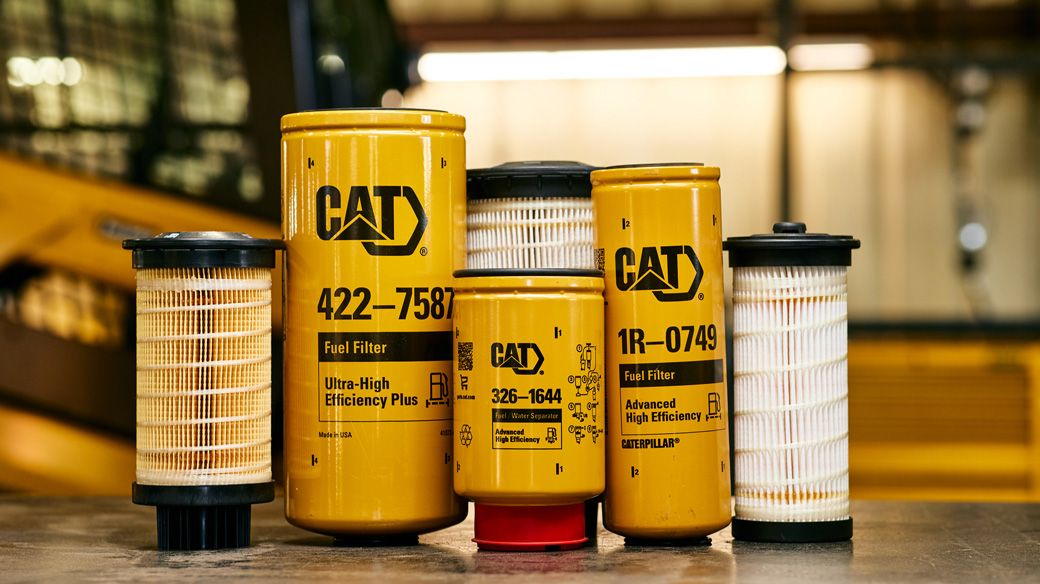

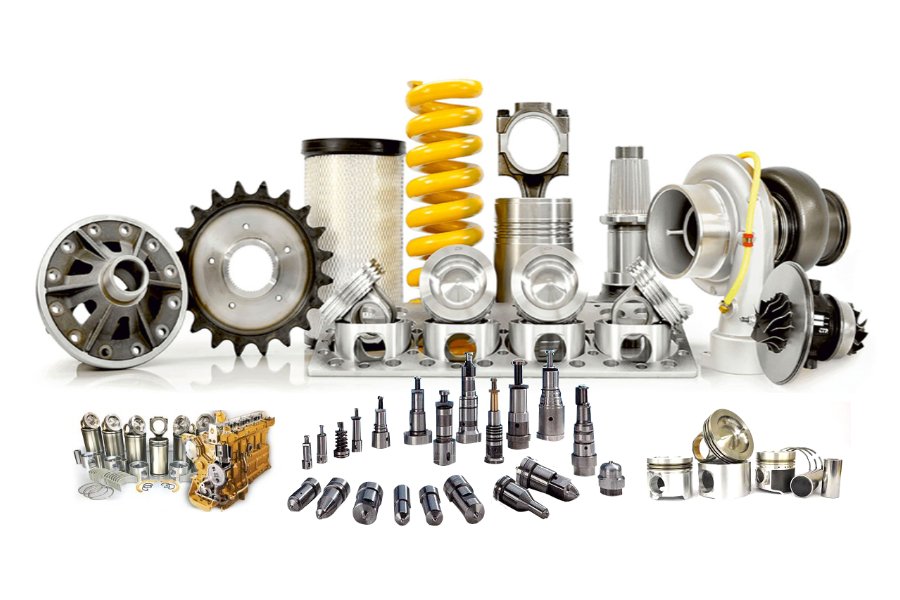

Spare Parts

Feature


Multiple Brand Combinations
Flexible configuration of engine and alternator from leading global brands to match different performance, project, and budget requirements.

International Brands
Equipped with trusted global engine and generator brands ensuring reliability, durability, and long service life.

Explosion-Proof Certified
Designed and certified for safe operation in hazardous and explosive environments such as oil & gas and petrochemical sites.

OEM White Label
Custom branding solutions that allow you to use your own paint, logos, and nameplates on the compressor, enhancing your local presence and brand recognition.

Brand Model Parameter Table

Output

Mounted type

kVA

● Open type

● Silent type (with canopy)

● Portable type (with wheels)

8.5 - 2,500

6.8 - 2,000

Standard

Available ENGINE Brand

Available GENERATOR Brand

Specific Model Parameter Table

Cummins DCEC Series Technical Parameters



Model	Output			Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
Model	KVA	KW	A	Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
DT-C20 DT-C22E	20 22	16 17.6	28.9 32	5.7 6.3	4B3.9-G1	4	3.9	1650×750×1360	793
DT-C25 DT-C27.5E	25 27.5	20 22	36 40	6.7 7.5	4B3.9-G1	4	3.9	1650×750×1360	807
DT-C30 DT-C33E	30 33	24 26.4	43 48	7.8 8.3	4BT3.9-G1	4	3.9	1650×750×1360	893
DT-C35 DT-C38E	35 40	28 30	51 55	8.6 9.5	4BT3.9-G1	4	3.9	1765×750×1360	917
DT-C38 DT-C42E	38 42	30 34	55 60	9.3 10.3	4BT3.9-G1	4	3.9	1720×750×1360	917
DT-C50 DT-C55E	50 55	40 44	72 79	11.8 13.3	4BTA3.9-G2	4	3.9	1750×750×1410	1094
DT-C55 DT-C60E	55 60	50 55	78 87	13.1 14.7	4BTA3.9-G2	4	3.9	1850×750×1410	1114
DT-C70 DT-C77E	70 77	56 62	101 111	18 19.5	6BT5.9-G1*	6	5.9	2020×800×1410	1338
DT-C80 DT-C88E	80 88	64 70.4	115 127	20 23	6BT5.9-G1*	6	5.9	2210×800×149	1358
DT-C90 DT-C100E	90 100	72 80	130 144	22 25	6BT5.9-G1*	6	5.9	2100×800×1565	1378
DT-C100 DT-C110E	100 110	80 88	144 159	20 23	6BTA5.9-G2	6	5.9	2100×800×1520	1409
DT-C110 DT-C125E	110 125	88 100	159 180	27 30	6BTA5.9-G2	6	5.9	2100×800×1520	1429
DT-C125 DT-C150E	125 150	100 120	180 217	30 34	6BTAA5.9-G2	6	5.9	2350×800×1580	1645
DT-C160 DT-C170E	160 170	128 136	231 245	35 39.5	6CTA8.3-G2	6	8.3	2350×800×1640	1738
DT-C180 DT-C200E	180 200	144 160	262 289	40 45	6CTA8.3-G2	6	8.3	2415× 910×1675	1708
DT-C200 DT-C220E	200 220	160 176	289 318	45.4 51.4	6CTAA8.3-G2	6	8.3	2500×945×1690	1840
DT-C250 DT-C275E	250 275	200 220	361 397	53 58	6LTAA8.9-G2	6	8.9	2575×945×1800	2030

Cummins CCEC Series Technical Parameters



Model	Output			Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
Model	KVA	KW	A	Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
DT-C225 DT-C250E	225 250	180 200	325 361	40.6 45.2	NT855-GA	6	14	2910×1100×1850	2600
DT-C250 DT-C275E	250 275	200 220	361 397	45.1 52.8	NT855-GA	6	14	2910×1100×1850	2700
DT-C275 DT-C300E	275 300	220 240	397 432	59.2 65.1	NTA855-G1	6	14	3050×1100×1880	2950
DT-C285 DT-C315E	285 315	228 252	411 455	61.3 68.3	NTA855-G1A	6	14	3050×1100×1880	2950
DT-C325 DT-C358E	325 358	260 286	469 517	59.3 65.8	NTA855-G2A	6	14	3050×1100×1880	3000
DT-C350 DT-C390E	350 390	280 312	505 563	64.8 74.0	NTA855-G4	6	14	3170×1100×2000	3100
DT-C365 DT-C420E	365 420	292 336	526 605	85.4 94.0	NTAA855-G7	6	14	3230×1230×2000	3200
DT-C400 DT-C440E	400 440	320 352	577 635	75.2 82.8	NTAA855-G7A	6	14	3230×1265×1970	3350
DT-C450 DT-C500E	450 500	360 400	650 722	86.8 96.0	KTA19-G3	6	18.9	3160×1310×2020	4000
DT-C500 DT-C550E	500 550	400 440	722 794	96.0 105.6	KTA19-G4	6	18.9	3160×1310×2020	4000
DT-C550 DT-C625E	550 625	440 500	794 903	105.6 120.0	KTAA19-G5	6	18.9	3600×1650×2370	4800
DT-C600 DT-C660E	600 660	480 528	867 953	116.3 128.0	KTAA19-G6	6	18.9	3600×1650×2370	4800
DT-C750 DT-C825E	750 825	600 660	1083 1191	150.3 166.0	KTA38-G2	12	37.8	4350×1720×2450	7640
DT-C900 DT-C1000E	900 1000	720 800	1299 1443	169.4 179.0	KTA38-G2A	12	37.8	4350×1720×2450	7880
DT-C1000 DT-C1100E	1000 1100	800 880	1443 1580	190.1 197.6	KTA38-G5	12	37.8	4385×2057×2320	8100
DT-C1000 DT-C1100E	1000 1100	800 880	1443 1580	190.1 197.6	KTA50-G3	16	50.3	4850×2130×2400	10000
DT-C1375 DT-C1650E	1375 1650	1100 1320	1980 2382	277.8 318.3	KTA50-G8	16	50.3	4950×2230×2500	11000
DT-C1500E DT-C1650E	1500 1650	1200 1320	2160 2382	309.0 345.0	KTA50GS8	16	50.3	4950×2230×2500	11000

Cummins Series Technical Parameters



Model	Output			Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
Model	KVA	KW	A	Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
DT-C30 DT-C35E	30 35	24 28	43.2 50.4	8.6	4B3.9-G2	4	3.9	18609001380	750
DT-C45 DT-C50E	45 50	36 40	64.8 72	10.7	4BT3.9-G2	4	3.9	18609001380	805
DT-C60 DT-C75E	70 75	56 60	100.8 108	15.9	4BTA3.9-G2	4	3.9	18609001380	960
DT-C110 DT-C125E	110 125	88 100	158.4 180	29.7	6BT5.9-G2	6	5.9	215010001469	1280
DT-C150 DT-C165E	150 165	120 132	216 237.6	34	6BTAA5.9-G2	6	5.9	229010001475	1340
DT-C200 DT-C220E	200 220	160 176	288 316.8	44	6CTA8.3-G2	6	8.3	233611001650	1780
DT-C225 DT-C250E	225 250	180 200	324 360	49	6CTAA8.3-G2	6	8.3	260012501680	1880
DT-C275 DT-C300E	275 300	220 240	396 432	59	6LTAA8.9-G2	6	8.9	260012501680	1950
DT-C320 DT-C350E	320 350	256 280	460.8 504	74	NTA855-G1	6	14	293014001970	3130
DT-C350 DT-C385E	350 385	280 308	504 554.4	79	NTA855-G1B	6	14	303014001970	3300
DT-C400 DT-C440E	400 440	320 352	576 633.6	87	NTA855-G3	6	14	303014001970	3300
DT-C450 DT-C500E	450 500	360 400	648 720	98	KTA19-G2	6	18.9	340016802050	4050
DT-C520 DT-C575E	520 575	416 460	748.8 828	111	KTA19-G3	6	18.9	340016802050	4050
DT-C580 DT-C635E	580 635	464 508	835.2 914.4	122	KTA19-G4	6	18.9	340016802050	4050
DT-C700 DT-C750E	700 750	560 600	1008 1080	152	KTAA19-G6A	6	18.9	362019202115	4660
DT-C900 DT-C1000E	900 1000	720 800	1296 1440	204	KTA38-G2	12	37.8	437020602400	7300
DT-C1050 DT-C1150E	1050 1150	840 920	1512 1656	225	KTA38G-2A	12	37.8	437020602400	7450
DT-C1150 DT-C1260E	1150 1250	920 1000	1656 1800	245	KTA38-G4	12	37.8	437020602160	7860
DT-C1400 DT-C1600E	1400 1600	1120 1280	2016 2304	291	KTA50-G3	16	50.3	491018002250	9400
DT-C1600 DT-C1950E	1600 1950	1280 1560	2304 2808	326	KTA50-G9	16	50.3	577021002530	10670

Perkins Series Technical Parameters



50HZ

60HZ

Model	Output			Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
Model	KVA	KW	A	Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
DT-P8.5 DT-P9E	8.5 9	6.8 7.2	12.3 13	2.6 2.9	403A-11G1	3	1.1	1055×650×1010	305
DT-P12 DT-P13E	12 13	9.6 10.4	17.3 18.7	6.8 7.5	403A-15G1	3	1.5	1140×650×1070	375
DT-P19.5 DT-P21.5E	19.5 21.5	15.6 17.2	27.4 30.3	5.3 6.1	404A-22G	4	2.2	1300×650×1130	500
DT-P30 DT-P33E	30 33	24 26.4	42.3 47.6	7.1 7.9	1103A-33G	3	3.3	1500×700×1260	750
DT-P40 DT-P44E	40 44	32 35	57.7 63.5	10.7 12	1103A-33TG1	3	3.3	1600×760×1310	800
DT-P45 DT-P50E	45 50	36 40	64.9 72.2	10.7 12	1103A-33TG1	3	3.3	1600×760×1310	850
DT-P60 DT-P63E	60 63	48 50	86.6 90.9	13.9 15.4	1103A-33TG2	3	3.3	1660×760×1310	870
DT-P80 DT-P88E	80 88	64 70	115.4 127	18.7 20.5	1104A-44TG2	4	4.4	1820×760×1310	1150
DT-P100 DT-P110E	100 110	80 88	144.6 158.7	22.6 24.9	1104C-44TAG2	4	4.4	1850×850×1370	1250
DT-P135 DT-P150E	135 150	108 120	194.8 216.5	30.28 33.8	1106A-70TAG1	6	6	2300×700×1460	1400
DT-P150 DT-P165E	150 165	120 132	216.5 238	33.4 36.1	1106A-70TAG2	6	6	2300×900×1470	1450
DT-P200 DT-P220E	200 220	160 176	288.6 317.5	50 54	1306A-E87TAG4*	6	8.7	2530×950×1800	1970
DT-P230 DT-P250E	230 250	184 200	331.9 360.8	50 54	1306A-E87TAG4*	6	8.7	2580×950×1800	2100
DT-P250 DT-P275E	250 275	200 220	331.9 396.8	45 49.7	1306A-E87TAG6*	6	8.7	2580×950×1800	2150
DT-P350 DT-P400E	350 400	280 320	505.1 577.2	71 80	2206C-E13TAG2*	6	12.5	3190×1120×2085	3200
DT-P400 DT-P450E	400 450	320 360	577.2 649.4	81 90	2206C-E13TAG3*	6	12.5	3190×1120×2085	3300
DT-P450 DT-P500E	450 500	360 400	649.4 721.5	99 109	2506C-E15TAG1*	6	15.2	3460×1120×2085	3700
DT-P500 DT-P550E	500 550	400 440	721.5 793.7	106 114	2506C-E15TAG2*	6	15.2	3460×1120×2085	3760
DT-P600 DT-P660E	600 660	480 528	865.8 952.4	123 134	2806-E18TAG1A*	6	18.1	3310×1536×2140	4600
DT-P660 DT-P715E	660 715	528 572	952.4 1031 .7	132 143	2806A-E18TAG2*	6	18.1	3310×1536×2140	4800
DT-P720 DT-P790E	720 790	576 632	1038.9 1140	161 176	4006-23TAG2A	6	23	4000×1710×2210	5920
DT-P800 DT-P880E	800 880	640 704	1154.4 1269.8	172 194	4006-23TAG3A	6	23	4000×1710×2210	6000
DT-P1000 DT-P1100E	1000 1100	800 880	1443 1584	220 248	4008TAG2A	8	30.6	4680×2050×2400	8000
DT-P1250 DT-P1375E	1250 1375	1000 1100	1803.9 1984.1	259 288	4012-46TWG2A	12	45.8	4770×2100×2380	10000
DT-P1500 DT-P1650E	1500 1650	1200 1320	2164.5 2381	301 335	4012-46TAG2A	12	45.8	4930×2200×2410	10200
DT-P1700 DT-P1890E	1700 1890	1360 1512	2453.1 2727.3	370 405	4012-46TAG3A	12	45.8	5040×2200×2715	12500
DT-P1825 DT-P2000E	1825 2000	1460 1600	2633.5 2886	389 430	4016TAG1A	16	61.1	5600×2792×3150	13500
DT-P2000 DT-P2250E	2000 2250	1600 1800	2886 3246.8	447 488	4016TAG2A	16	61.1	5720×2792×3150	14000
DT-P2250 DT-P2500E	2250 2500	1800 2000	3247 3608	473 528	4016-61TRG3	16	61.123	5720×2792×3150	15700

Model	Output			Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
Model	KVA	KW	A	Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
DT-P11 DT-P13E	11 13	8.8 10.4	15.84 18.72	3.1	403D-11G	3	1.1	1400760920	307
DT-P16 DT-P18E	16 18	12.8 14.4	23.04 25.92	4.3	403D-15G	3	1.5	1400760980	385
DT-P24 DT-P26E	24 26	19.2 20.8	34.56 37.44	6.2	404D-22G	4	2.2	15009001150	655
DT-P35 DT-P40E	35 40	28 32	50.4 57.6	8.6	1103A-33G	3	3.3	17509001120	750
DT-P50 DT-P60E	50 60	40 48	72 86.4	12.9	1103A-33TG1	3	3.3	17509001120	800
DT-P70 DT-P80E	70 80	56 64	100.8 115.2	16.6	1103A-33TG2	3	3.3	17509001120	830
DT-P75 DT-P85E	75 85	60 68	108 122.4	17.8	1104A-44TG1	4	4.4	18609001250	970
DT-P90 DT-P100E	90 100	72 80	129.6 144	22.3	1104A-44TG2	4	4.4	18609001250	1015
DT-P110 DT-P125E	110 125	88 100	158.4 180	26.9	1104C-44TAG2	4	4.4	215010001360	1090
DT-P155 DT-P170E	155 170	124 136	223.2 244.8	35.22	1106A-70TG1	6	6	230011001500	1590
DT-P200 DT-P220E	200 220	160 176	288 316.8	46.4	1106A-70TAG3	6	6	230011001650	1780
DT-P230 DT-P255E	230 250	184 200	331.2 360	54	1506A-E88TAG1	6	8.8	260012501180	2130
DT-P250 DT-P275E	250 275	200 220	360 396	56	1506A-E88TAG2	6	8.8	260012501180	2250
DT-P400 DT-P440E	400 440	320 352	576 633.6	84	2206C-E13TAG2	6	12.5	310014002000	3290
DT-P500 DT-P550E	500 550	400 440	720 792	100	2506C-E15TAG1	6	15.2	340014202180	3900
DT-P550 DT-P625E	550 625	440 500	792 900	121	2506C-E15TAG3	6	15.2	340014202180	4030
DT-P625 DT-P700E	625 700	500 560	900 1008	130	2806A-E18TAG1A	6	18.1	358017002180	4750
DT-P680 DT-P750E	680 750	544 600	979.2 1080	145	2806A-E18TAG3	6	18.1	358017002180	4900
DT-P800 DT-P900E	800 900	640 720	1152 1296	200	4006-23TAG3A	6	23	40502000*2200	5740
DT-P1000 DT-P1100E	1000 1100	800 880	1440 1584	224	4008TAG2	8	30.6	485020602450	8040
DT-P1250 DT-P1400E	1250 1400	1000 1120	1800 2016	266	4012-46TWG2A	12	45.8	475018602330	8100
DT-P1500 DT-P1650E	1500 1650	1200 1320	2160 2376	315	4012-46TAG2A	12	45.8	506022002400	9300
DT-P1700 DT-P1880E	1700 1880	1360 1504	2448 2707.2	356	4012-46TAG3A	12	45.8	519022002750	9300

Volvo Series Technical Parameters



Model	Output			Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
Model	KVA	KW	A	Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
DT-V80 DT-V90E	80 90	64 72	115 130	16 18	TAD530GE	4	4.76	2020×850×1540	1290
DT-V100 DT-V110E	100 110	80 88	144 159	19 21	TAD531GE	4	4.76	2050×875×1605	1350
DT-V115 DT-V125E	115 125	92 100	166 180	22 25	TAD532GE	4	4.76	2200×875×1640	1370
DT-V125 DT-V140E	125 140	100 112	180 202	25 28	TAD532GE	4	4.76	2200×875×1640	1420
DT-V150 DT-V165E	150 165	120 132	217 238	28 31	TAD731GE	6	7.15	2550×1000×1725	1750
DT-V190 DT-V205E	190 205	152 164	274 296	36 38	TAD732GE	6	7.15	2590×1000×1725	1820
DT-V200 DT-V220E	200 220	160 176	288 317	39 43	TAD733GE	6	7.15	2590×1000×1725	1820
DT-V250 DT-V275E	250 275	200 220	360 397	47 52	TAD734GE*	6	7.15	2645×1000×1725	2000
DT-V315 DT-V345E	315 345	252 276	455 498	59 64	TAD1341GE*	6	12.78	3100×1100×1800	3300
DT-V350 DT-V385E	350 385	280 308	505 556	65 69	TAD1342GE*	6	12.78	3100×1100×1800	3300
DT-V375 DT-V410E	375 410	300 328	540 590	70 79	TAD1343GE*	6	12.78	3100×1100×1800	3450
DT-V410 DT-V450E	410 450	328 360	592 650	79 87	TAD1344GE*	6	12.78	3100×1100×1800	3450
DT-V450 DT-V500E	450 500	360 400	650 722	91 101	TAD1345GE*	6	12.78	3130×1100×1800	3550
DT-V500 DT-V550E	500 550	400 440	722 794	101 108	TAD1641GE*	6	16.12	3300×1160×2050	3900
DT-V570 DT-V625E	570 625	456 500	823 902	110 120	TAD1642GE*	6	16.12	3300×1160×2050	4050
DT-V635 DT-V700E	635 700	508 560	916 1010	121 133	TWD1643GE*	6	16.12	3405×1400×2080	4500

MTU Series Technical Parameters



Model	Output			Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
Model	KVA	KW	A	Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
DT-M600 DT-M660E	600 660	480 528	866 953	125 139	S6R-PTA	6	24.5	3560×1420×2020	4750
DT-M650 DT-M750E	650 750	520 600	938 1083	138 158	S6R2-PTA	6	30	3560×1420×2020	5000
DT-M750 DT-M825E	750 825	600 660	1083 1191	163 179	S6R2-PTAA	6	30	4080×1715×1985	5350
DT-M765 DT-M850E	765 850	612 680	1104 1226	166 179	S12A2-PTA	12	33.9	4050×1600×2120	6420
DT-M910 DT-M1000E	910 1000	728 800	1313 1443	177 214	S12H-PTA	12	37.1	4400×1756×2440	8000
DT-M1050 DT-M1160E	1050 1160	840 928	1516 1674	204 248	S12H-PTA	12	37.1	4400×1756×2440	8300
DT-M1275 DT-M1425E	1275 1425	1020 1140	1840 2057	246 297	S12R-PTA	12	49	4515×2200×2510	10000
DT-M1375 DT-M1530E	1375 1530	1100 1224	1985 2208	274 336	S12R-PTA2	12	49	4515×2200×2510	10500
DT-M1500 DT-M1650E	1500 1650	1200 1320	2165 2382	290 350	S12R-PTAA2	12	49	4920×2192×2810	12000
DT-M1735 DT-M1900E	1735 1900	1388 1520	2504 2742	333 400	S16R-PTA	16	65.4	5470×2200×2810	13800
DT-M1906 DT-M2100E	1906 2100	1525 1680	2751 3031	380 460	S16R-PTA2	16	65.4	5440×2200×2810	14100
DT-M2000 DT-M2250E	2000 2250	1600 1800	2887 3248	420 472	S16R-PTAA2	16	65.4	5700×2392×2810	14500
DT-M2250 DT-M2500E	2250 2500	1800 2000	3247 3608	473 525	S16R2-PTAW	16	79.9	6075×2200×2566	16500

Mitsubishi Series Technical Parameters



Model	Output			Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
Model	KVA	KW	A	Consumption Diesel(l/hr)	Engine	Cylinders	Vol (L)	Dimension(mm) (LWH)	Weight (KG)
DT-M600 DT-M660E	600 660	480 528	866 953	125 139	S6R-PTA	6	24.51	3560×1420×2020	4750
DT-M650 DT-M750E	650 750	520 600	938 1083	138 158	S6R2-PTA	6	29.96	3560×1420×2020	5000
DT-M750 DT-M825E	750 825	600 660	1083 1191	163 179	S6R2-PTAA	6	29.96	4080×1715×1985	5350
DT-M765 DT-M850E	765 850	612 680	1104 1226	166 179	S12A2-PTA	12	33.93	4050×1600×2120	6420
DT-M910 DT-M1000E	910 1000	728 800	1313 1443	177 214	S12H-PTA	12	37.11	4400×1756×2440	8000
DT-M1050 DT-M1160E	1050 1160	840 928	1516 1674	204 248	S12H-PTA	12	37.11	4400×1756×2440	8300
DT-M1275 DT-M1425E	1275 1425	1020 1140	1840 2057	246 297	S12R-PTA	12	49.03	4515×2200×2510	10000
DT-M1375 DT-M1530E	1375 1530	1100 1224	1985 2208	274 336	S12R-PTA2	12	49.03	4515×2200×2510	10500
DT-M1500 DT-M1650E	1500 1650	1200 1320	2165 2382	290 350	S12R-PTAA2	12	49.03	4920×2192×2810	12000
DT-M1735 DT-M1900E	1735 1900	1388 1520	2504 2742	333 400	S16R-PTA	16	65.37	5470×2200×2810	13800
DT-M1906 DT-M2100E	1906 2100	1525 1680	2751 3031	380 460	S16R-PTA2	16	65.37	5440×2200×2810	14100
DT-M2000 DT-M2250E	2000 2250	1600 1800	2887 3248	420 472	S16R-PTAA2	16	65.37	5700×2392×2810	14500
DT-M2250 DT-M2500E	2250 2500	1800 2000	3247 3608	473 525	S16R2-PTAW	16	79.9	6075×2200×2566	16500

DDEC Series Technical Parameters



Model	Output			Consumption Diesel(l/hr)	Engine	Cylinders	Vol L	Dimension(mm) (LWH)	Weight KG
Model	KVA	KW	A	Consumption Diesel(l/hr)	Engine	Cylinders	Vol L	Dimension(mm) (LWH)	Weight KG
DT-S60	60	48	86.4	195	SC4H95D2	4L	4.3	19808001250	950
DT-S88	90	72	129.6	195	SC4H115D2	4L	4.3	19808001250	1000
DT-S124	125	100	180	195	SC4H160D2	4L	4.3	20009301250	1100
DT-S150	150	120	216	195	SC4H180D2	4L	4.3	21009301250	1350
DT-S180	180	144	259.2	195	SC7H230D2	6L	6.5	24409801500	1700
DT-S215	215	172	309.6	195	SC7H250D2	6L	6.5	25409801550	1800
DT-S225	225	180	324	200	SC8D280D2	6L	8.3	254010801550	1800
DT-S250	250	200	360	200	SC9D310D2	6L	8.9	254010801550	1850
DT-S275	275	220	396	198	SC9D340D2	6L	8.9	303012001700	2500
DT-S315	315	252	453.6	205	SC13G355D2	6L	12.88	303012001700	2550
DT-S315	315	252	453.6	225	SC13G420D2	6L	12.88	303012001700	2550
DT-S375	375	300	540	192	SC12E460D2	6L	11.8	313012001700	2650
DT-S400	400	320	576	205	SC15G500D2	6L	14.2	313013501700	2700
DT-S435	435	348	626.4	205	SC15G500D2	6L	14.2	323013501700	2800
DT-S500	500	400	720	205	SC25G610D2	12V	25.8	363015202050	3900
DT-S565	565	452	813.6	205	SC25G690D2	12V	25.8	363015202050	4000
DT-S625	625	500	900	205	SC27G755D2	12V	26.6	363015202150	4200
DT-S685	685	548	986.4	205	SC27G830D2	12V	26.6	373015202150	4300
DT-S750	750	600	1080	205	SC27G900D2	12V	26.6	372015202250	4450
DT-S825	825	660	1188	205	SC33W990D2	6L	32.8	436016202160	6500
DT-S1000	1000	800	1440	205	SC33W1150D2	6L	32.8	440017202180	6630

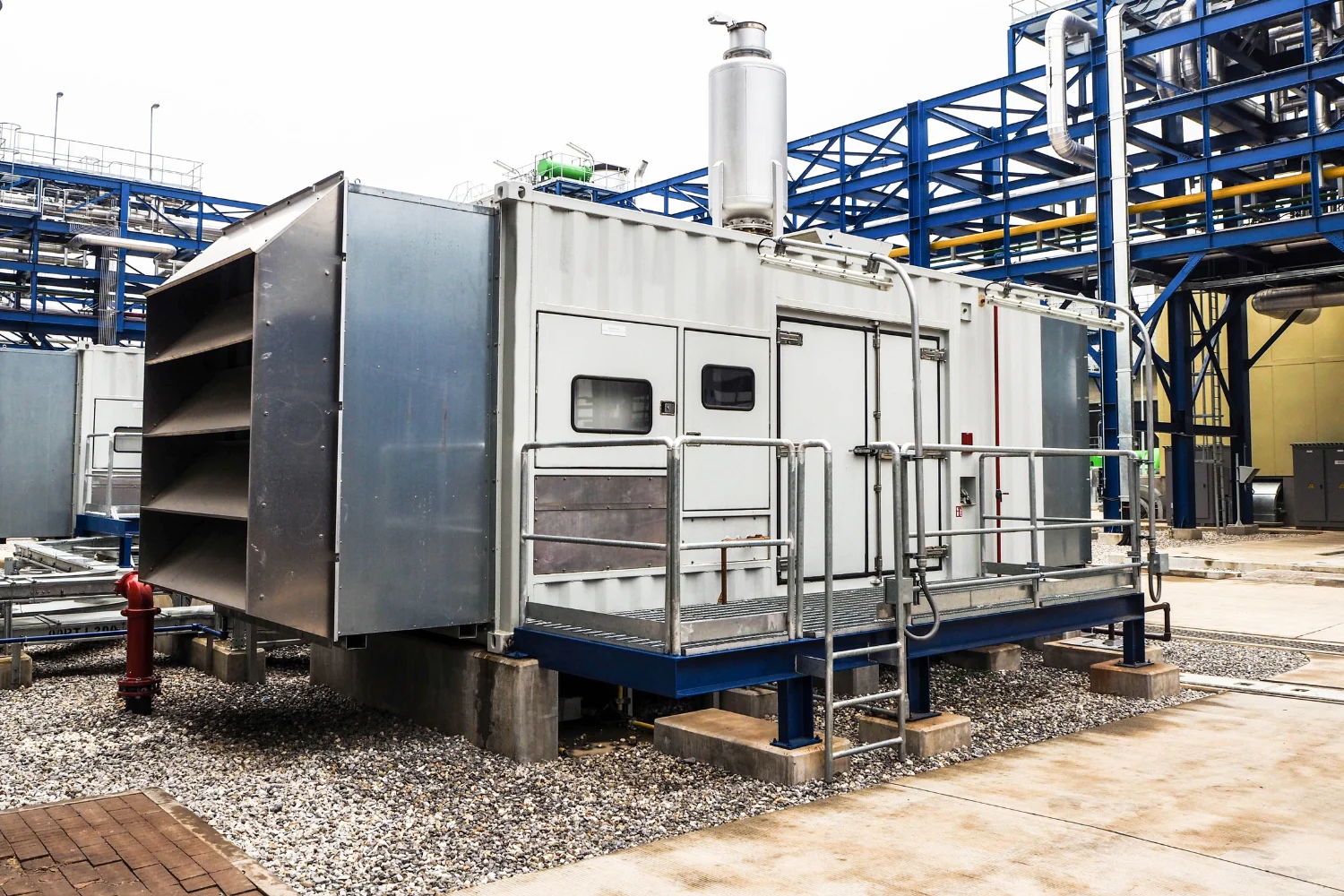

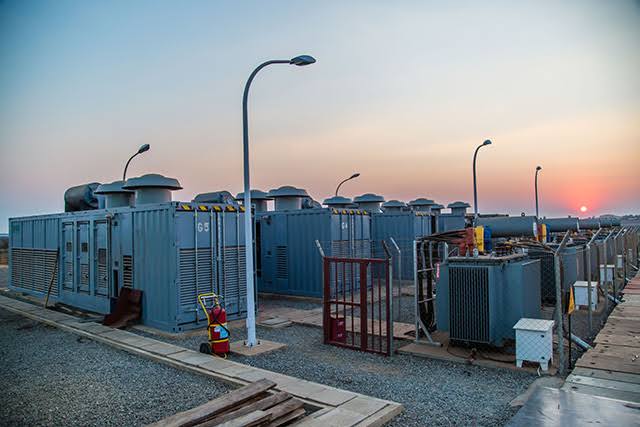

Containerized Solution



Container Type	Dimension(mm) (LWH)	Container Weight (kg)	Engine	dB(A) @50HZ@7M
20’ (20GP)	605824382591	3600	Cummins 730-1250kVA Perkins 665-895kVA	80
20’ (20HQ)	605824382896	4000	Cummins 1400-1650kVA Perkins 1000-1650kVA	80
30’ (30GP)	912524382591	6000	Cummins 730-1250kVA Perkins 665-895kVA	75
30’ (30HQ)	912524382896	6600	Cummins 1400-1650kVA Perkins 1000-1650kVA	75
40’ (40GP)	1219224382591	7000	Cummins 1710-2250kVA Perkins 1000-1700kVA	80
40’ (40HQ)	1219224382896	8000	Cummins 2500kVA Perkins 1890-2500kVA	80

Industry & Application

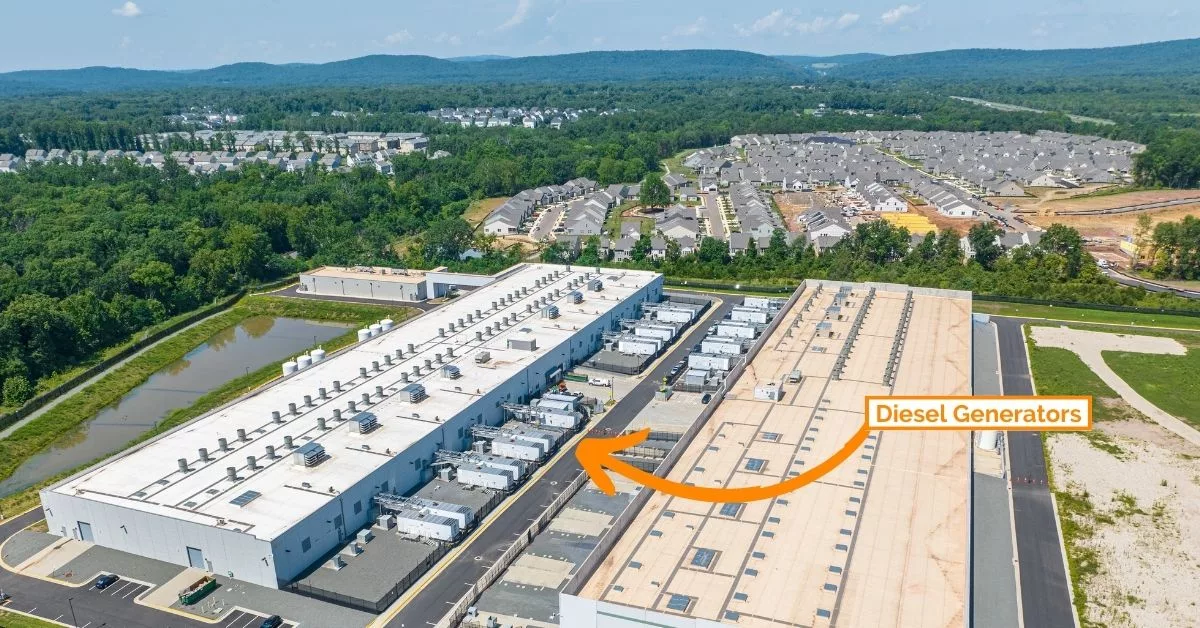

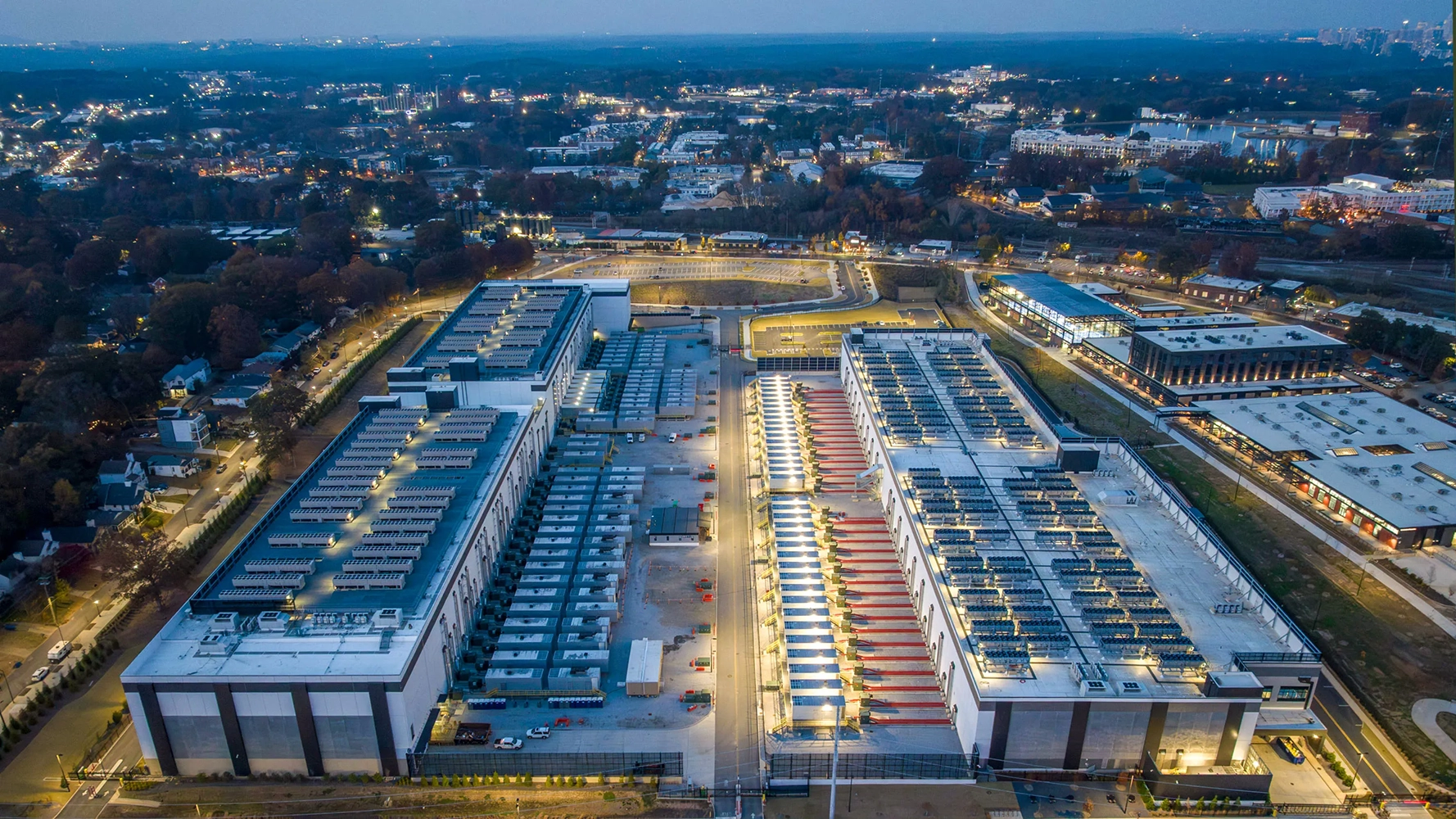

Data Centers

Diesel generators for emergency backup power, grid failure response, peak shaving, and mission-critical IT load support to ensure uninterrupted operation of servers, storage systems, and network equipment, protect against data loss and hardware damage, comply with Tier III/IV availability requirements, and provide reliable standby power during utility outages or maintenance events.

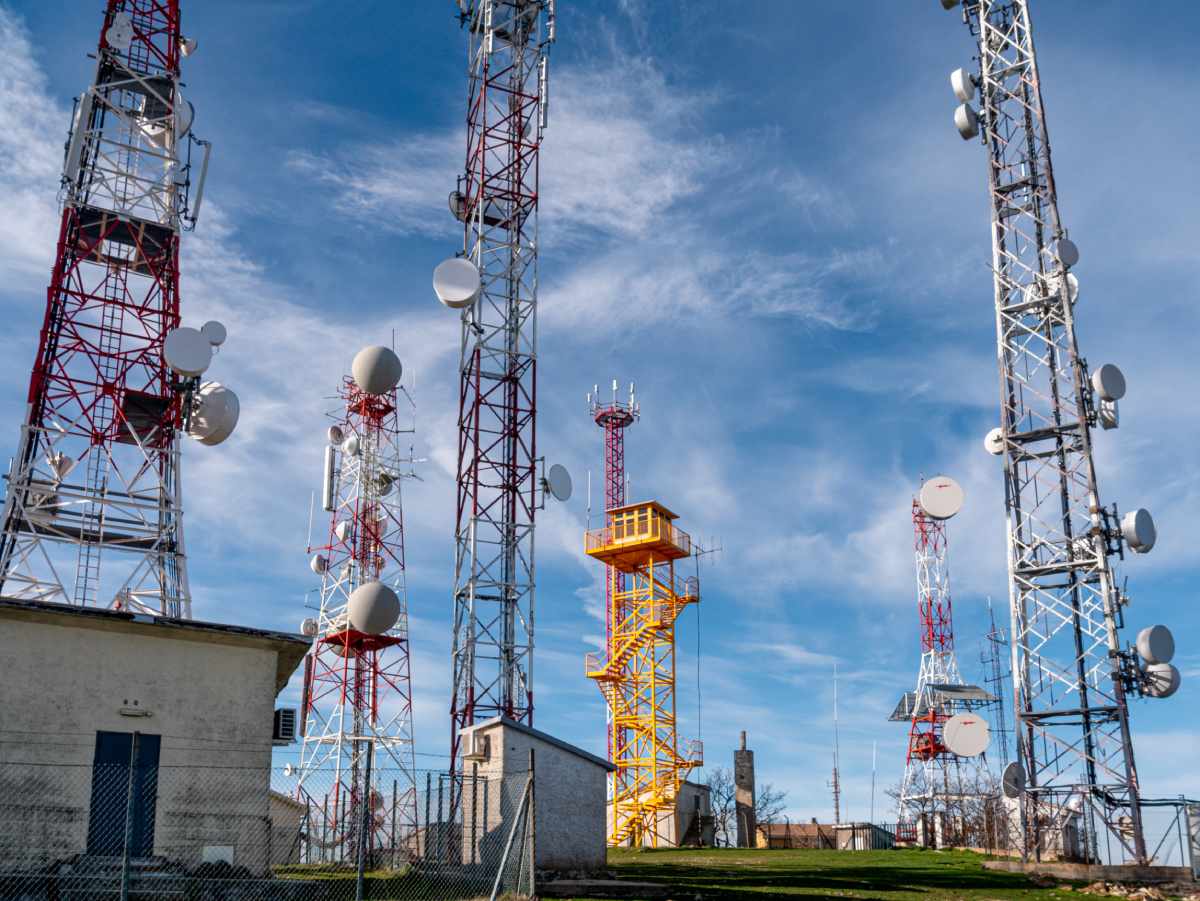

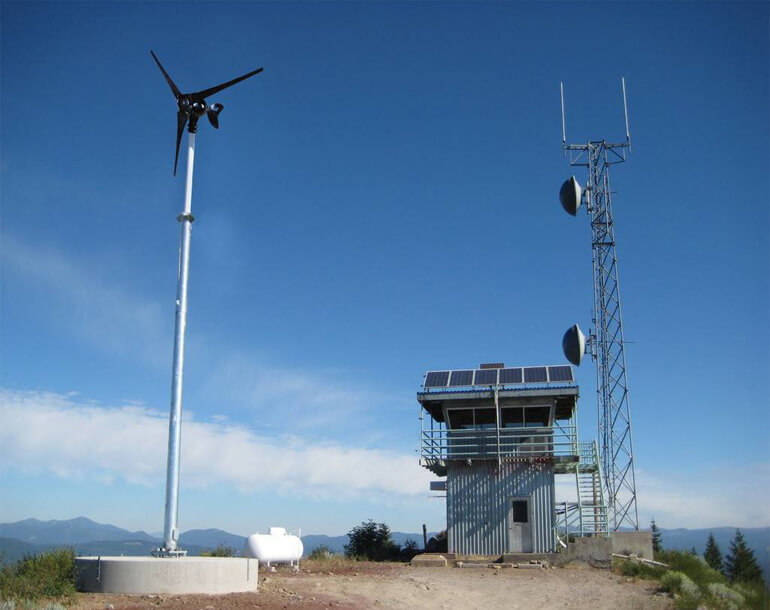

Telecommunications

Diesel generators for base station backup, mobile switching center support, fiber-optic relay station power, and off-grid tower operation to maintain continuous network connectivity, prevent service blackouts in remote or unstable grid areas, and enable rapid automatic start-up and load acceptance for critical communication infrastructure.

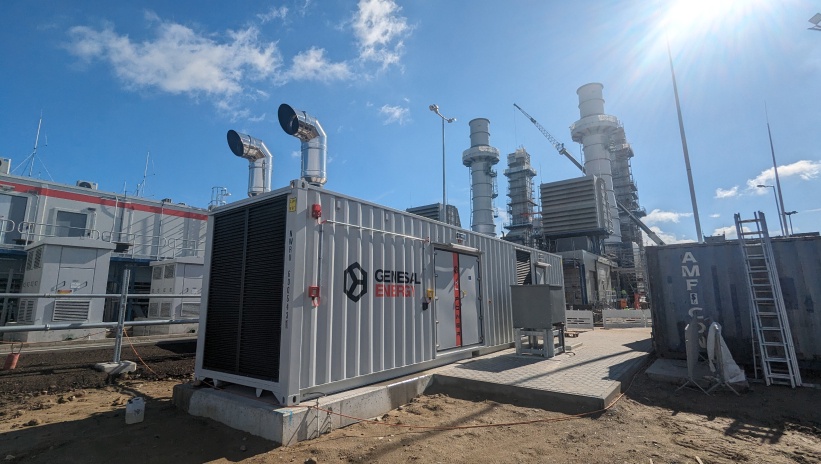

Industrial Manufacturing

Diesel generators for prime power in off-grid plants, standby power for continuous production lines, emergency backup for process control systems, and peak-load shedding support to prevent costly downtime, protect sensitive manufacturing equipment, and ensure stable operation across metalworking, chemical, petrochemical, and heavy engineering facilities where grid reliability is limited.

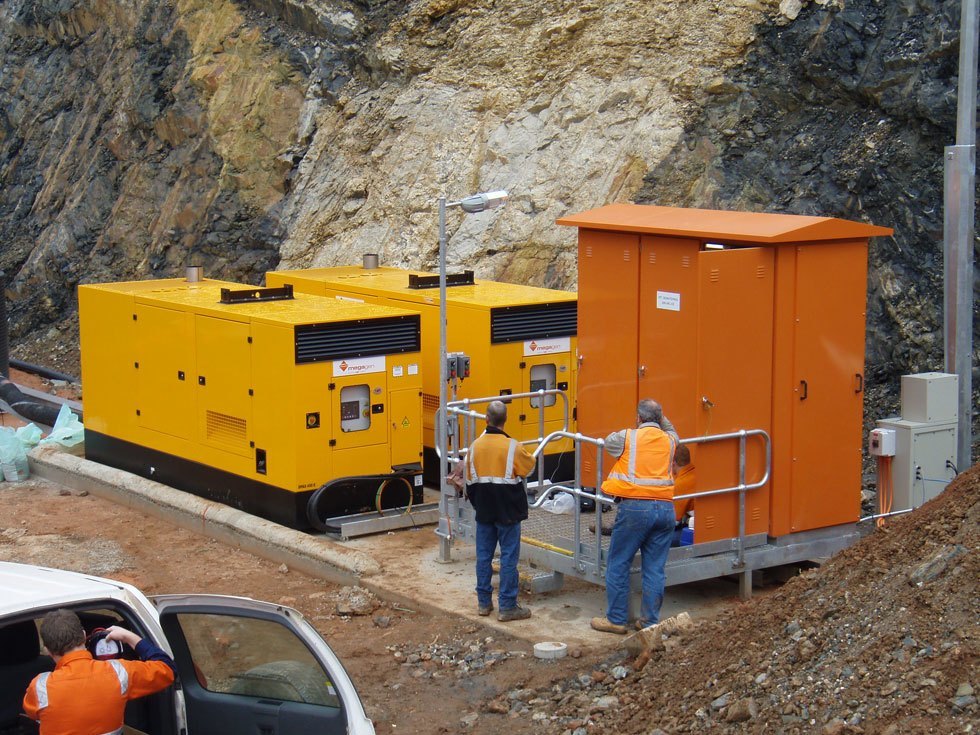

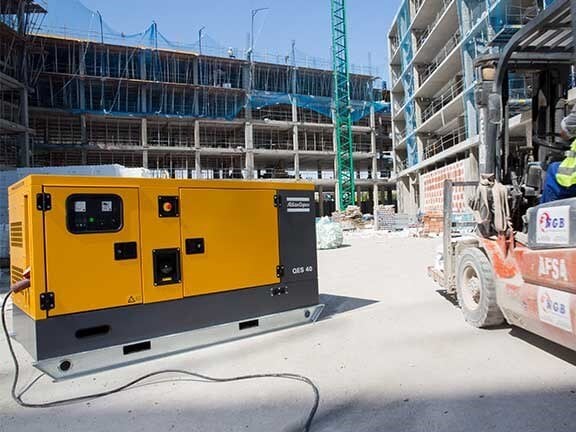

Construction & Mining

Diesel generators for on-site power supply to heavy machinery (excavators, crushers, conveyors), lighting, dewatering pumps, ventilation fans, and workshop tools in remote construction sites, open-pit mines, and underground operations, to overcome lack of grid access, withstand harsh environmental conditions (dust, vibration, extreme temperatures), and deliver rugged, portable, and high-power density solutions for temporary or expanding project needs.

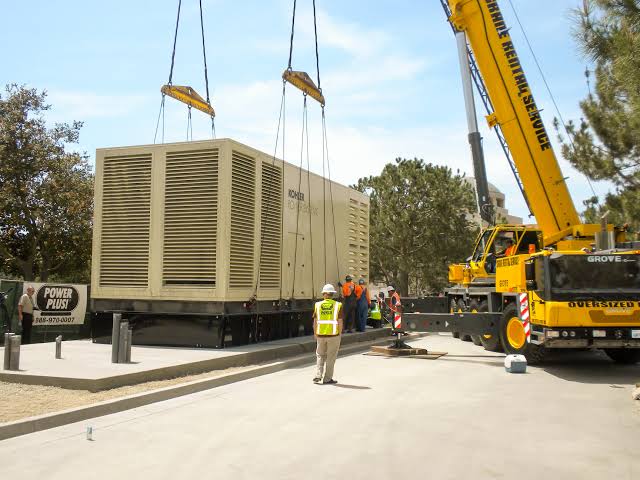

Critical Infrastructure & Commercial

Diesel generators for emergency power in hospitals, airports, railway stations, financial institutions, military installations, water treatment plants, and large commercial buildings (shopping malls, hotels, office towers), to support life-safety systems, medical equipment, security systems, HVAC, lighting, and elevators during blackouts, comply with regulatory backup requirements, and provide rapid start and seamless transfer for essential public and private services.

Spare Parts



fredsonliu@hotmail.com

Reliable PowerAnytimeAnywhere

Reliable Power
Anytime
Anywhere
