Reliable Vacuum Solutions for Industrial Processes

Engineered to deliver stable and efficient vacuum performance, supporting a wide range of industrial, processing, and energy applications with high reliability and low operating cost.
Contact our expert
Vacuum Pump
Contact us

Feature

  • Atlas Original
    Genuine Atlas Copco components ensuring reliability, durability, and long service life.
  • OEM White Label
    Custom branding solutions that allow you to use your own paint, logos, and nameplates on the compressor, enhancing your local presence and brand recognition.
  • Customized Solutions
    Tailor-made configurations to meet specific industry or project requirements.
  • High Vacuum Performance
    Achieves ultra-high vacuum levels up to 5 × 10⁻² Pa, suitable for demanding industrial and laboratory applications.

Brand Model Parameter Table

Vacuum Pumps

Standard & Customized

Brand

Series

Type

Ultimate Vacuum

Capacity

logo



LGB

Dry screw

<0.1 mbar

100 – 1,800 m³/h

ZJ

Roots (Mechanical booster)

5x10-4 mbar

50 – 36,000 m³/h

ZJQ/ZJN

Roots (Mechanical booster)

5x10-4 mbar

50 – 36,000 m³/h

2BV

LRP & LR compressor

33 mbar

27 – 500 m3/h

2BE1/2BE3

LRP & LR compressor

33/160 mbar

300 – 38100 m3/h

Vacuum solutions

Customized

Brand

Series

Type

Ref Photo

Capacity

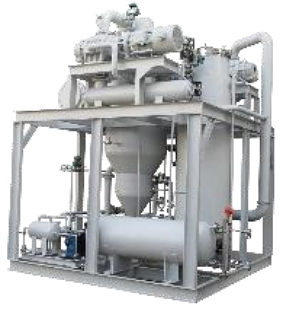

MVR

MVR




20 – 20,000 kg/h

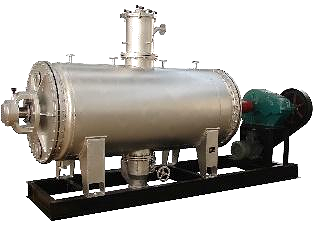

ZGP

Harrow vacuum dryer




50 – 36,000 m³/h

/

Dry vacuum system




50 – 36,000 m³/h

JZJ2B/L

Roots vacuum system




15 – 30000 L/s

(0.5/25/267)x104 Pa

2BW

LRP vacuum system


300 – 38100 m3

/h

Specific Model Parameter Table

2BV
2BE1-1
2BE1-2
ZJ
ZJQ
LGB

2BV series liquid ring vacuum pumps and compressors

ref Model Max Capacity Ultimate Vacuum Power Motor Explosion Protection Class Motor Protection Class Pump Speed Working Liquid Flow Rate Noise Level Weight
m3/min m3/h mbar(MPa) kw r/min L/min dB(A) kg
60V 2BV2 060 0.45 27 33mbar
(-0.098MPa)		 1.1 Non explosion proof IP54 2840 2 62 31
61V 2BV2 061 0.86 52 1.5 2840 2 65 35
70V 2BV2 070 1.33 80 3 2860 2.5 65 56
71V 2BV2 071 1.83 110 4 2880 4.2 72 65
60V 2BV2 060-Ex 0.45 27 1.1 dIBT4 IP55 2840 2 62 39
61V 2BV2 061-Ex 0.86 52 1.5 2840 2 65 45
70V 2BV2 070-Ex 1.33 80 3 2860 2.5 66 66
71V 2BV2 071-Ex 1.83 110 4 2880 4.2 72 77
110V 2BV5 110 2.75 165 4 Non explosion proof IP54 1440 6.7 63 103
111V 2BV5 111 3.83 230 5.5 1440 8.3 68 117
121V 2BV5 121 4.66 280 7.5 1440 10 69 149
131V 2BV5 131 6.66 400 11 1460 15 73 205
161V 2BV5 161 8.33 500 15 970 20 74 331
110V 2BV6 110 2.75 165 4 dIBT4 IP55 1440 6.7 63 153
111V 2BV6 111 3.83 230 5.5 1440 8.3 68 208
121V 2BV6 121 4.66 280 7.5 1440 10 69 240
131V 2BV6 131 6.66 400 11 1460 15 73 320
161V 2BV6 161 8.33 500 15 970 20 74 446

2BE1 series liquid ring vacuum pumps and compressors

Model Pump Speed
(Driven Mode)		 Max. Shaft Power Motor Power Motor Type Ultimate Vacuum Max. Capacity Weight
r/min kw kw 380V mbar m3/min m3/h kg
2BE1 151-0 1450 (direct) 10.8 15 Y180M-4 33 6.8 405 469
1100 (belt) 7.2 11 Y160L-4 5 300 428
1300 (belt) 9.2 11 Y160M-4 6 360 444
1625  (belt) 13.2 15 Y160L-4 74 445 469
1750 (belt) 14.8 18.5 Y180M-4 7.8 470 503
2BE1 152-0 1450  (direct) 12.5 15 Y180L-4 33 7.8 465 481
1100 (belt) 8.3 11 Y180MM-4 5.7 340 437
1300 (belt) 10.5 15 Y160L-4 6.9 415 481
1625  (belt) 15 18.5 Y180M-4 8.5 510 515
1750  (belt) 17.2 22 Y160L.4 8.9 535 533
2BE1 153-0 1450  (direct) 16.3 18.5 Y160M-4 33 10 600 533
1100 (belt) 10.6 15 Y160M-4 7.4 445 480
1300 (belt) 13.6 18.5 Y160L-4 9 540 533
1625  (belt) 19.6 22 Y180L-4 11 660 551
1750  (belt) 22.3 30 Y200L-4 11.7 700 601
2BE1 202-0 970 (direct) 17 22 Y200L2-6 33 12.7 760 875
790 (belt) 14 18.5 Y180M-4 9.8 590 850
880 (belt) 16 18.5 Y180M-4 11.2 670 850
1100  (belt) 22 30 Y200L4 14.2 850 940
1170  (belt) 25 30 Y200L4 14.8 890 945
1300 (belt) 30 37 Y225S-4 15.8 950 995
2BE1 203-0 970 (direct) 27 37 Y250M-6 33 18.7 1120 1065
790 (belt) 20 30 Y200L-4 14.7 880 995
880 (belt) 23 30 Y200L4 16.7 1000 995
1100 (belt) 33 45 Y225M-4 21.2 1270 1080
1170  (belt) 37 45 Y225M-4 22 1320 1085
1300 (belt) 45 55 Y250M-4 23.3 1400 1170
2BE1 252-0 740 (direct) 38 45 Y280M-8 33 28.3 1700 1693
558 (belt) 26 30 Y200L4 20 1200 1460
660 (belt) 31.8 37 Y225S-4 25 1500 1515
832 (belt) 49 55 250M-4 30.8 1850 1645
885 (belt) 54 75 Y2805-4 33.3 2000 1805
938 (belt) 60 75 Y2805-4 35 2100 1805
2BE1 253-0 740 (direct) 54 75 Y315M-8 33 40.8 2450 2215
560 (belt) 37 45 Y225M-4 29.2 1750 1695
660 (belt) 45 55 Y250M-4 35.7 2140 1785
740 (belt) 54 75 Y280S-4 40.8 2450 1945
792 (belt) 60 75 Y280S-4 427 2560 1945
833 (belt) 68 90 Y280M-4 45 2700 2055
885 (belt) 77 90 Y280M-4 47.8 2870 2060
938 (belt) 86 110 Y315S-4 50.3 3020 2295

2BE2 series liquid ring vacuum pumps and compressors

Model Pump Speed
(Driven Mode)		 Max. Shaft Power Motor Power Motor Type Ultimate Vacuum Max. Capacity Weight
r/min kw kw 380V mbar m3/min m3/h kg
2BE1 303-0 740 (direct) 98 110 Y315L2-8 33 66.7 4000 3200
590 (direct) 65 75 Y315L2-10 53.3 3200 3200
466 (belt) 48 55 Y250M-4 41.7 2500 2645
521 (belt) 54 75 Y280S.4 46.7 2800 2805
583 (belt) 64 75 Y280S.4 51.7 3100 2810
657 (belt) 78 90 Y280M-4 59.7 3580 2925
743 (belt) 99 132 Y315M-4 66.7 4000 3290
2BE1 305-1
2BE1 306-1		 740 (direct) 102 132 Y355M1-8 160 77.5 4650 3800
590 (direct) 70 90 Y355M1-10 62.5 3750 3800
490 (belt) 5 75 Y280S-4 52.5 3150 2950
521 (belt) 59 35 Y2805-4 55.3 3320 3000
583 (belt) 68 90 Y280M-4 61.2 3700 3100
657 (belt) 84 110 Y315S.4 68.8 4130 3300
743 (belt) 103 132 Y315M-4 77.5 4650 3450
2BE1 353-0 590 (direct) 121 160 Y355L2-10 33 88.3 5300 4750
390 (belt) 65 75 Y2805-4 59.7 3580 3560
415 (belt) 70 90 Y280M-4 61.7 3700 3665
464 (belt) 81 110 Y315S.4 68.3 4100 3905
520 (belt) 97 132 Y315M-4 77 4620 4040
585 (belt) 121 160 Y315L1-4 86.7 5200 4100
620 (belt) 133 160 Y315L1-4 91.7 5500 4100
660 (belt) 152 185 Y315L2-4 97.5 5850 4240
2BE1 355-1
2BE1 356 1		 590 (direct) 130 160 Y355L2-10 160 103.3 6200 5000
390 (belt) 75 90 Y280M-4 69.7 4180 3920
435 (belt) 86 110 Y315S.4 76.7 4600 4150
464 (belt) 90 110 Y315S.4 80.8 4850 4160
520 (belt) 102 132 Y315M-4 90.8 5450 4290
555 (belt) 115 132 Y315M-4 96.7 5800 4300
585 (belt) 130 160 Y315L1-4 101.7 6100 4350
620 (belt) 145 185 Y315L2-4 107.5 6450 4450
2BE1 403-0 330 (belt) 97 132 Y315M-4 33 86 5160 5860
372 (belt) 110 132 Y315M-4 95 5700 5870
420 (belt) 131 160 Y315L1-4 107.8 6470 5950
472 (belt) 160 200 Y315L2-4 123 7380 6190
530 (belt) 203 250 Y355M2-4 135 8100 6630
565 (belt) 234 280 Y355L1.4 143.3 8600 6800
2BE1 405-1
2BE1 406-1		 330 (belt) 100 132 Y315M-4 160 100 6000 5980
372 (belt) 118 160 Y315L1-4 111.7 6700 6070
420 (belt) 140 185 Y315L2-4 125 7500 6200
472 (belt) 170 200 Y315L2-4 139.2 8350 6310
530 (belt) 206 250 Y355M2-4 157.5 9450 6750
565 (belt) 235 280 Y355L1-4 168.3 10100 6920

ZJ series Roots vacuum pumps

Model Pumping speed Ultimate pressure Maximum allowable differential pressure Rotational speed Inlet flange size Outlet flange size Weight Motor power
(L/s) (Pa) (Pa) (r/min) (mm) (mm) (kg) (kw)
ZJ15 15 5x10-2 8000 1390 50 40 80 0.55
ZJ30 30 5x10-2 8000 2825 50 40 80 0.75
ZJ70 70 5x10-2 8000 2840 80 50 100 1.5
ZJ150 150 5x10-2 6000 2880 100 100 215 3
ZJ300 300 5x10-2 4500 1440 150 150 480 4
ZJ600 600 5x10-2 4500 2900 150 150 503 7.5
ZJ1200 1200 5x10-2 3000 1460 300 300 1580 15
ZJ2500 2500 5x10-2 3000 1470 400 300 2150 22
ZJ5000 5000 5x10-2 2600 1480 400 300 4350 37
ZJ10000 10000 5x10-2 2600 1480 500 400 6160 55
ZJ20000 20000 5x10-2 2600 990 800 800 14270 90
ZJ30000 30000 5x10-2 2600 990 1000 1000 17400 110

ZJQ series air-cooled Roots vacuum pumps

Model Pumping speed Ultimate pressure Maximum allowable differential pressure Rotational speed Inlet flange size Outlet flange size Recycle (bypass) port size Motor power
(L/s) (Pa) (Pa) (r/min) (mm) (mm) (mm) (kw)
ZJQ15 15 3x104 8.5x104 1390 50 40 20 0.55 ~ 2.2
ZJQ30 3 2x104 8.5x104 2825 50 40 20 0.75~4
ZJQ70 70 2x104 8.5x104 2840 80 50 25 1.5~7.5
ZJQ150 150 1.6x104 8.5x104 2880 100 100 40 3~15
ZJQ300 300 1.6x104 8.5x104 1440 150 150 65 4~30
ZJ0600 600 1.6x104 8.5x104 2900 150 150 65 7.5~55
ZJQ1200 1200 1.3x104 8.8x104 1460 250 200 100 15 ~ 132
ZJQ2500 2500 1.3x104 8.8x104 1470 400 300 100 22~250
ZJQ5000 5000 \ 4x104 1480 400 300 150 37~250
ZJQ10000 10000 \ 4x104 1480 500 400 200 55~500
ZJQ20000 20000 \ 4x104 990 800 800 300 90 ~1000
ZJQ30000 30000 \ 3x104 990 1000 1000 300 110~1500

LGB series variable pitch screw vacuum pumps

Model Pumping speed Nominal pumping speed Rotational speed Ultimate pressure Noise level Motor power Inlet flange diameter Outlet flange diameter
L/s L/s rpm Pa dB kW mm mm
LGB-30 30 45 2900 ≤10 ≤74 4 40 40
LGB-50 50 65 2900 ≤10 ≤77 5.5 50 40
LGB-70 70 90 2900 ≤10 ≤78 7.5 50 50
LGB-100 100 135 2900 ≤10 ≤81 11 65 50
LGB-180 180 250 2900 ≤10 ≤81 18.5 100 80
LGB-300 300 350 2900 ≤10 ≤82 30 125 80
LGB-500 500 650 1480 ≤10 ≤83 55 150 125
LGB-800 800 1000 1480 ≤10 ≤84 75 200 125

Industry & Application

Oil & Chemical

Vacuum pumps for distillation, evaporation, crystallization, solvent recovery, degassing, filtration, and stripping to enhance separation efficiency, improve product purity, reduce energy consumption, and enable safe handling of volatile and hazardous compounds in refining and petrochemical processes.

-

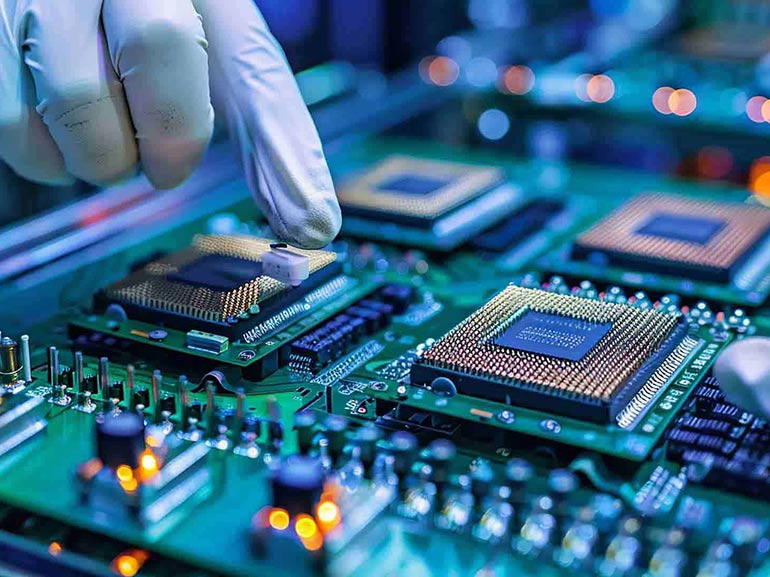

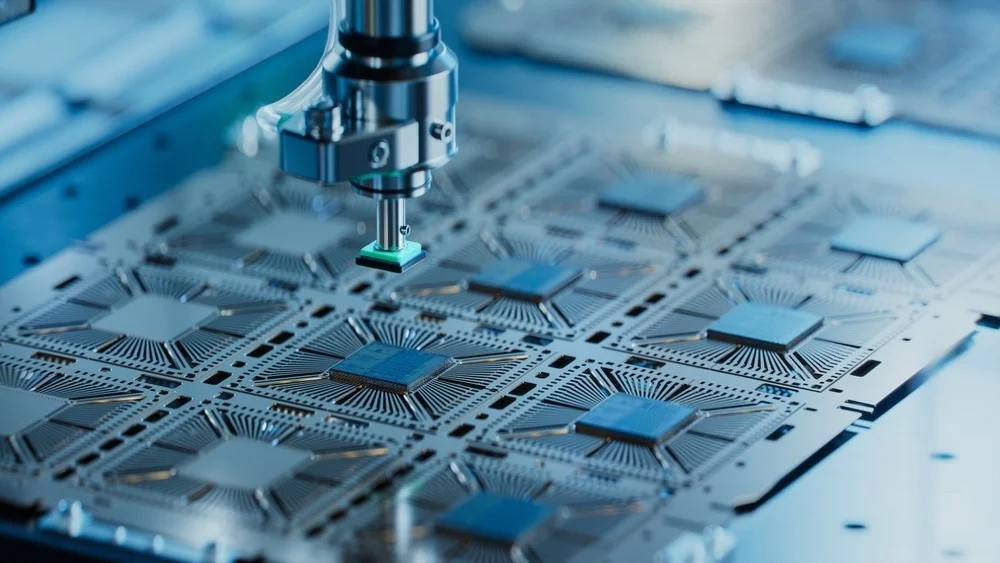

Semiconductor & Electronics

Vacuum pumps for plasma etching, chemical vapor deposition (CVD), physical vapor deposition (PVD), ion implantation, photoresist stripping, wafer handling, and chamber purging to achieve ultra-high vacuum conditions, ensure nanometer-scale patterning precision, and maintain contaminant-free environments essential for advanced integrated circuit production and flat-panel display manufacturing.

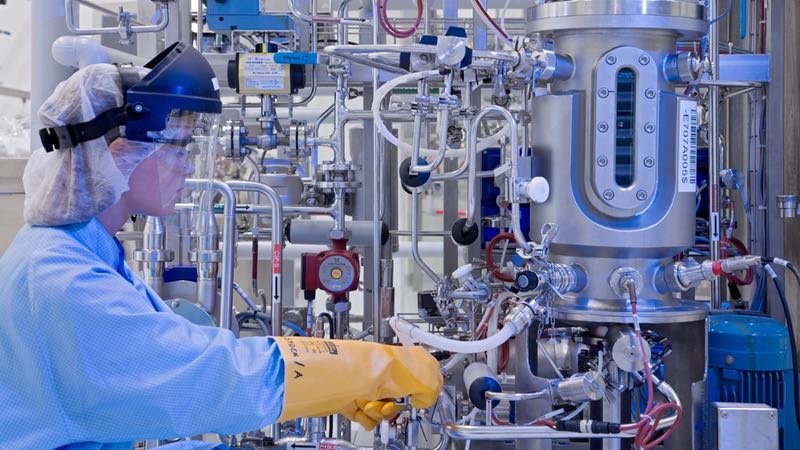

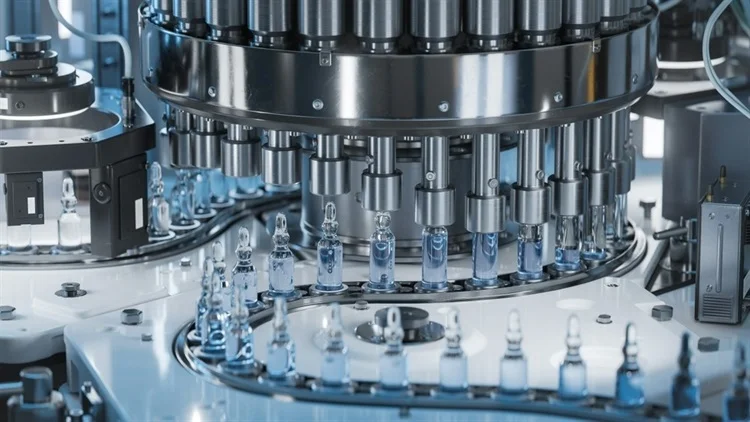

Pharmaceutical

Vacuum pumps for freeze drying (lyophilization), vacuum distillation, crystallization, drying, tablet coating, sterile filtration, powder conveying, and degassing to ensure aseptic processing, preserve active pharmaceutical ingredients, enhance product stability, extend shelf life, and comply with strict Good Manufacturing Practice (GMP) and regulatory quality standards.

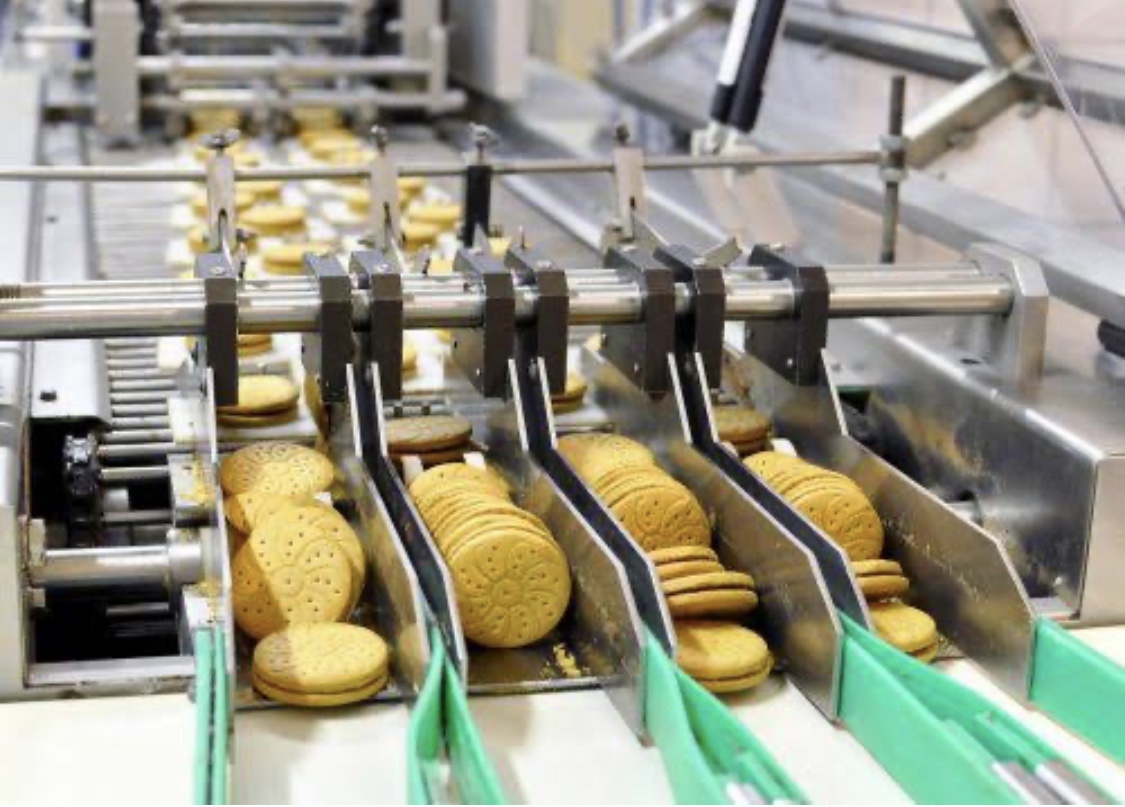

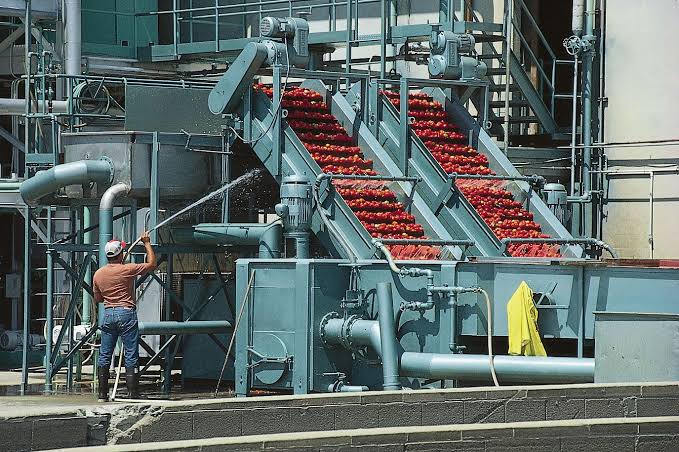

Food Processing

Vacuum pumps for vacuum cooling, freeze drying, concentration, deaeration, aroma recovery, vacuum packaging, and extrusion to preserve natural freshness, inhibit oxidative and microbial spoilage, maintain nutritional value, improve product texture, and significantly extend the shelf life of fruits, vegetables, meats, and prepared foods.

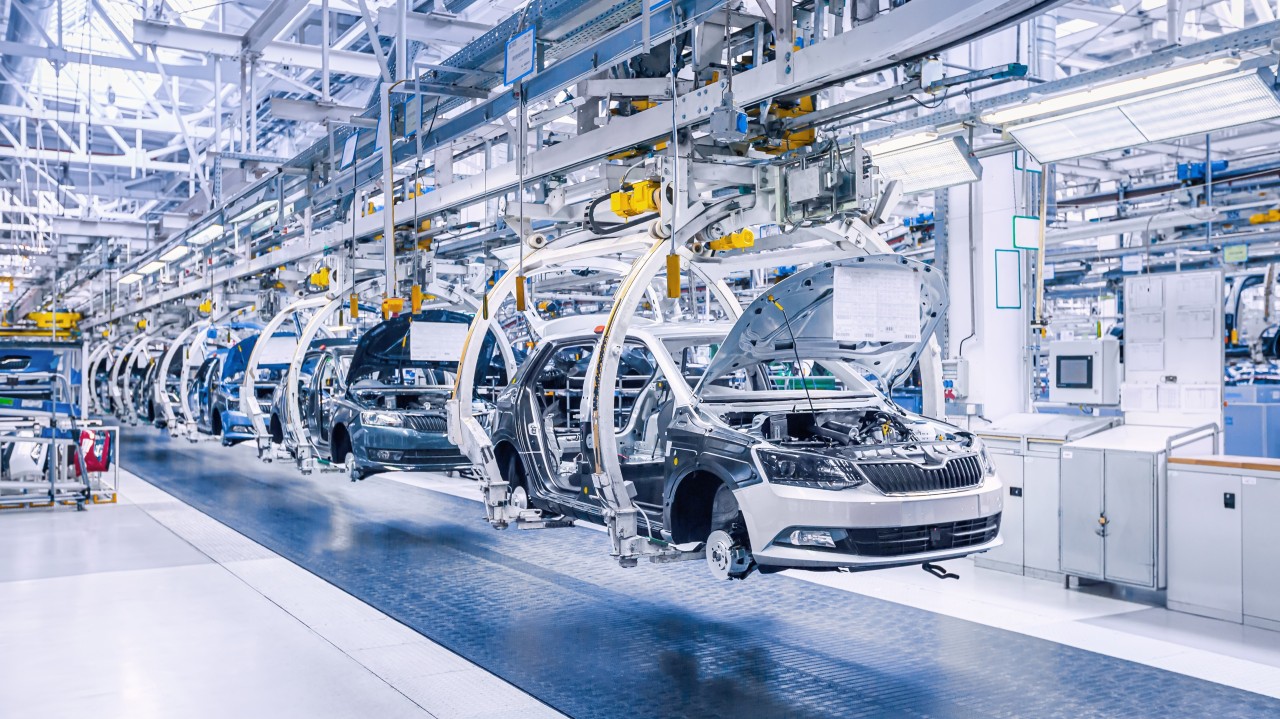

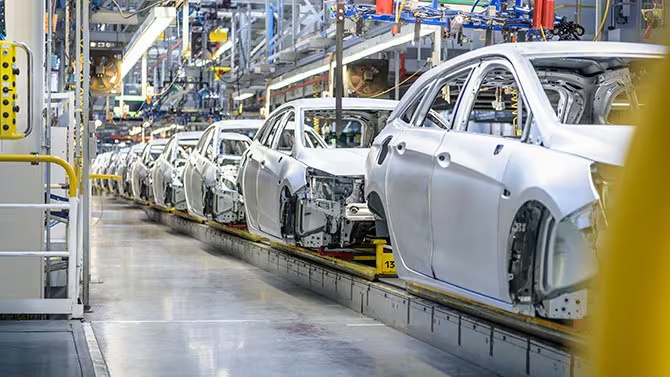

Automotive

Vacuum pumps for brake boosting, emission control, turbocharger actuation, composite molding, leak testing, paint spraying, material handling, and tire curing to improve vehicle safety and fuel efficiency, reduce emissions, enhance surface finish, and optimize productivity across assembly lines and component manufacturing.
