Efficient, Clean, and Field-Ready

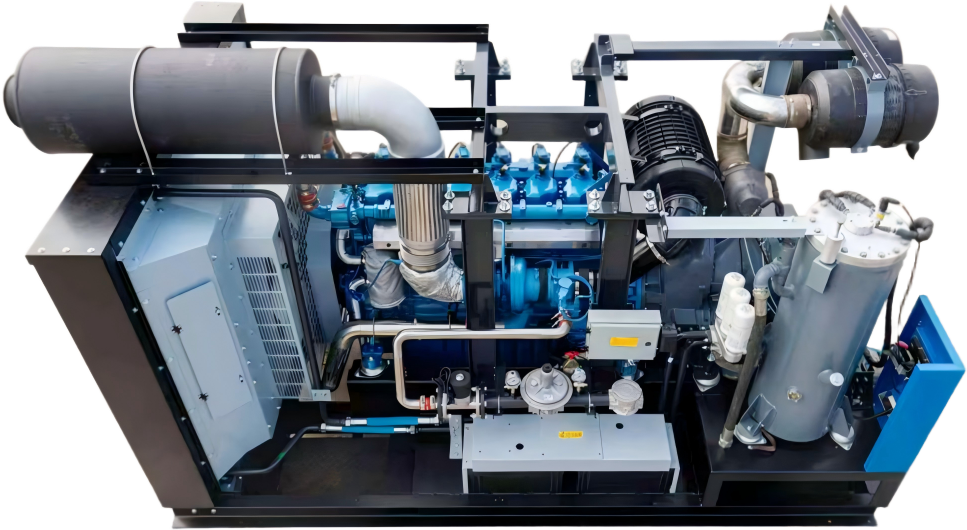

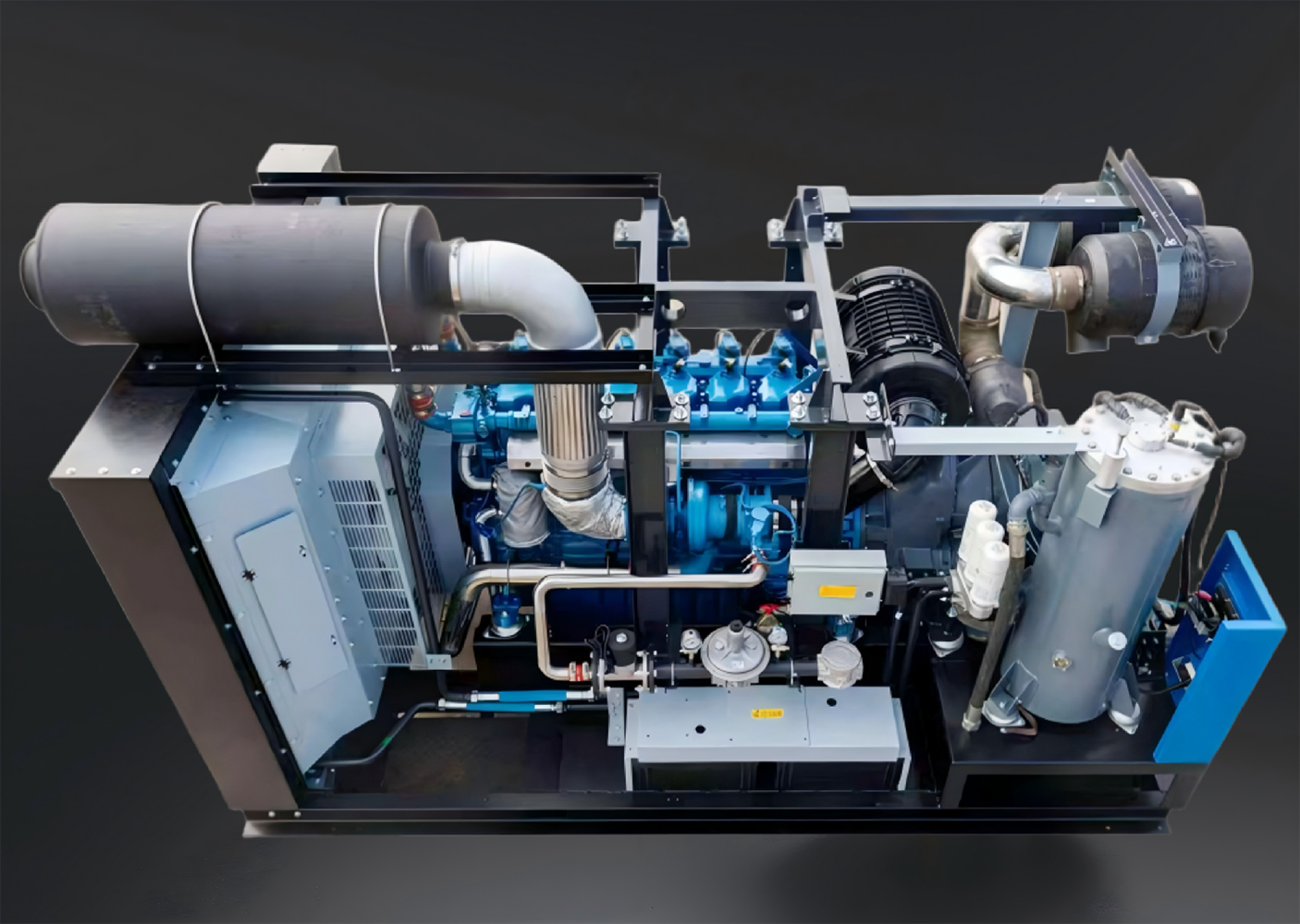

Name: Mobile Gas Driven Air Compressor
SKU: 0

Designed for oil & gas field operations, utilizing natural gas as fuel to deliver reliable, cost-effective, and environmentally friendly compressed air in remote locations.

Contact our expert

Feature
Standard
Specific Model Parameter Table
Industry&Application
Spare Parts

Feature


Natural Gas Engine Driven
Powered by wellhead or pipeline natural gas, enabling utilization of associated gas and reducing fuel costs while eliminating diesel dependency.

Lower Operating Cost
Uses on-site gas resources; compared to diesel-driven compressors, the investment cost can typically be recovered within approximately 2000 operating hours.

Environmentally Friendly
Higher combustion efficiency with lower emissions, meeting environmental compliance requirements and supporting sustainable operations.

Original & OEM Solutions
Genuine components and customizable OEM configurations available to meet specific project requirements.

High Pressure Capability
Suitable for medium to high-pressure applications such as pipeline services and drilling support.

Mobile & Field-Ready Design

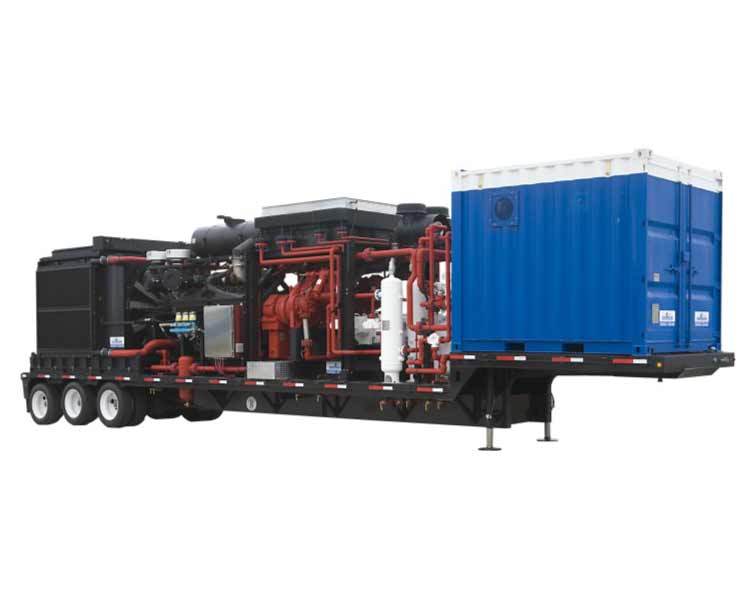

Skid or trailer-mounted configurations for easy transportation and rapid deployment in remote oilfields.

Tailored for Oil & Gas Field Applications
Optimized layout and design specifically engineered for oilfield operating conditions.

Integrated Steel Structure Design
Robust skid-mounted frame ensuring durability, stability, and suitability for harsh field environments.

Centralized Control Ready
Control panel equipped with an 8-meter wiring harness, allowing relocation to the nitrogen generation module control room for centralized operation.

Extreme Condition Reliability
Stable operation under extreme conditions including low/high temperatures and high-altitude environments without performance impact.

Standard

Specific Model Parameter Table

Type	LNG1500	LNG1700
Working pressure (bar)	20	14
Flow (m3/min)	42	48
Noise level (at 7m distance, dBA)	87±3	87±3
Compressor oil capacity (L)	105	150
Outlet valves,qty x size	1×G2 1×G3/4	1×Rc3 1×R3/4
GASENGINE
Engine brand	Weichai	Weichai
Engine model	6M33D480E311NG	6M33D480E311NG
Engine power (kW)	480	480
Max.engine speed (rpm)	1800	1800
Unloadingengine speed (rpm)	1600	1600
Engine type	Electronical	Electronical
DIMENSION &WEIGHT - Box mounted
Length (mm)	4200	4500
Width (mm)	2150	2250
Height (mm)	2390	2300
Weight(kg)	5500	6500

Industry & Application

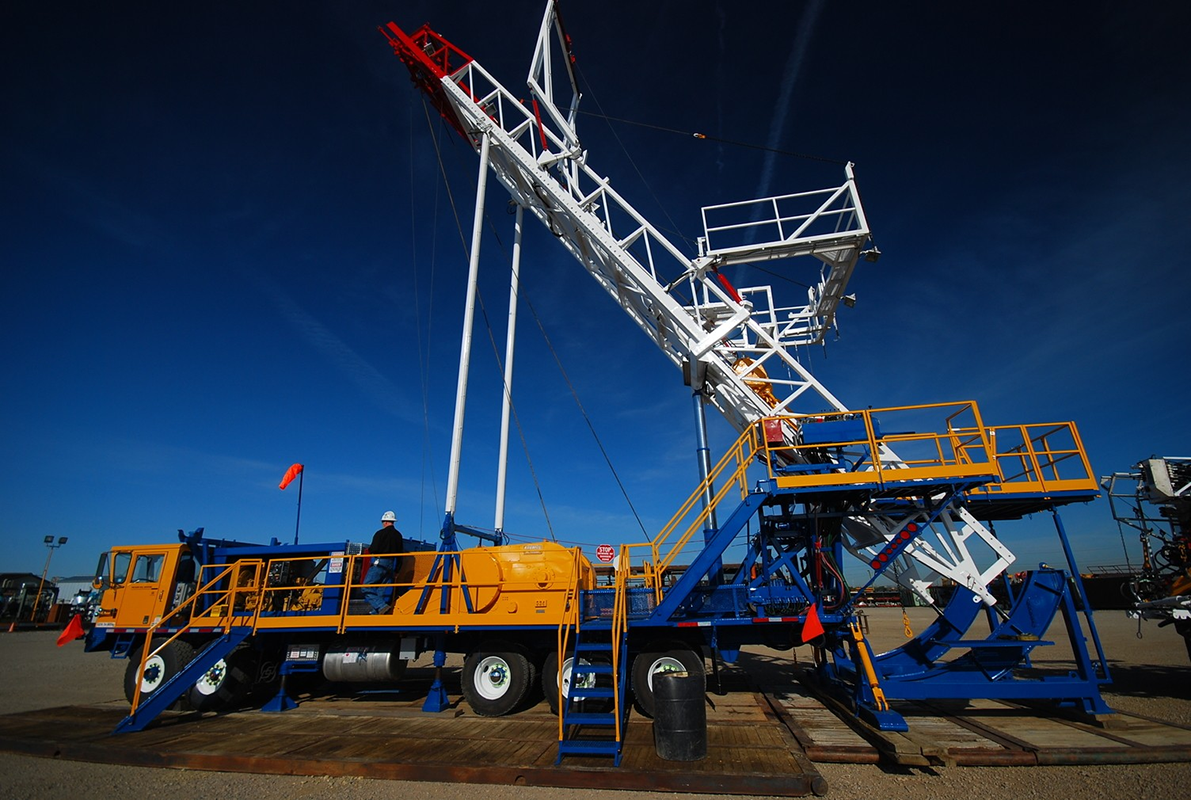

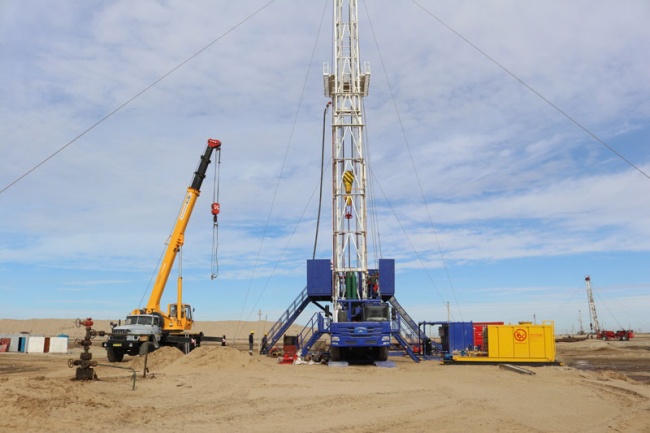

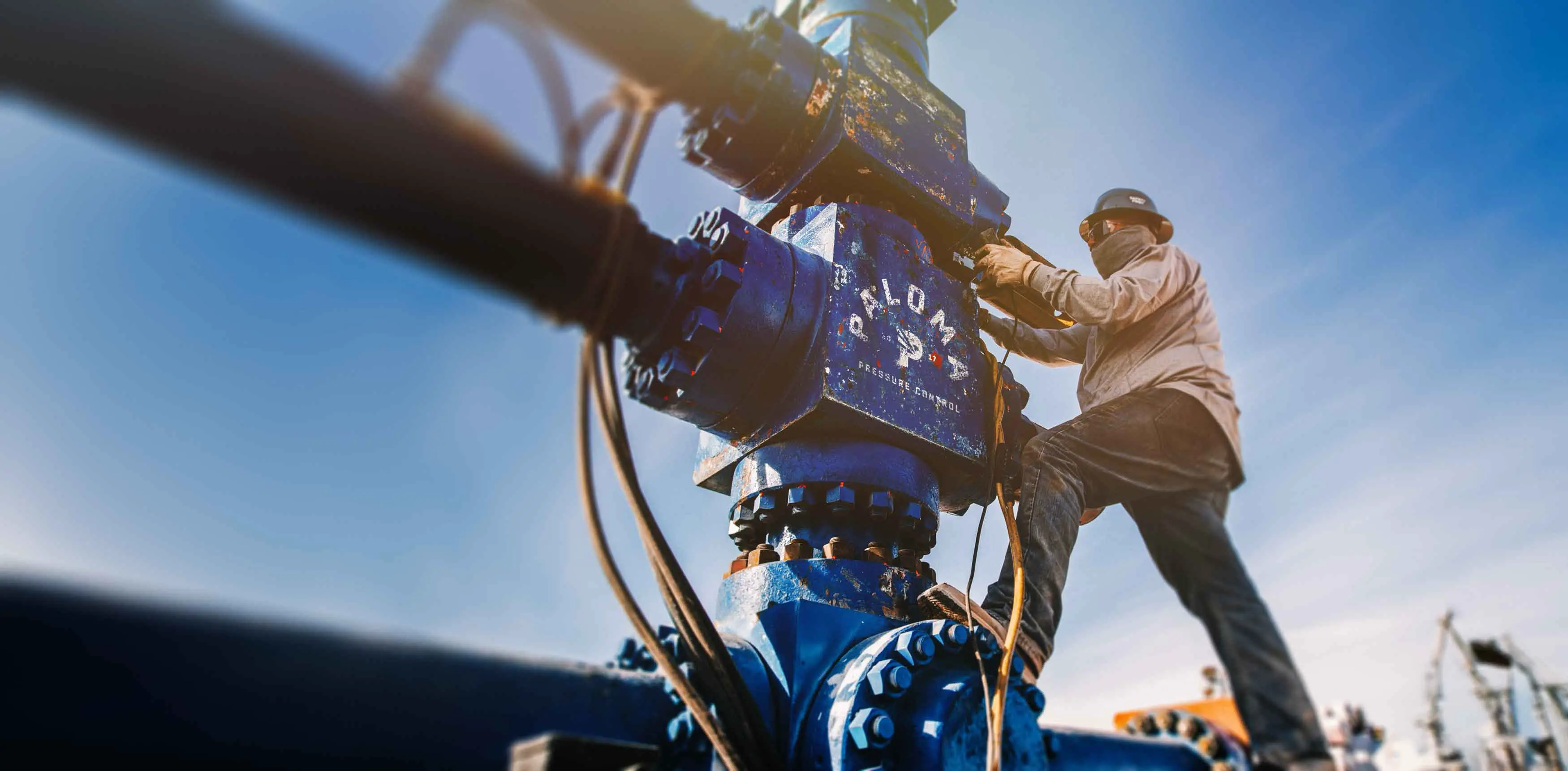

Oil & Gas Upstream Operations

Ideal for wellhead operations, drilling support, and field maintenance using available natural gas resources.

Nitrogen Generation

Suitable for membrane and PSA nitrogen production systems, providing a stable compressed air source for on-site nitrogen generation, including applications such as inerting, purging, pressure testing, and enhanced oil recovery (EOR).
