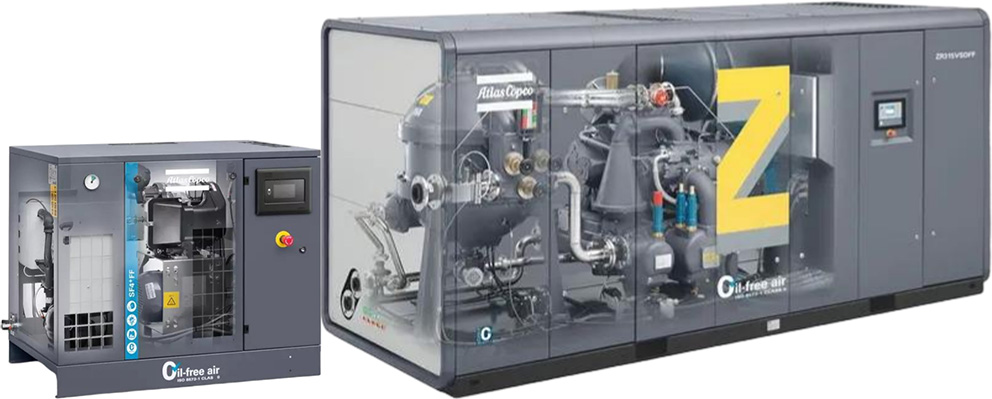

Oil-Free Air Compressors for Clean Air

Engineered for applications where air quality is critical, ensuring contamination-free production and protecting your end products.
Contact our expert

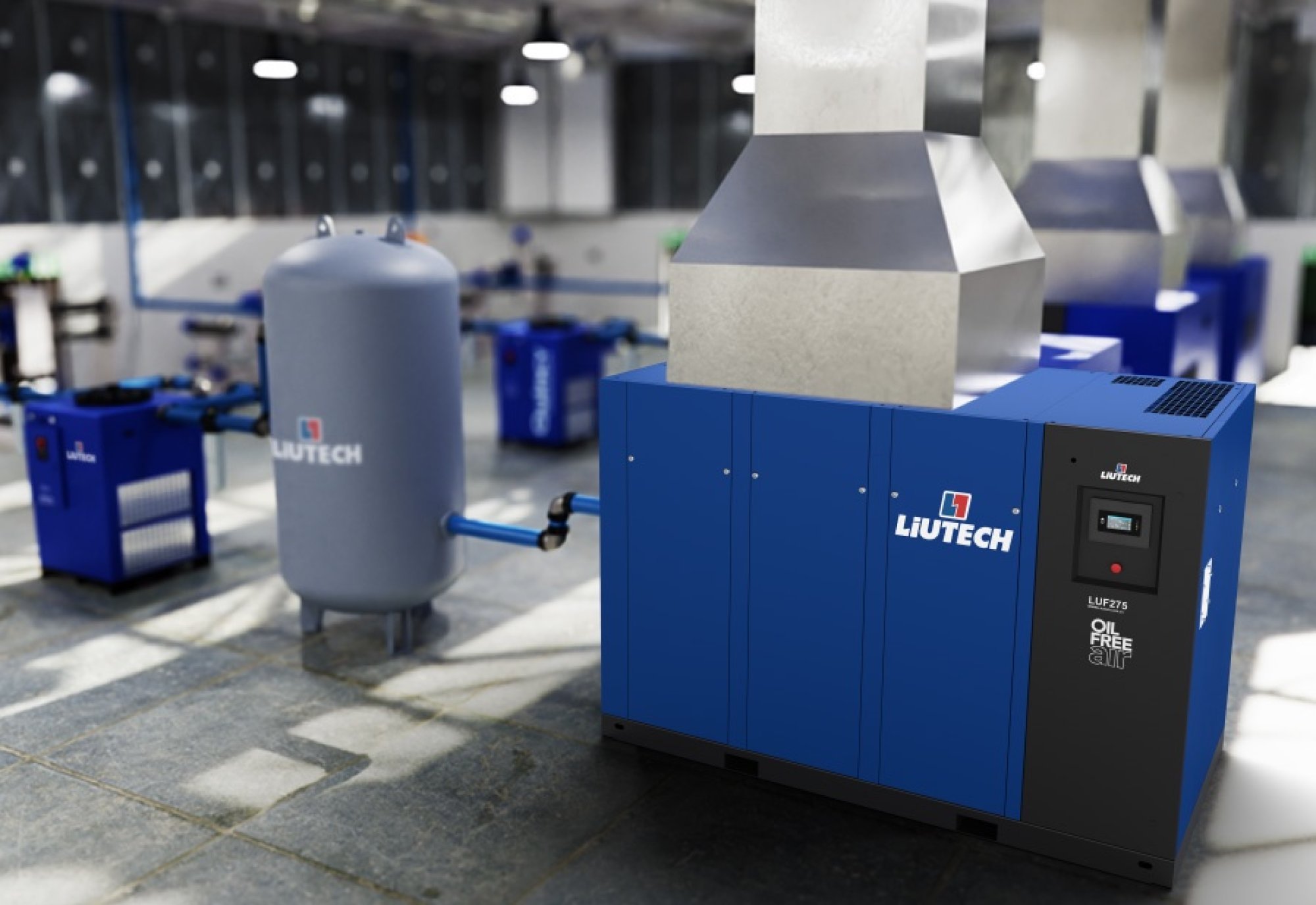

Oil Free Air Compressor
Contact us

Feature

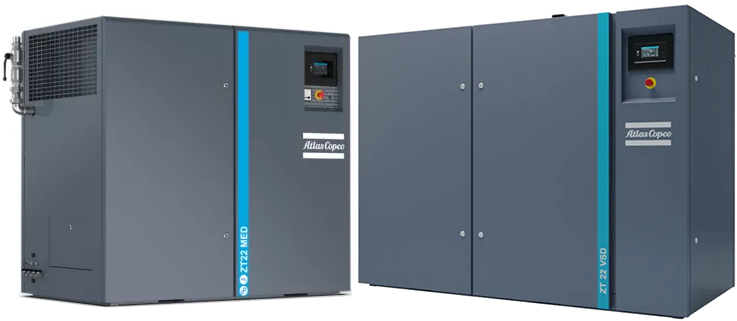

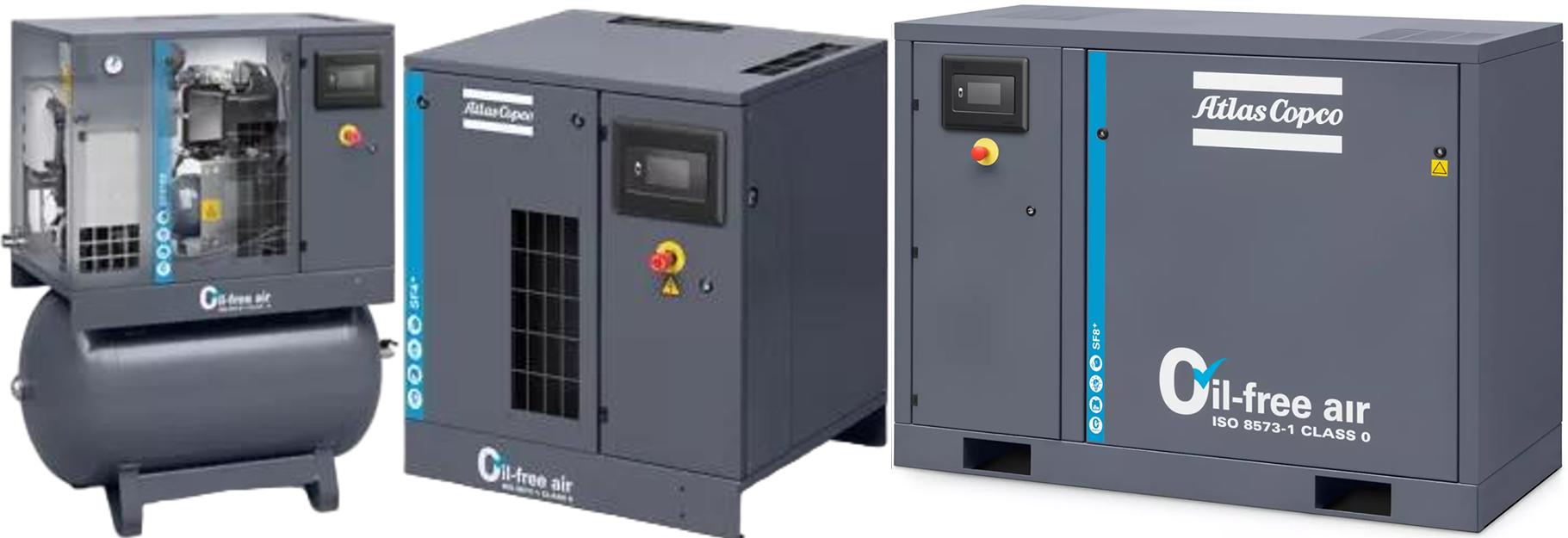

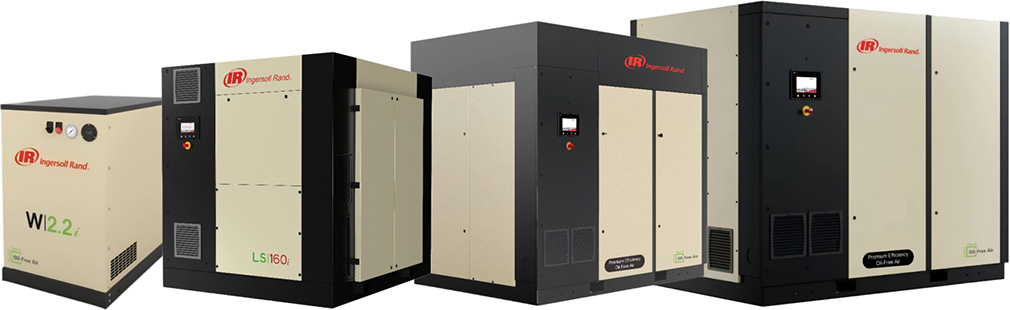

  • Atlas Copco & Ingersoll Rand Original
    Genuine components from Atlas Copco or Ingersoll Rand, ensuring high reliability and long service life.
  • Class 0 Oil-Free
    Delivers completely oil-free air, meeting ISO 85731 Class 0 standards for contamination-free applications.
  • Brands Options
    High-quality alternative brands available to suit different budget and operational requirements.
  • OEM White Label
    Custom branding solutions with your own paint, logos, and nameplates to enhance your local presence and brand recognition.

Brand Model Parameter Table

Oil Free Scroll Air Compressor

Brand Power Flow Range Pressure Range Reference Photo

1.5-4×5.5kW 6.8-147 m³/min 8-10 bar

1.5-4×5.5kW 6.8-147 m³/min 8-10 bar

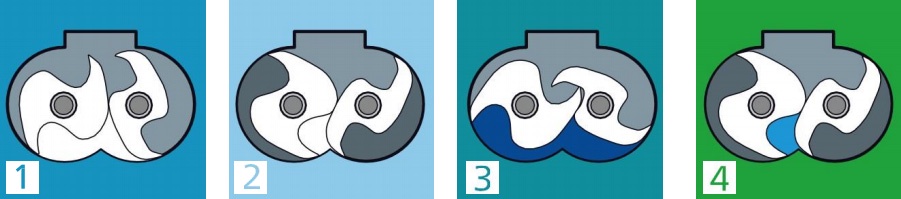

Oil-free Rotary Tooth Air Compressor

Brand Power Flow Range Pressure Range Reference Photo

15-55 kW 1.8-8.6 m³/min 4-10 bar

15-55 kW 1.8-8.6 m³/min 4-10 bar

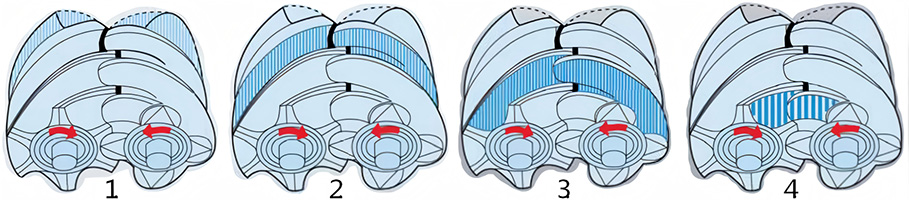

Oil-free Screw Air Compressore

Brand Power Flow Range Pressure Range Reference Photo

55-315 kW 7.3-50.2 m³/min 7.5-10.5 bar

37-355 kW 5-53.3 m³/min 4-10.7 bar

55-720 kW 7.3-90 m³/min 7.5-10.5 bar

Standard

Specific Model Parameter Table

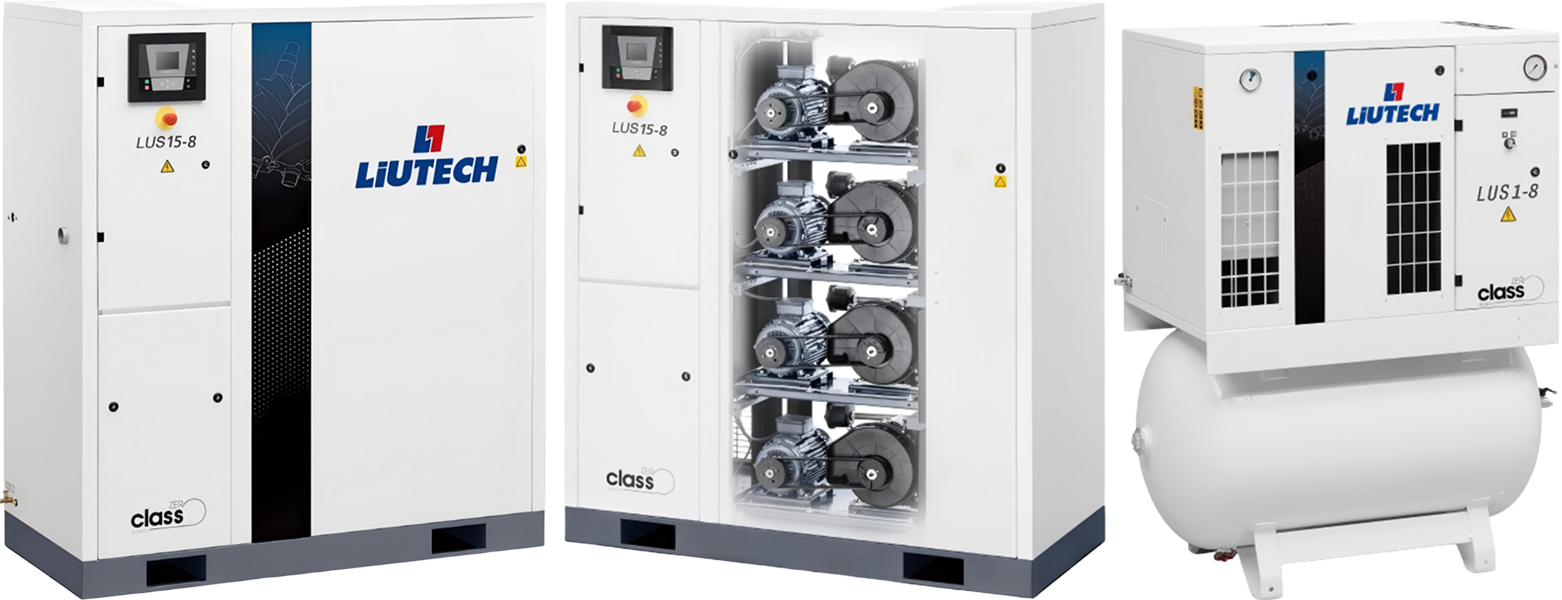

LUS scroll 1-22



  Model Motor Power Working
Pressure
   bar		 Capacity FAD Noise Level Weight* Size（L*W*H)
kW hp m³/h l/s cfm db(A) std(kg) mm
Single module unit LUS 1 1.5 2 8 10.4 2.9 6.1 53 120 Compressor: 750*640*835
+Dryer: 990*640*835
+270L air tank: 1520*640*1335
+500L air tank: 1844*640*1500
10 6.8 1.9 4.0
LUS 2 2.2 3 8 15.1 4.2 8.9 55 125
10 12.2 3.4 7.2
LUS 4 3.7 5 8 24.1 6.7 14.2 57 133
10 21.2 5.9 12.5
LUS 6 5.5 7.5 8 35.3 9.8 20.8 59 157
10 27.4 7.6 16.1
Multi-modue unit LUS 8 2x3.7 2x5 8 48.0 13.4 28.4 63 372 1630*750*1230
10 40.8 11.4 24.2
LUS 11 2x5.5 2x7.5 8 73.2 20.3 43.0 63 418
10 54.0 15.0 31.8
LUS 15 4x3.7 4x5 8 95.0 26.4 55.9 63 580 1630*750*1840
10 82.8 23.0 48.7
LUS 17 3x5.5 3x7.5 8 111.6 31.0 65.7 64 573
10 85.2 23.7 50.2
LUS 22 4x5.5 4x7.5 8 147.0 40.8 86.5 65 684
10 108.0 30.0 63.6

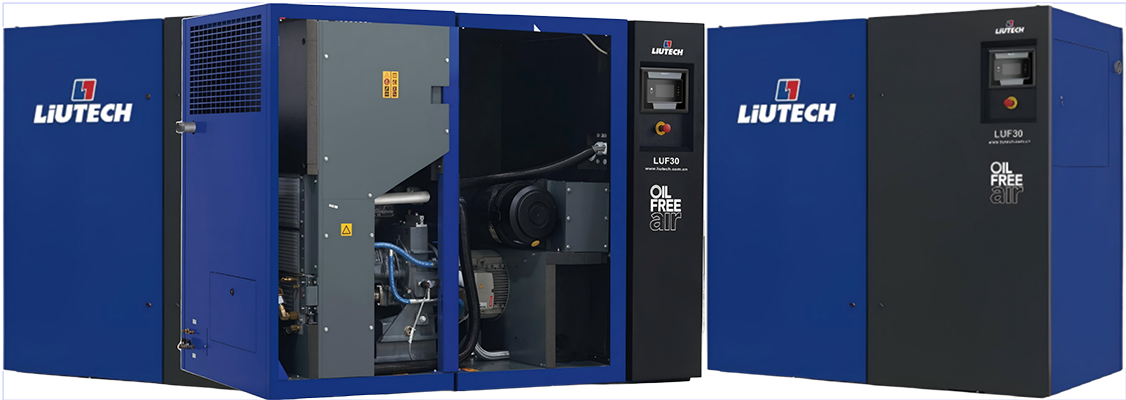

LUF rotary tooth 15-55



LUF15-45
LUF22-55 VSD
Model Motor Working
Pressure		 Capacity FAD(1) Noise Level Outlet size Weight Size（L*W*H)
kW bar(e) L/s  m³/min dB(a)   kg mm
LUF15 15 7.5 38.1 2.3 68 G 1-1/2'' 1025 1760*1017*1621
8.6 35.5 2.1
10 30.4 1.8
LUF18 18.5 7.5 48.6 2.9 70 1050
8.6 46.4 2.8
10 36.7 2.2
LUF22 22 7.5 59.6 3.6 72 1065
8.6 54.0 3.2
10 45.6 2.7
LUF30 30 7.5 76.2 4.6 69 1280 2005*1026*1880
8.6 70.5 4.2
10 61.7 3.7
LUF37 37 7.5 95.2 5.7 71 1355
8.6 91.0 5.5
10 80.0 4.8
LUF45 45 7.5 114.0 6.8 73 1385
8.6 108.6 6.5
10 95.0 5.7
Model Motor Working
Pressure		 Capacity FAD(1) Noise Level Outlet size Weight Size（L*W*H)
kW bar(e) L/s  m³/min dB(a) kg mm
LUF22 VSD 22 4 21.5-57.3  1.3-3.4 72 G 1-1/2'' 1127 2195*1026*1621
7 20.6-56.4  1.2-3.4
10 19.7-47.4  1.2-2.8
LUF37 VSD 37 4 42.4-102.3  2.5-6.1 74 1400 2440*1026*1880
7 41.3-101.2  2.5-6.1
8.6 41.2-95.1  2.5-5.7
LUF37 VSD 37 4 42.4-102.3  2.5-6.1 74 1400
7 41.3-101.2  2.5-6.1
10 33.3-82.7  2.0-5.0
LUF55 VSD 55 4 42.4-143.7  2.5-8.6 75 1481
7 41.3-142.5  2.5-8.6
8.6 41.1-138.8  2.5-8.3
LUF55 VSD 55 4 42.4-143.7  2.5-8.6 75 1481
7 41.3-142.5  2.5-8.6
10 33.3-124.2  2.5-7.5

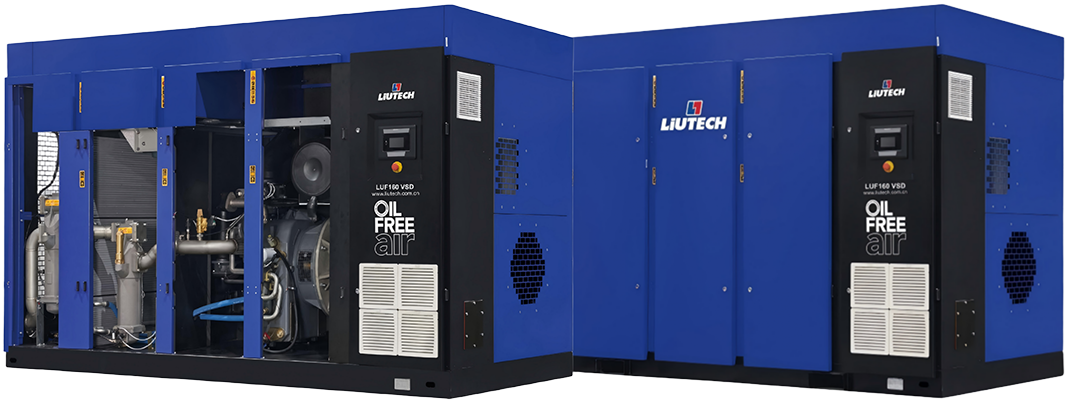

LUF screw 55-315



LUF 55-160 / VSD
LUF 160-315 / VSD
Model Installation
Power		 Working
Pressure		 Capacity FAD Weight Size
(L´W´H)
kW bar m³/min kg mm
LUF55
(W)		 55 7.5 8.7 (9.0) 2200 (1800) 2180´1530´2190
8.6 7.9 (8.2)
10 7.3 (7.6)
LUF75
(W)		 75 7.5 12 (12.3) 2320 (1920)
8.6 11.2 (11.5)
10 10.7 (11.0)
LUF90
(W)		 90 7.5 14.1 (14.5) 2400 (2000)
8.6 13.4 (13.7)
10 12.6 (13.0)
LUF110
(W)		 110 7.5 18.4 (18.4) 2875 (2565) 3400´1660´2150
8.6 16.9 (17.2)
10 (16)
LUF132
(W)		 132 7.5 21.8 (21.7) 2965 (2715)
8.6 19.5
10 (18.9)
LUF145
(W)		 145 7.5 23.2 3050 (2790)
8.6 21.5
10 (19.9)
LUF75VSD
(W)		 75 8.6 13.0 (13.2) 2365 2180*1530*2190
10 11.6 (11.7) 1990
LUF90VSD
(W)		 90 8.6 15.1 (15.3) 2435
10 13.9 (14.1) 2035
LUF110VSD
(W)		 110 8.6 19.1 (19.4) 2925 2431*1660*1995
10 (16.5) 2735
LUF132VSD
(W)		 132 8.6 (22.2) 3015
10 (19.1) 2750
LUF160VSD
(W)		 160 8.6 (23.3) 3100
10 (20.7) 2800
Model nstallation
Power		 Max Working
Pressure		 Capacity FAD Weight Size（L*W*H)
kW bar m³/min kg mm
LUF160
(W)		 160 7.5 28.3 3944 2950*1595*1993
8.6 26.2
10 24.2
LUF200
(W)		 200 7.5 36.1 4034
8.6 33.1
10 30.4
LUF200
(VSD)
(W)		 200 8.6 35.68 4129
10.4 32.87
LUF250
(W)		 250 7.5 43.1 4524
8.6 41.0
10 37.4
LUF250
(VSD)
(W)		 250 8.6 44.4 4254
10.4 37.74
LUF275
(W)		 275 7.5 46.4 4894
8.6 43.1
10 41.0
LUF315
(VSD)
(W)		 300 8.6 50.2 4264
10.4 42.4

Industry & Application

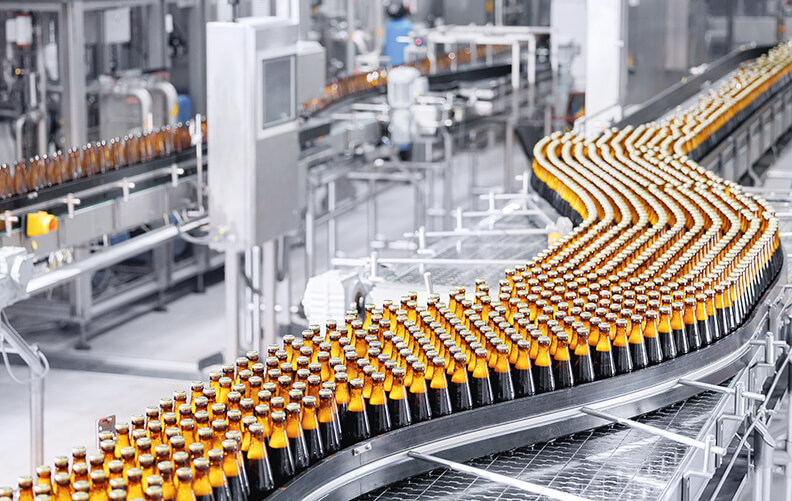

Food & Beverage Processing

Ensures clean, oil-free air for packaging, bottling, cleaning, and pneumatic control in food production lines.

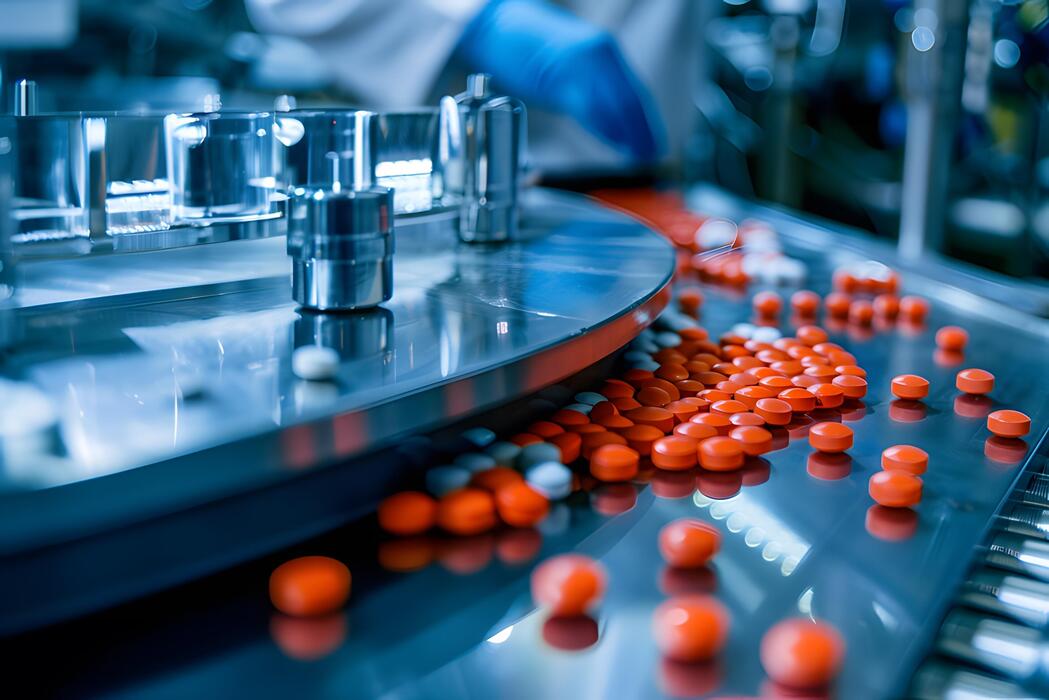

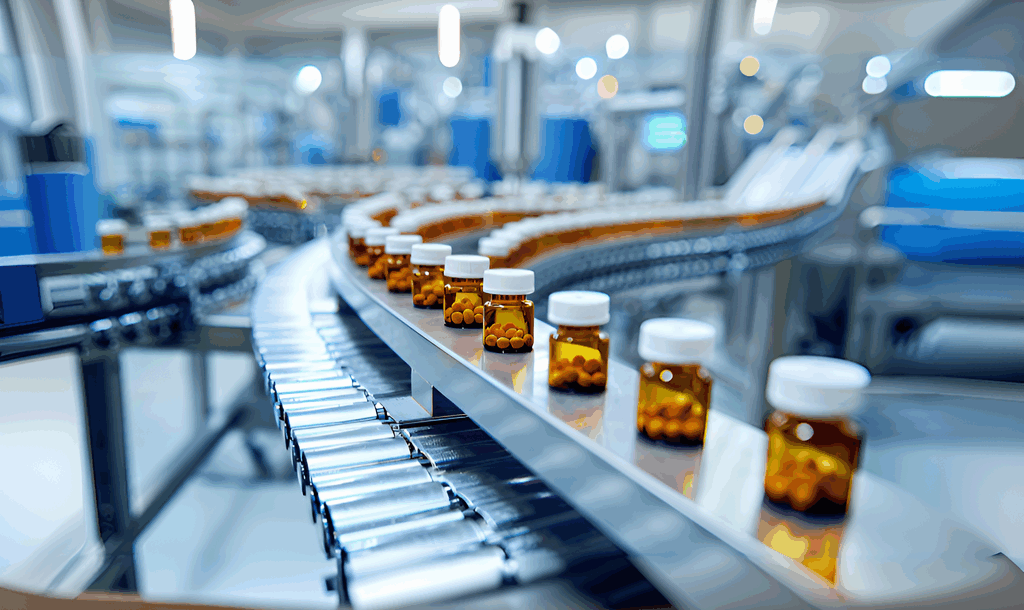

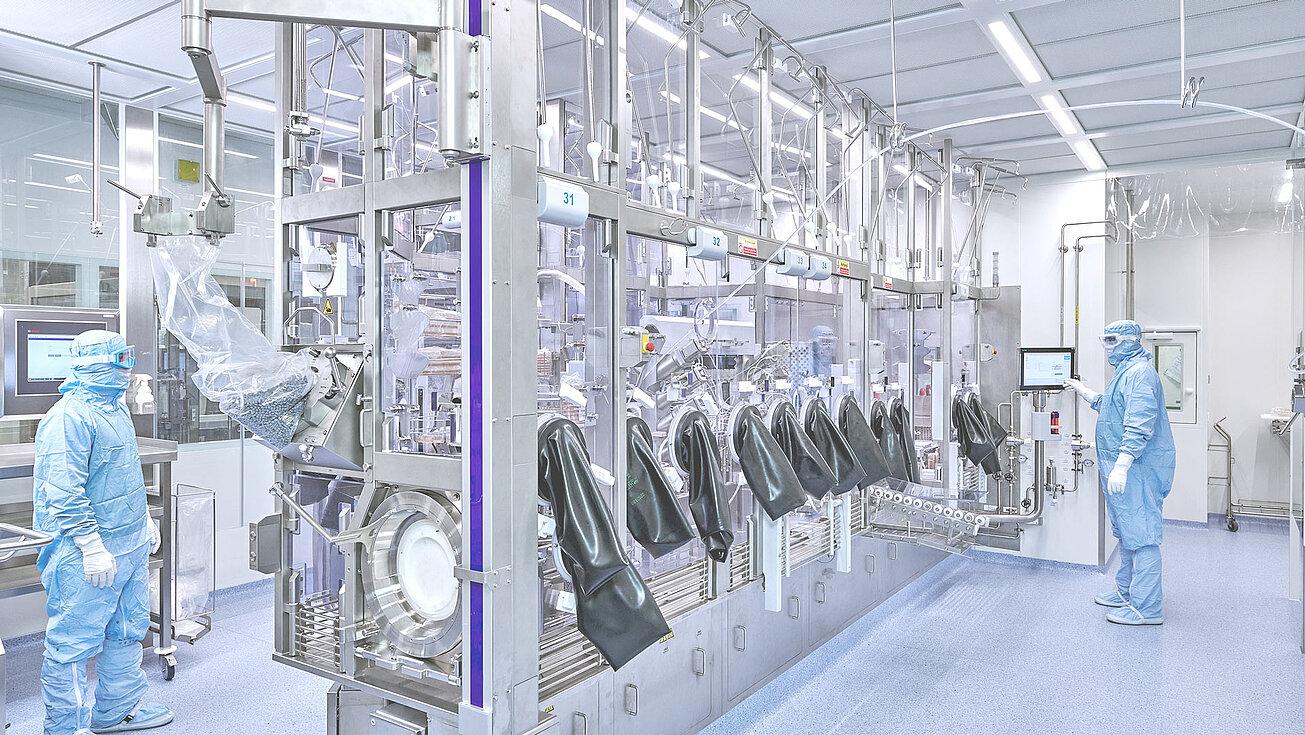

Pharmaceutical & Medical Devices

Provides contamination-free air for pharmaceutical manufacturing, medical equipment assembly, and clean environments in compliance with GMP standards.

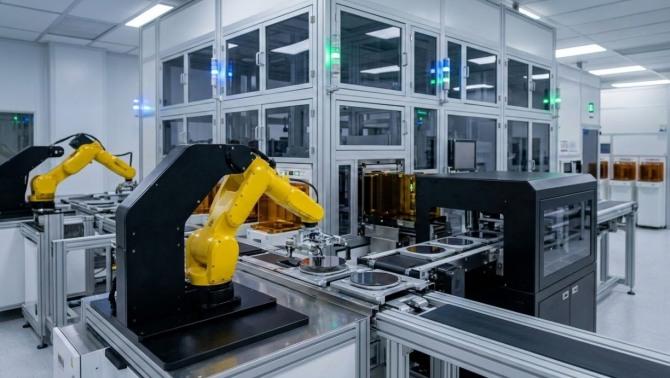

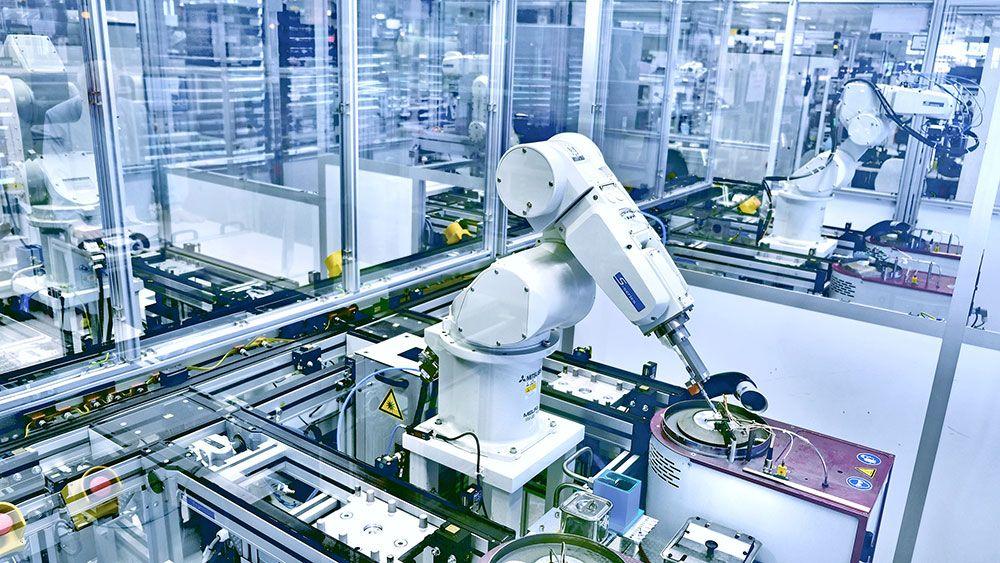

Electronics & Precision Manufacturing

Supplies ultra-clean air for assembly, testing, and automation in electronics and precision equipment manufacturing.

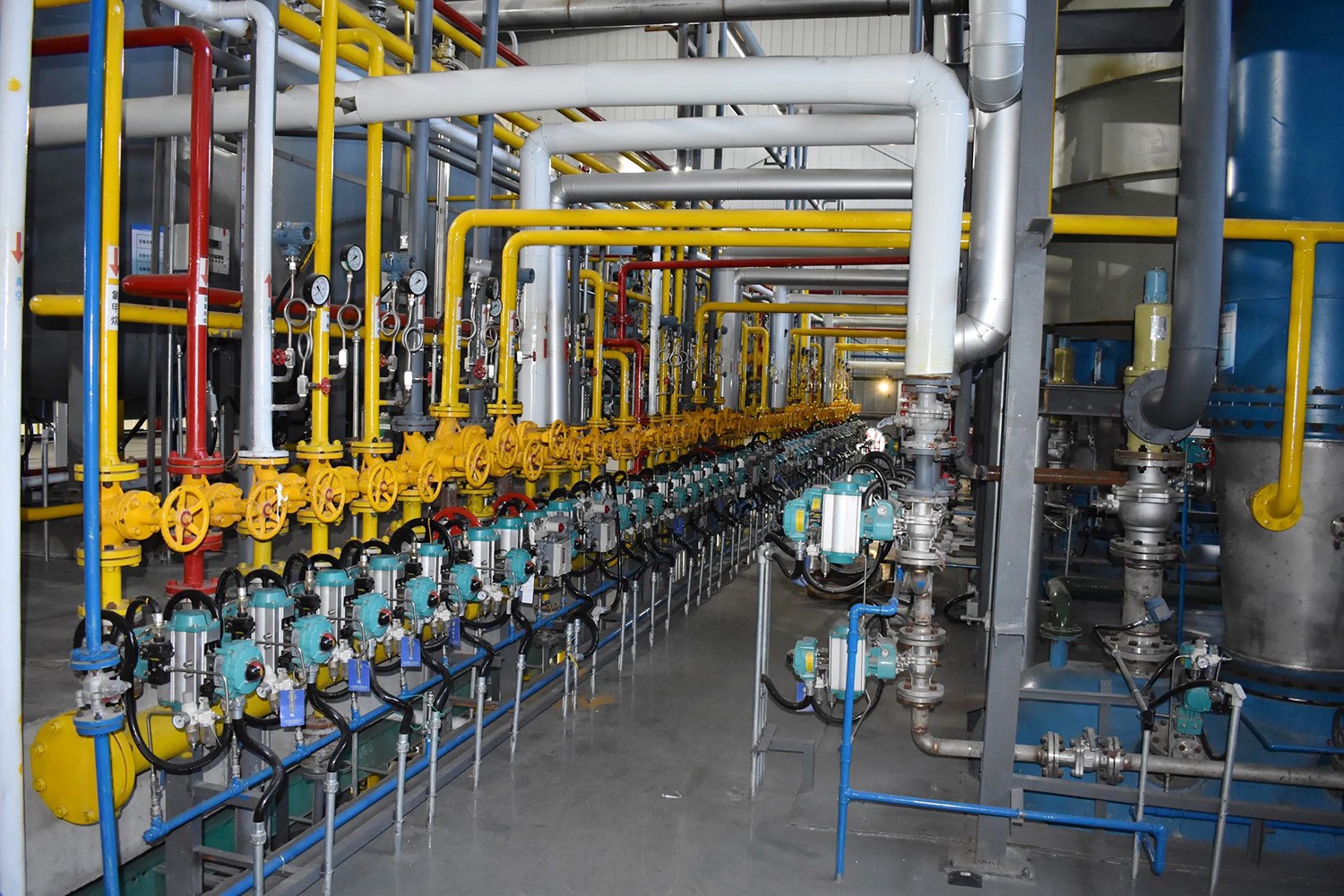

Chemical & Fine Chemicals

Delivers oil-free air for chemical reactions, purging, and process control in sensitive chemical and fine chemical industries.

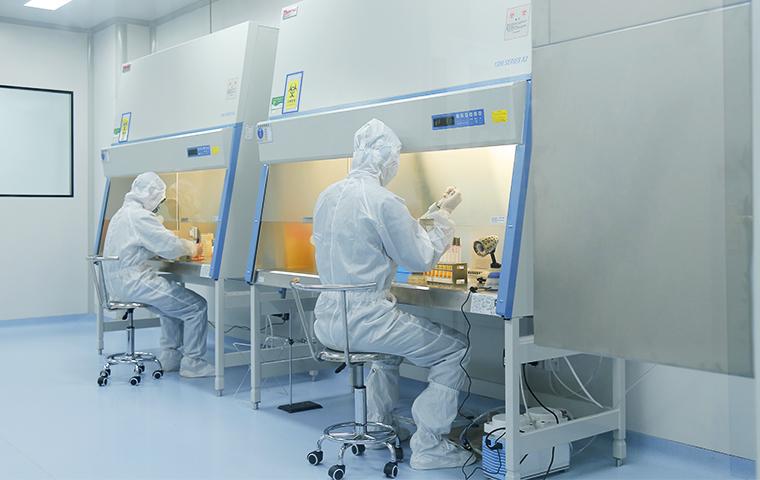

Cleanrooms & Research Facilities

Supports laboratory equipment, pneumatic instruments, and automation systems in high-purity, controlled environments.
