Achieve Peak Performance with Our Rotary Screw Air Compressors
Reliable, energy-efficient rotary screw air compressors for continuous performance-powered by Atlas Copco and Ingersoll Rand.
Contact our expert
Feature
- Atlas/IR OriginalGenuine components from Atlas Copco or Ingersoll Rand for maximum reliability and performance.
- Brands OptionsHigh-quality alternative brands available to suit different budget and operational requirements.
- OEM White LabelCustom branding solutions that allow you to use your own paint, logos, and nameplates on the compressor, enhancing your local presence and brand recognition.
Brand Model Parameter Table
-
Cost Efficiency
-
Performance
-
Energy Efficiency
| Brand | Power | Flow Range | Pressure Range | Reference Photo |
|
|

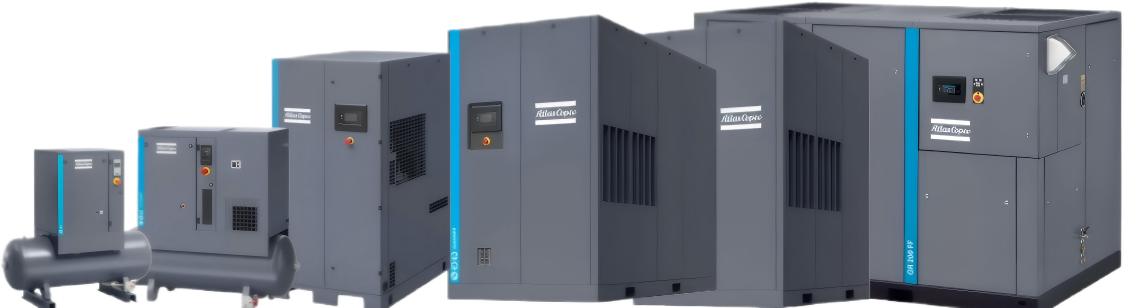

4-560 kw | 0.2-96.5 m³/min | 7-13 bar |
|
|
|

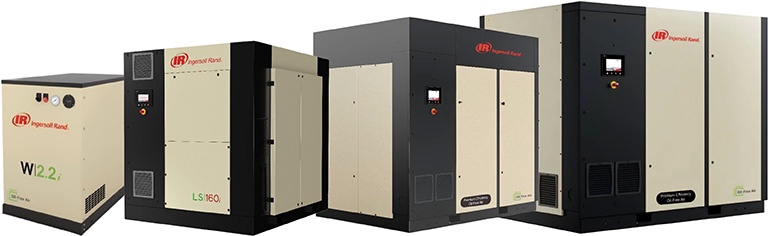

4-355kW | 0.45-71 m³/min | 6.9-14 bar |
|
|
|

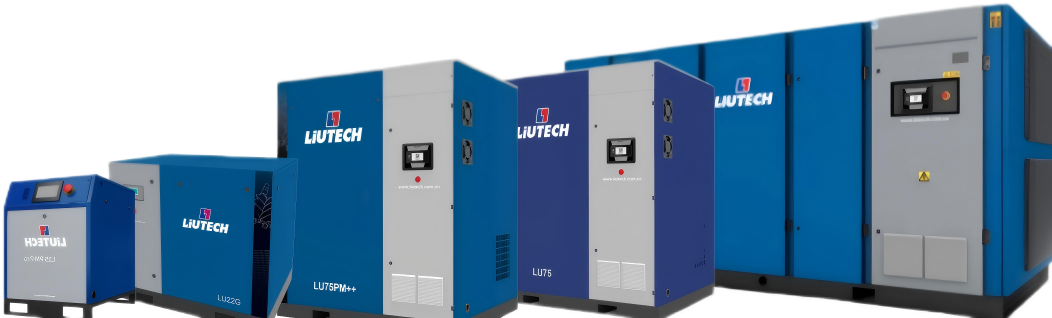

22-315kW | 0.22-70.7 m³/min | 5.5-14 bar |
|
Specific Model Parameter Table
L
LU
LU+
LU PM
LU PM+
LU PMi
Laser Cutting
| Model | Motor Power (kW) |
Rated/Max Working Pressure(bar) |
Capacity FAD (m3/min) |
Noise dB(A) |
Unit Weight (kg) |
Outlet Size | Overall Dimensions LxWxH (mm) |
| L7.5 PM | 7.5 | 7/8.5 | 0.28-1.10 | 67 | 150 | R3/4" | 905x740x1011 |
| 7.5 | 10/10.5 | 0.29-0.92 | 150 | R3/4" | 905x740x1011 | ||
| L11 PM | 11 | 7/8.5 | 0.45-1.65 | 67 | 160 | R3/4" | 905x740x1011 |
| 11 | 10/10.5 | 0.42-1.40 | 160 | R3/4" | 905x740x1011 | ||
| L15 PM | 15 | 7/8.5 | 0.6-2.1 | 67 | 210 | R3/4" | 905x740x1011 |
| 15 | 10/10.5 | 0.6-1.7 | 210 | R3/4" | 905x740x1011 | ||
| L18.5 PM | 18.5 | 7/8.5 | 1.0-3.2 | 69 | 280 | R1" | 1005x895x1279 |
| 18.5 | 10/10.5 | 1.0-2.6 | 280 | R1" | 1005x895x1279 | ||
| L22 PM | 22 | 7/8.5 | 1.0-3.6 | 69 | 290 | R1" | 1005x895x1279 |
| 22 | 10/10.5 | 1.0-3.2 | 290 | R1" | 1005x895x1279 | ||
| L30 PM | 30 | 7/8.5 | 1.0-5.0 | 70 | 320 | R11/2" | 1235x1025x1416 |
| 30 | 10/10.5 | 1.0-4.3 | 320 | R11/2" | 1235x1025x1416 | ||
| L37 PM | 37 | 7/8.5 | 1.8-6.4 | 70 | 390 | R11/2" | 1235x1025x1416 |
| 37 | 10/10.5 | 1.8-5.4 | 400 | R11/2" | 1235x1025x1416 | ||
| L45 PM | 45 | 7/8.5 | 1.8-7.4 | 70 | 410 | R11/2" | 1235x1025x1416 |
| 45 | 10/10.5 | 1.8-6.6 | 410 | R11/2" | 1235x1025x1416 | ||
| L55 PM | 55 | 7/8.5 | 3.0-10.3 | 70 | 724 | G2" | 1475x1100x1650 |
| 55 | 10/10.5 | 2.7-8.4 | 724 | G2" | 1475x1100x1650 | ||
| L75 PM | 75 | 7/8.5 | 3.9-13.0 | 71 | 768 | G2" | 1475x1100x1650 |
| 75 | 10/10.5 | 3.4-11.4 | 768 | G2" | 1475x1100x1650 |
| Model | Motor Power (kW) |
Rated/Max Working Pressure (bar) |
Capacity FAD (m³/min) |
Noise dB(A) |
Unit Weight (kg) |
Outlet Size | Overall Dimensions LxWxH (mm) |
| LU4 | 4 | 8/8.5 | 0.58 | 63 | 152 | G1/2" | 650×650×890 |
| 10/10.5 | 0.51 | ||||||
| LU5.5 | 5.5 | 8/8.5 | 0.82 | 63 | 166 | G1/2" | 650×650×890 |
| 10/10.5 | 0.68 | ||||||
| LU7.5 | 7.5 | 8/8.5 | 1.13 | 63 | 175 | G1/2" | 650×650×890 |
| 10/10.5 | 0.90 | ||||||
| LU11 | 11 | 7/7.5 | 1.79 | 65 | 293 | G1" | 850×790×1260 |
| 8/8.5 | 1.78 | ||||||
| 10/10.5 | 1.36 | ||||||
| 12.5/13 | 1.22 | ||||||
| LU15 | 15 | 7/7.5 | 2.3 | 66 | 341 | G1" | 850×790×1260 |
| 8/8.5 | 2.3 | ||||||
| 10/10.5 | 2.0 | ||||||
| 12.5/13 | 1.6 | ||||||
| LU18 | 18.5 | 7/7.5 | 3.1 | 68 | 364 | G1" | 850×790×1260 |
| 8/8.5 | 3.0 | ||||||
| 10/10.5 | 2.6 | ||||||
| 12.5/13 | 2.1 | ||||||
| LU22 | 22 | 7/7.5 | 3.7 | 68 | 436 | G1" | 1150×850×1000 |
| 8/8.5 | 3.5 | ||||||
| 10/10.5 | 3.0 | ||||||
| 12.5/13 | 2.4 | 364 | 850×790×1260 | ||||
| LU30 | 30 | 7/7.5 | 5.4 | 70 | 559 | G11/2" | 1430×950×1200 |
| 8/8.5 | 5.2 | ||||||
| 10/10.5 | 4.5 | ||||||
| LU37 | 37 | 7/7.5 | 6.2 | 68 | 614 | G11/2" | 1430×950X1200 |
| 8/8.5 | 6.1 | ||||||
| 10/10.5 | 5.1 | ||||||
| LU45 | 45 | 7/7.5 | 8.5 | 69 | 852 | G11/2" | 1546X1197×1500 |
| 8/8.5 | 8.0 | ||||||
| 10/10.5 | 6.8 | ||||||
| LU55 | 55 | 7/7.5 | 10.5 | 72 | 1150 | G2" | 1697×1322X2000 |
| 8/8.5 | 10.0 | ||||||
| 10/10.5 | 8.8 | ||||||
| LU75 | 75 | 7/7.5 | 13.6 | 73 | 1350 | G2" | 1697×1322×2000 |
| 8/8.5 | 13.0 | ||||||
| 10/10.5 | 11.7 | ||||||
| LU90 | 90 | 7/7.5 | 17.0 | 73 | 1465 | G2" | 1697×1322×2000 |
| 8/8.5 | 16.2 | ||||||
| 10/10.5 | 14.5 | ||||||
| LU110 (W) |
110 | 7/7.5 | 21.2 | 79 | 1725(1632) | DN80 |
2052*1325*2000 2050*1299*2000 |
| 8/8.5 | 20.2 | ||||||
| 10/10.5 | 17.8 | ||||||
| 12.5/13 | 15.5 | ||||||
| LU132 (W) |
132 | 7/7.5 | 25 | 79 | 2015(1903) | DN80 |
2052*1325*2000 2050*1299*2000 |
| 8/8.5 | 23.7 | ||||||
| 10/10.5 | 21.3 | ||||||
| 12.5/13 | 18.7 | ||||||
| LU160 (W) |
160 | 7/7.5 | 35.0 | 78(75) | 2860(2630) | DN80 | 2827*1558*2000 |
| 8/8.5 | 33.4 | ||||||
| 10/10.5 | 29.2 | ||||||
| *12.5/13 | 22.5 | ||||||
| LU200 (W) |
200 | 7/7.5 | 41.0 | 80(77) | 3760(3740)/380V 4540(4440)/6KV 4660(4500)/10KV |
DN100 | 3522*1774*1991/380V  2907*1774*1988/380V  3610*2114*2031 /6KV/10KV |
| 8/8.5 | 40.0 | ||||||
| 10/10.5 | 35.0 | ||||||
| *12.5/13 | 30.0 | ||||||
| LU250 (W) |
250 | 7/7.5 | 45.8 | 80(77) | 3760(3740)/380V 4540(4440)/6KV 4600(4500)/10KV |
DN100 | 3522*1774*1991 /380V 2907*1774*1988/380V 3610*2114*2031 /6KV/10KV |
| 8/8.5 | 43.3 | ||||||
| 10/10.5 | 39.0 | ||||||
| *12.5/13 | 35.5 | ||||||
| LU315 (W) |
315 | 7/7.5 | 62.5 | 81(79) | 5700(4743)/380V 5870(5010)/6KV 6390(5110)/10KV |
DN125 |
5141*1893*2353 3491*1880*2100 Water-Cooled |
| 8/8.5 | 60 | ||||||
| 10/10.5 | 55 | ||||||
| LU355 (W) |
355 | 7/7.5 | 68 | 81(79) | 5850(4860)/380V 6020(5150)/6KV 6540(5310)/10KV |
DN125 |
5141*1893*2353 3491*1880*2100 |
| 8/8.5 | 65.5 | ||||||
| 10/10.5 | 60 | ||||||
| LU400 (W) |
400 | 8/8.5 | 69.8 | 81 | 9060(6KV) 9890(10KV) |
DN150 | 4450X2140X2250 |
| 10/10.5 | 60.0 | ||||||
| 12.5/13 | 49.5 | ||||||
| LU450 (W) |
450 | 8/8.5 | 78.0 | 81 | 9125(6KV) 9945(10KV) |
DN150 | |
| 10/10.5 | 67.9 | ||||||
| 12.5/13 | 56.6 | ||||||
| LU500 (W) |
500 | 8/8.5 | 85.8 | 81 | 10050(6KV) 10190(10KV) |
DN150 | |
| 10/10.5 | 75.4 | ||||||
| 12.5/13 | 63.4 | ||||||
| LU560 (W) |
560 | 8/8.5 | 96.5 | 81 | 10100(6KV) 10330(10KV) |
DN150 |
| Model | Motor Power (kW) |
Rated/Max Working Pressure (bar) |
Capacity FAD (m³/min) |
Noise dB(A) |
Unit Weight (kg) |
Outlet Size | Overall Dimensions LxWxH (mm) |
| LU30+ | 30 | 7/7.5 | 5.9 | 66 | 820 | G11/2" | 1720×980X1600 |
| 8/8.5 | 5.5 | ||||||
| 10/10.5 | 5.0 | ||||||
| 12.5/13 | 4.2 | ||||||
| LU37+ | 37 | 7/7.5 | 7.2 | 67 | 850 | G11/2" | 1720×980×1600 |
| 8/8.5 | 6.7 | ||||||
| 10/10.5 | 6.1 | ||||||
| 12.5/13 | 5.1 | ||||||
| LU45+ | 45 | 7/7.5 | 8.4 | 67 | 910 | G11/2" | 1720×980×1600 |
| 8/8.5 | 8.4 | ||||||
| 10/10.5 | 7.8 | ||||||
| 12.5/13 | 6.2 | ||||||
| LU55+ | 55 | 7/7.5 | 11.2 | 68 | 1160 | G2" | 1697X1322X2000 |
| 8/8.5 | 10.6 | ||||||
| 10/10.5 | 9.2 | ||||||
| 12.5/13 | 8.2 | ||||||
| LU75+ | 75 | 7/7.5 | 14.9 | 69 | 1350 | G 2" | 1697X1322X2000 |
| 8/8.5 | 14.1 | ||||||
| 10/10.5 | 12.3 | ||||||
| 12.5/13 | 10.6 | ||||||
| LU110+ (W) |
110 | 7/7.5 | 23.2 | 78(75) | 2805(2620) | DN80 | 2827*1558*2000 |
| 8/8.5 | 21.4 | ||||||
| 10/10.5 | 18.9 | ||||||
| LU132+ (W) |
132 | 7/7.5 | 27.4 | 78(75) | 3100(2880) | DN80 | 2827*1558*2000 |
| 8/8.5 | 26.2 | ||||||
| 10/10.5 | 23 | ||||||
| LU160+ | 160 | 7/7.5 | 32.0 | 79 | 3160 | DN80 | 2827x1558x2000 |
| 8/8.5 | 30.0 | ||||||
| 10/10.5 | 27.0 | ||||||
| LU180+ (W) |
180 | 7/7.5 | 35 | 78 | 5000(4853)/380V | DN125 (DN100) |
3983x2135x2320 3476x2128x2320 |
| 8/8.5 | 33 | ||||||
| 10/10.5 | 30 | ||||||
| LU200+ (W) |
200 | 7/7.5 | 43.7 | 78 | 5500(5000)/380V | DN125 (DN100) |
3983x2135x2320 3476x2128x2320 |
| 8/8.5 | 40.8 | ||||||
| 10/10.5 | 37.0 | ||||||
| LU200+ (W) (6/10KV) |
200 | 7/7.5 | 40.4 | 77 | 5873(4613)/6KV 6003(4743)/10KV |
DN125 | 5141x1893x2353 3491x1880x2100 |
| 8/8.5 | 38.0 | ||||||
| 10/10.5 | 34.5 | ||||||
| LU250++ (W) |
250 | 7/7.5 | 54.3 | 78 | 5603(5150)/380V | DN125 (DN100) |
3983x2135x2320 3476x2128x2320 |
| 8/8.5 | 51.6 | ||||||
| 10/10.5 | 45.0 | ||||||
| LU250+ (W) (6/10KV) |
250 | 7/7.5 | 48.1 | 77 | 5753(4493)/6KV 5773(4513)/10KV |
DN125 | 5141x1893x2353 3491×1880x2100 |
| 8/8.5 | 45.0 | ||||||
| 10/10.5 | 40.8 | ||||||
| LU250+ (W) |
280 | 7/7.5 | 54.0 | 78(78) | 5783(4523)/380V 6073(4813)/6KV 6123(4863)/10KV |
DN125 | 5141*1893*2353 3491*1880*2100 |
| 8/8.5 | 51.0 | ||||||
| 10/10.5 | 43.7 | ||||||
| *12.5/13 | 39.0 |
| Model | Motor Power (kW) |
Rated/Max Working Pressure (bar) |
Capacity FAD (m³/min) |
Noise dB(A) |
Unit Weight (kg) |
Outlet Size | Overall Dimensions LxWxH (mm) |
| LU110 PM (W) |
110 | 7/7.5 | 6.6-23.4 | 78(75) | 2630(2460) | DN80 | 2827*1558*2000 |
| 8/8.5 | 6.6-22.2 | ||||||
| 10/10.5 | 6.3-15.9 | ||||||
| LU132 PM (W) |
132 | 7/7.5 | 7.8-27.5 | 78(75) | 2660(2460) | DN80 | 2827*1558*2000 |
| 8/8.5 | 7.8-26.0 | ||||||
| 10/10.5 | 6.7-22.8 | ||||||
| LU160 PM (W) |
160 | 7/7.5 | 7.6-30.1 | 78(75) | 2860(2800) | DN80 | 2880*1754*1930 |
| 8/8.5 | 7.4-29.3 | ||||||
| 10/10.5 | 7.31-26.2 | ||||||
| LU180 PM (W) |
180 | 7/7.5 | 8.3-32.7 | 78(75) | 2880(2860) | DN80 | 2880*1754*1930 |
| 8/8.5 | 8.1-31.2 | ||||||
| 10/10.5 | 8.04-27.8 | ||||||
| LU200 PM (W) |
200 | 7/7.5 | 8.4-40.0 | 80(77) | 4140(3980) | DN100 | 3607*2124*2028 |
| 8/8.5 | 8.4-39.0 | ||||||
| 10/10.5 | 8.39-31 | ||||||
| LU250 PM(W) | 250 | 7/7.5 | 11.1-42.6 | 80(77) | 4260(4150) | DN100 | 3602*2104*2023 |
| 8/8.5 | 11.1-41 | ||||||
| 10/10.5 | 10.99-36.7 | ||||||
| LU280 PM (W) |
280 | 7/7.5 | 16-52.4 | 80(77) | 5925(5490) | DN125 |
4800*2150*2250 3600*2150*2250 |
| 8/8.5 | 15-50 | ||||||
| 10/10.5 | 13.5-43.7 | ||||||
| LU315 PM (W) |
315 | 7/7.5 | 18.6-62.0 | 81(79) | 6680(5740) | DN125 |
5141*1893*2353 3491*1880*2100 |
| 8/8.5 | |||||||
| 10/10.5 | |||||||
| LU355 PM (W) |
355 | 7/7.5 | 20.3-67.7 | 79 | 5773 | DN125 | 3491*1880*2100 |
| 8/8.5 | |||||||
| 10/10.5 |
| Model | Motor Power (kW) |
Rated/Max Working Pressure (bar) |
Capacity FAD (m³/min) |
Noise dB(A) |
Unit Weight (kg) |
Outlet Size | Overall Dimensions LxWxH (mm) |
|
| LU7 PM+ | 7.5 | 7 / 7.5 | 0.27 | 1.2 | 67 | 230 | G 3/4" | 1100 X 850 X 1080 |
| 8 / 8.5 | 0.2 | 1.1 | ||||||
| 10 / 10.5 | 0.2 | 1.0 | ||||||
| 12.5 / 13 | 0.3 | 0.8 | ||||||
| LU11 PM+ | 11 | 7 / 7.5 | 0.38 | 1.81 | 67 | 231 | G 3/4" | 1100 X 850 X 1080 |
| 8 / 8.5 | 0.3 | 1.7 | ||||||
| 10 / 10.5 | 0.3 | 1.5 | ||||||
| 12.5 / 13 | 0.5 | 1.3 | ||||||
| LU15 PM+ | 15 | 7 / 7.5 | 0.5 | 2.2 | 67 | 241 | G 3/4" | 1100 X 850 X 1080 |
| 8 / 8.5 | 0.4 | 2.1 | ||||||
| 10 / 10.5 | 0.4 | 1.9 | ||||||
| 12.5 / 13 | 0.5 | 1.6 | ||||||
| LU18 PM+ | 18.5 | 7 / 7.5 | 0.7 | 3.4 | 69 | 313 | G 1" | 1250 X 950 X 1180 |
| 8 / 8.5 | 0.7 | 3.4 | ||||||
| 10 / 10.5 | 0.6 | 2.9 | ||||||
| 12.5 / 13 | 0.5 | 2.5 | ||||||
| LU22 PM+ | 22 | 7 / 7.5 | 0.7 | 3.8 | 69 | 321 | G 1" | 1250 X 950 X 1180 |
| 8 / 8.5 | 0.7 | 3.7 | ||||||
| 10 / 10.5 | 0.7 | 3.5 | ||||||
| 12.5 / 13 | 0.6 | 2.9 | ||||||
| LU30 PM+ | 30 | 7 / 7.5 | 1.4 | 5.7 | 70 | 405 | G 1 1/2" | 1330 X 950 X 1200 |
| 8 / 8.5 | 1.4 | 5.3 | ||||||
| 10 / 10.5 | 1.4 | 4.8 | ||||||
| 12.5 / 13 | 1.4 | 4.0 | ||||||
| LU37 PM+ | 37 | 7 / 7.5 | 1.9 | 6.6 | 70 | 405 | G 1 1/2" | 1330 X 950 X 1200 |
| 8 / 8.5 | 1.9 | 6.2 | ||||||
| 10 / 10.5 | 1.9 | 5.7 | ||||||
| 12.5 / 13 | 1.9 | 4.9 | ||||||
| LU45 PM+ | 45 | 7 / 7.5 | 2.0 | 8.7 | 70 | 755 | G 1 1/2" | 1720 X 980 X 1600 |
| 8 / 8.5 | 2.0 | 8.1 | ||||||
| 10 / 10.5 | 2.0 | 7.5 | ||||||
| 12.5 / 13 | 2.5 | 6.1 | ||||||
| LU55 PM+ | 55 | 7 / 7.5 | 2.7 | 11.4 | 70 | 870 | G 2" | 1697 X 1322 X 2000 |
| 8 / 8.5 | 2.7 | 10.9 | ||||||
| 10 / 10.5 | 2.4 | 9.8 | ||||||
| 12.5 / 13 | 2.4 | 8.3 | ||||||
| LU75 PM+ | 75 | 7 / 7.5 | 3.2 | 13.1 | 71 | 885 | G 2" | 1697 X 1322 X 2000 |
| 8 / 8.5 | 3.2 | 12.9 | ||||||
| 10 / 10.5 | 3.2 | 11.2 | ||||||
| 12.5 / 13 | 2.6 | 9.9 | ||||||
| LU75 PM++ | 75 | 7 / 7.5 | 3.5 | 15.3 | 75 | 1085 | G 2" | 1697 X 1322 X 2000 |
| 8 / 8.5 | 3.5 | 14.3 | ||||||
| 10 / 10.5 | 2.9 | 13.0 | ||||||
| 12.5 / 13 | 2.9 | 11.2 | ||||||
| LU90 PM+ | 90 | 7 / 7.5 | 4.2 | 18.0 | 75 | 1100 | G 2" | 1697 X 1322 X 2000 |
| 8 / 8.5 | 4.2 | 17.2 | ||||||
| 10 / 10.5 | 3.3 | 15.4 | ||||||
| 12.5 / 13 | 3.3 | 13.4 | ||||||
| LU110(W)PM+ | 110 | 7/7.5 | 6.4-23.4 | 77(74) | 2410(1970) | DN80 | 2827x1558x2000 | |
| 8/8.5 | 6.4-22.0 | |||||||
| 10/10.5 | 6.1-19.5 | |||||||
| LU132(W)PM+ | 132 | 7/7.5 | 6.4-27.5 | 77(74) | 2250(2060) | DN80 | 2827x1558x2000 | |
| 8/8.5 | 6.4-26.0 | |||||||
| 10/10.5 | 6.3-22.8 | |||||||
| LU160(W)PM+ | 160 | 7/7.5 | 5.8-33.0 | 80(77) | 3240(3240) | DN100 | 3607x2124x2030 | |
| 8/8.5 | 5.8-31.2 | |||||||
| 10/10.5 | 5.8-28.2 | |||||||
| LU200(W)PM+ | 200 | 7/7.5 | 8.7-43.7 | 78 | 5100(4600) | DN125 (DN100) |
4026x2135x2320 3576x2128x2320 |
|
| 8/8.5 | ||||||||
| 10/10.5 | 7.4-37.0 | |||||||
| LU250(W)PM++ | 250 | 7/7.5 | 10.9-54.3 | 78 | 5300(4850) | DN125 (DN100) |
4026x2135×2320  3576x2128x2320  |
|
| 8/8.5 | ||||||||
| 10/10.5 | 9.0-45.0 | |||||||
| Model | Motor Power (kW) |
Rated/Max Working Pressure (bar) |
Capacity FAD (m³/min) |
Noise dB(A) |
Unit Weight (kg) |
Outlet Size | Overall Dimensions LxWxH (mm) |
|
| LU7 PMi | 7.5 | 7 / 7.5 | 0.49 | 1.25 | 69 | 195 | G 3/4" | 895 X 850 X 1050 |
| 8 / 8.5 | 0.49 | 1.20 | ||||||
| 10 /10.5 | 0.43 | 1.10 | ||||||
| LU11 PMi | 11 | 7 / 7.5 | 0.55 | 1.93 | 69 | 195 | G 3/4" | 895 X 850 X 1050 |
| 8 / 8.5 | 0.55 | 1.90 | ||||||
| 10 /10.5 | 0.43 | 1.62 | ||||||
| LU15 PMi | 15 | 7 / 7.5 | 0.7 | 2.5 | 68 | 215 | G 1" | 995 X 850 X 1200 |
| 8 / 8.5 | 0.7 | 2.4 | ||||||
| 10 /10.5 | 0.7 | 2.1 | ||||||
| LU18.5 PMi | 18.5 | 7 / 7.5 | 0.9 | 3.3 | 70 | 245 | G 1" | 995 X 850 X 1200 |
| 8 / 8.5 | 0.9 | 3.2 | ||||||
| 10 /10.5 | 0.8 | 2.7 | ||||||
| LU22 PMi | 22 | 7 / 7.5 | 1.2 | 4.1 | 69 | 335 | G 1 1/2" | 1158x1050x1350 |
| 8 / 8.5 | 1.2 | 4.0 | ||||||
| 10 /10.5 | 1.1 | 3.4 | ||||||
| LU30 PMi | 30 | 7 / 7.5 | 1.6 | 5.7 | 70 | 370 | G 1 1/2" | 1158x1050x1350 |
| 8 / 8.5 | 1.6 | 5.5 | ||||||
| 10 /10.5 | 1.5 | 4.8 | ||||||
| LU37 PMi | 37 | 7 / 7.5 | 2.3 | 7.0 | 70 | 495 | G 1 1/2" | 1246 X 1197 X 1500 |
| 8 / 8.5 | 2.3 | 6.7 | ||||||
| 10 /10.5 | 2.1 | 5.6 | ||||||
| LU45 PMi | 45 | 7 / 7.5 | 1.8 | 8.5 | 71 | 530 | G 1 1/2" | 1246 X 1197 X 1500 |
| 8 / 8.5 | 1.7 | 8.1 | ||||||
| 10 /10.5 | 1.7 | 6.8 | ||||||
| LU55 PMi | 55 | 7 / 7.5 | 2.7 | 11.0 | 75 | 840 | G 2" | 1656 X 1089 X 1840 |
| 8 / 8.5 | 2.7 | 10.5 | ||||||
| 10 /10.5 | 2.4 | 9.4 | ||||||
| LU75 PMi | 75 | 7 / 7.5 | 3.2 | 13.1 | 75 | 865 | G 2" | 1656 X 1089 X 1840 |
| 8 / 8.5 | 3.2 | 12.6 | ||||||
| 10 /10.5 | 2.6 | 11.2 | ||||||
| LU90 PMi | 90 | 7 / 7.5 | 5.3 | 17.4 | 75 | 1520 | G 2" | 1806 X 1089 X 1840 |
| 8 / 8.5 | 5.3 | 16.4 | ||||||
| 10 /10.5 | 4.6 | 14.5 | ||||||
| LU110(W)PMi | 110 | 7/7.5 | 5.2-20.7 | 82(79) | 1490(1393) | DN80 |
2052*1325*2000 2050*1299*2000 |
|
| 8/8.5 | ||||||||
| 10/10.5 | 6.1-17.6 | |||||||
| 13/13.5 | ||||||||
| LU132(W)PMi | 132 | 7/7.5 | 5.9-24.6 | 82(79) | 1580(1473) | DN80 |
2052*1325*2000 2050*1299*2000 |
|
| 8/8.5 | ||||||||
| 10/10.5 | 6.1-20.8 | |||||||
| 13/13.5 | ||||||||
| Model | Motor Power (kW) |
Rated/Max Working Pressure (bar) |
Capacity FAD (m³/min) |
Noise dB(A) |
Unit Weight (kg) |
Outlet Size | Overall Dimensions LxWxH (mm) |
| L15-15 PM | 15 | 15/15.5 | 0.52-1.4 | 67 | 240 | R3/4" | 905x740x1011 |
| L15-15 PM TMDD | 15 | 15/15.5 | 0.52-1.4 | 67 | 515 | G1" | 1875×900x1651 |
| L22-15 PM | 22 | 15/15.5 | 0.63-2.1 | 69 | 260 | R1" | 1005x895x1279 |
| L22-15 PM TMDD | 22 | 15/15.5 | 0.63-2.1 | 69 | 585 | G1" | 1875×920x1918 |
Industry & Application
Oil & Gas
Reliable compressed air for drilling, pipeline maintenance, and on-site tools.
Mining & Quarrying
Compressed air for ventilation, drilling, and material handling in harsh mining conditions.
Manufacturing & Industrial
Drives production lines, pneumatic tools, and automation equipment efficiently.
Construction & Infrastructure
Powers pneumatic tools, concrete vibration, sandblasting, and other construction applications.
Utilities & Power Generation

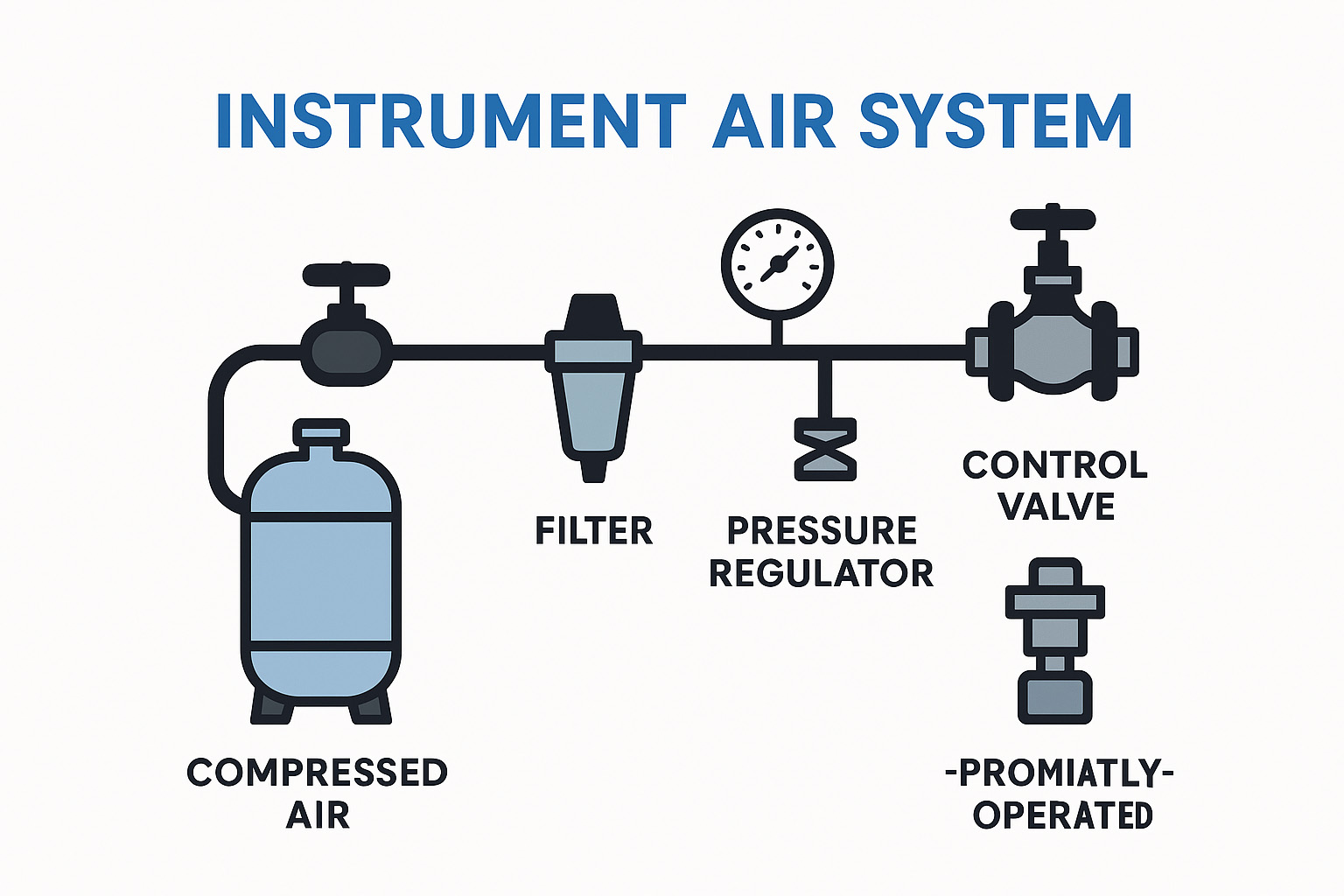

Supplies stable air for instruments, control systems, and maintenance in power plants.

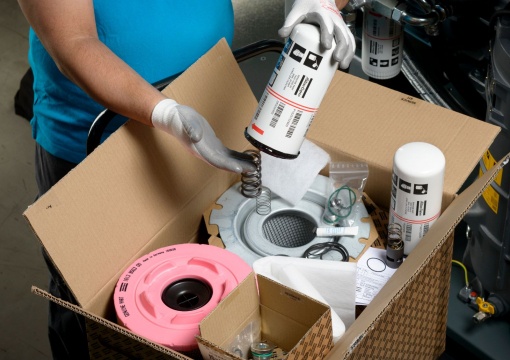

Spare Parts
Ask For A Quick Quote
If you are looking for more information on our services, or how we could potentially help, we would love to hear from you!
CLOSE
High Standard
Superior Quality
CLOSE
High Standard
Superior Quality
CLOSE
High Standard
Superior Quality
