Powerful, Mobile, and Built for Tough Environments

Designed for off-grid and heavy-duty applications, delivering reliable compressed air anytime, anywhere with high efficiency and durability.
Contact our expert

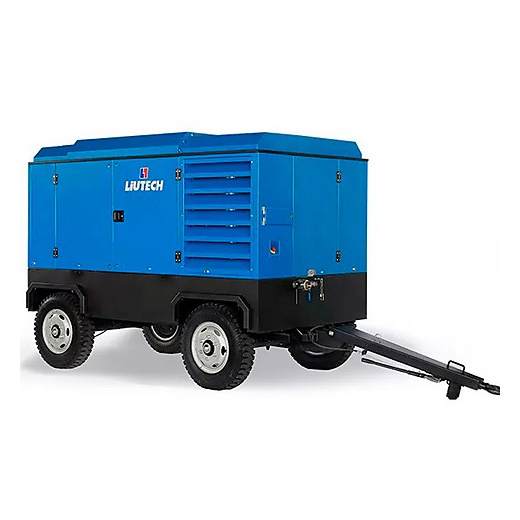

Diesel Portable Air Compressor
Contact us

Feature

  • Multiple Engine Brand Options
    Equipped with leading international engine brands, offering flexible configurations to meet different performance and budget requirements.
  • Original Atlas Copco Air End
    High-efficiency and durable air end ensuring reliable performance, energy savings, and long service life.
  • Original & OEM Solutions
    Genuine components and flexible OEM configurations available to suit various project and branding needs.
  • High Pressure & Wide Range
    Available from 5 to 40 bar, ideal for drilling, blasting, and high-demand industrial applications.
  • Heavy-Duty & Reliable
    Designed to operate in harsh environments including high temperatures, dusty conditions, and remote locations.
  • Portable & Easy Operation
    Skid-mounted or trailer-mounted design for convenient transport and quick deployment on-site.
  • Fast Delivery
    Short lead time to support urgent projects and fast-moving rental market demand.

Brand Model Parameter Table

Metric
Imperial

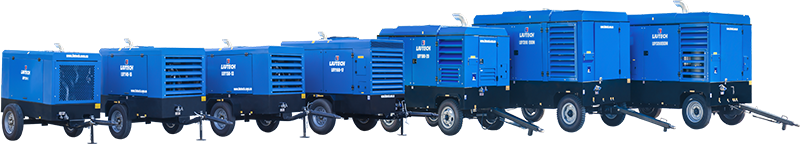

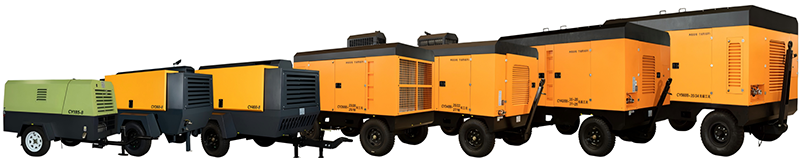

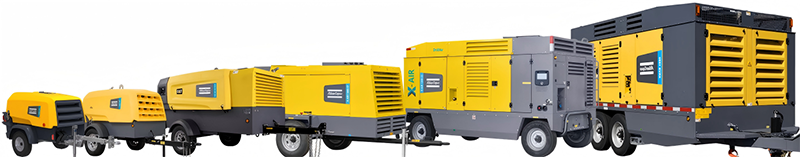

Brand Flow Range Pressure Range Reference Photo

185-1600 cfm 100-500 psi

115-1300 cfm 115-500 psi

115-1550 cfm 75-510 psi

Brand Flow Range Pressure Range Reference Photo

5-45 m³/min 7-34 bar

3.5-40 m³/min 8-34 bar

3.5-43 m³/min 5-35 bar

Common Models

Standard

Specific Model Parameter Table

33-118kW 45-160hp

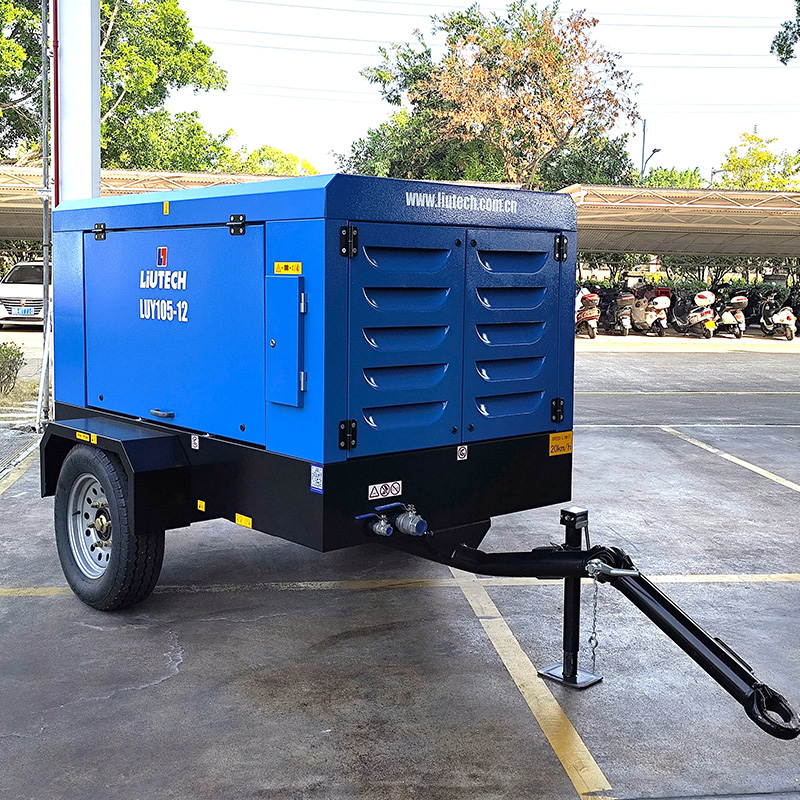

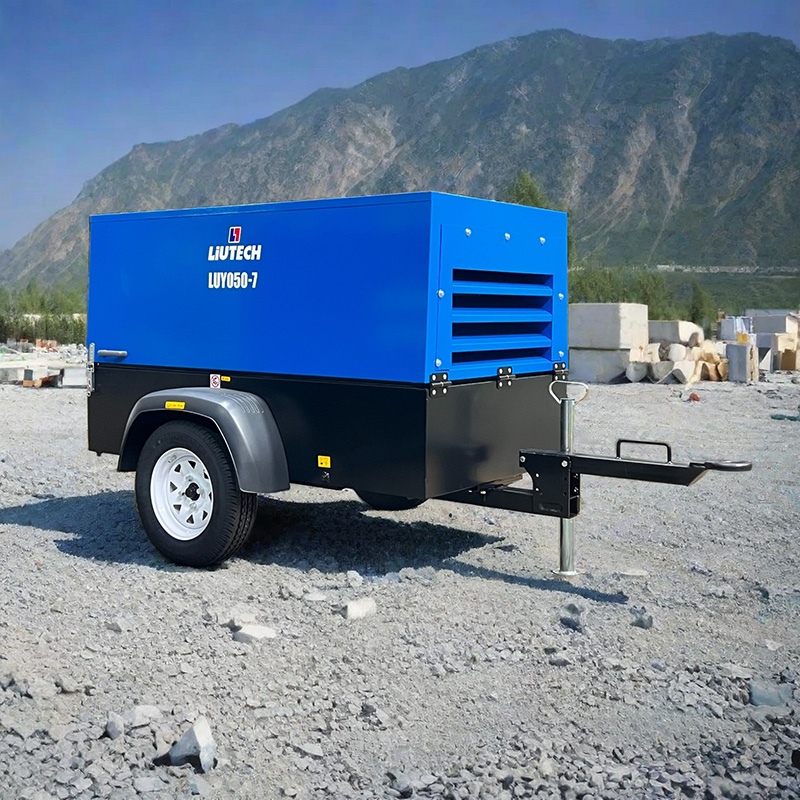

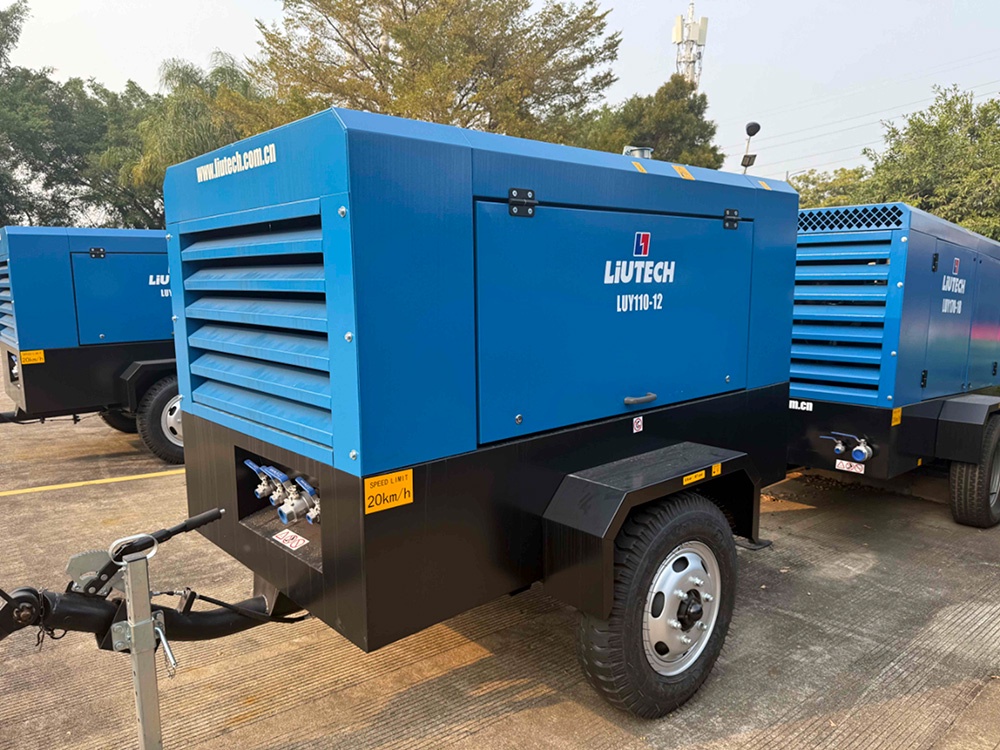

TYPE LUY050-7 LUY105-12 LUY110-12 LUY125-7 LUY120-7 LUY120-12
Working pressure,bar(psi) 7(100) 12(175) 12(175) 7(100) 7(100) 12(175)
Flow(L/s | cfm | m3/min) 83 | 175 | 5 175 | 375 | 10.5 183 | 385 | 11 208 | 440 | 12.5 200 | 425 | 12 200 | 425 | 12
Compressor stage 1 1 1 1 1 1
Noise level(at 7m distance,dBA) 70±3 81±3 79±3 79±3 81±3 83±3
Fuel tank capacity(L) 67 185 185 185 120 120
Compressor oil capacity(L) 8 26 26 26 26 26
Outlet valves,qty x size 3xG3/4 1XG1 1/2
1×G3/4		 1×G1 1/2
3×G3/4		 1×G1 1/2
3xG3/4		 1XG1 1/2
1×G3/4		 1XG1 1/2
1×G3/4
ENGINE
Engine exhaust emission China GIII China GIl Tier 2 Tier 2 China GIlI China GIlI
Engine brand Kubota Yuchai Cummins Cummins Yuchai Yuchai
Engine model V1505T YC4A125Z
-T20		 4BTAA3.9
-C125		 4BTA3.9
-C125		 YC4A130
-H311		 YC4A160
-H300
Engine power(kW) 33 92 93 93 96 118
Max.engine speed(rpm) 3000 2300 2300 2300 2300 2200
Unloading engine speed(rpm) 1850 1400 1400 1400 1400 1400
Engine type Mechanical Mechanical Mechanical Mechanical Electronical Electronical
DIMENSION &WEIGHT
Length(mm) 1848 2225 2235 2235 2350 2330
Width(mm) 1040 1385 1350 1350 1300 1300
Height(mm) 1154 1550 1650 1650 1550 1600
Weight(kg) 650 1450 1300 1300 1470 1470
DIMENSION &WEIGHT
Length(mm) 2700 3435 2800 2800 2510 2400
Width(mm) 1350 1815 1790 1790 1790 1800
Height(mm) 1310 1885 1930 1930 1830 2120
Weight(kg) 750 1510 1550 1550 1650 1560

140-176kW 190-240hp

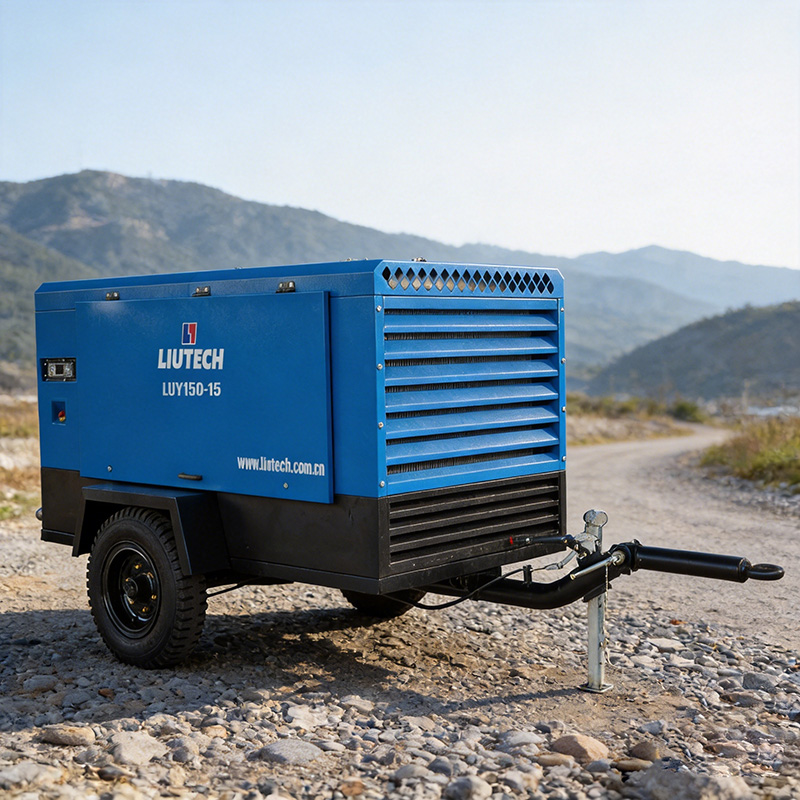

TYPE LUY150-13 LUY150-15 LUY130-15 LUY150-17 LUY170-18 LUY200-10
Working pressure,bar(psi) 13(185) 15(215) 15(215) 17(250) 18(260) 10(150)
Flow(L/s | cfm | m3/min) 250 | 530 | 15 250 | 530 | 15 217 | 460 | 13 250 | 530 | 15 283 | 600 | 17 333 | 710 | 20
Compressor stage 1 1 1 1 2 1
Noise level(at 7m distance,dBA) 83±3 83±3 79±3 87 83±3 83±3
Fuel tank capacity(L) 180 180 180 250 300 250
Compressor oil capacity(L) 30 30 30 45 43 55
Outlet valves,qty x size 1XG1 1/2
1×G3/4		 1XG1 1/2
1×G3/4		 1×G1 1/2
3xG3/4		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2
ENGINE
Engine exhaust emission China GIlI China GIII Tier 2 China GIlI China GIlI ChinaGl
Engine brand Yuchai Cummins Cummins Yuchai Yuchai Yuchai
Engine model YC6J190
-T304		 QSB5.9
-C190		 6BTAA5.9
-C205		 YC6J220
-T300		 YC6J220
-T300		 YC6A240
-H301
Engine power(kW) 140 142 150 162 162 176
Max.engine speed(rpm) 2080 2080 2000 2050 2000 1950
Unloading engine speed(rpm) 1400 1400 1400 1300 1300 1200
Engine type Electronical Electronical Mechanical Electronical Electronical Electronical
DIMENSION &WEIGHT
Length(mm) 2750 2750 2750 2861 2858 2710
Width(mm) 1500 1500 1500 1500 2004 1635
Height(mm) 1900 1900 1900 1971 1800 2180
Weight(kg) 1790 1790 1790 2000 2400 2420
DIMENSION &WEIGHT
Length(mm) 3000 3000 3000 3000 4155 4322
Width(mm) 2000 1990 1990 2000 2060 1950
Height(mm) 2200 2200 2200 2190 2180 2270
Weight(kg) 1850 1880 1880 2200 2500 2685

176-194kW 240-260hp

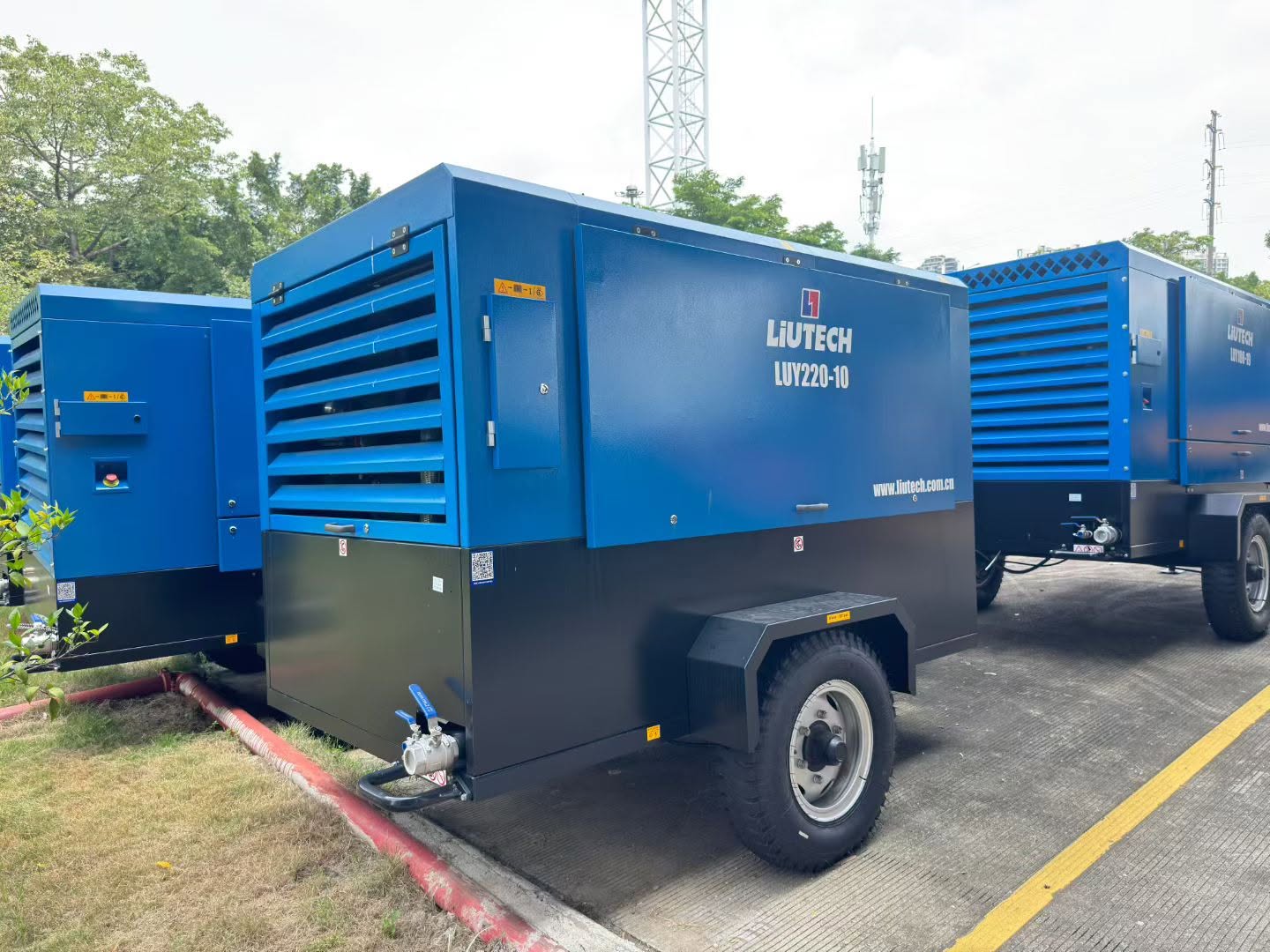

TYPE LUY220-8 LUY210-17 LUY170-17 LUY180-20 LUY190-20 LUY220-10
Working pressure,bar(psi) 8(120) 17(250) 17(250) 20(290) 20(290) 10(145)
Flow(L/s | cfm | m3/min) 367 | 777 | 22 350 | 740 | 21 283 | 600 | 17 300 | 635 | 18 317 | 670 | 19 375 | 800 | 22
Compressor stage 1 2 1 2 2 1
Noise level(at 7m distance,dBA) 83±3 83±3 79±3 83±3 83±3 86±3
Fuel tank capacity(L) 250 300 300 325 325 300
Compressor oil capacity(L) 55 55 55 60 60 28
Outlet valves,qty x size 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2
ENGINE
Engine exhaust emission China GlI China Gl Tier2 China GIlI China GIII Tier 2
Engine brand Yuchai Yuchai Cummins Cummins Cummins Cummins
Engine model YC6A240
-H301		 YC6A260
-H300		 6CTA8.3
-C260		 QSB6.7
-C260-32		 QSC8.3
-C260-3		 6CTA8.3
-C260
Engine power(kW) 176 191 194 194 194 194
Max.engine speed(rpm) 1950 1900 2000 2000 1800 2200
Unloading engine speed(rpm) 1200 1200 1500 1300 1200 1500
Engine type Electronical Electronical Mechanical Electronical Electronical Mechanical
DIMENSION &WEIGHT
Length(mm) 2710 2926 2726 3200 3200 2726
Width(mm) 1635 1660 1605 1670 1670 1605
Height(mm) 2180 1920 1850 1980 1980 1850
Weight(kg) 2420 3000 2380 3310 3310 2380
DIMENSION &WEIGHT
Length(mm) 4322 4404 4365 4550 4550 4365
Width(mm) 1950 1950 1950 1770 1770 1950
Height(mm) 2270 2296 2260 2370 2370 2260
Weight(kg) 2685 3330 2685 3920 3920 2685

194-242kW 260-325hp



TYPE LUY235-9 LUY180-19 LUY215-21 LUY230-14 LUY250-12 LUY270-10
Working pressure,bar(psi) 9(130) 19(275) 21(300) 14(200) 12(175) 10(145)
Flow(L/s | cfm | m3/min) 392 | 830 | 23.5 300 | 635 | 18 363 | 770 | 21.8 383|815|23 417 | 880 | 25 450 | 955 | 27
Compressor stage 1 2 2 1 1 1
Noise level(at 7m distance,dBA) 79±3 79±3 79±3 79±3 79±3 79±3
Fuel tank capacity(L) 300 300 512 470 470 470
Compressor oil capacity(L) 55 55 65 65 65 65
Outlet valves,qty x size 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2
ENGINE
Engine exhaust emission Tier 2 Tier 2 Tier 2 China GIlI China GIlI China GIlI
Engine brand Cummins Cummins Cummins Cummins Cummins Cummins
Engine model 6CTA8.3
-C260		 6CTA8.3
-C260		 6LTAA8.9
-C325		 QSL8.9
-C325-30		 QSL8.9
-C325-30		 QSL8.9
-C325-30
Engine power(kW) 194 194 232 242 242 242
Max.engine speed(rpm) 2000 2060 2000 2000 2000 2000
Unloading engine speed(rpm) 1500 1400 1300 1300 1300 1300
Engine type Mechanical Mechanical Mechanical Electronical Electronical Electronical
DIMENSION &WEIGHT
Length(mm) 2776 3020 3850 3985 3985 3985
Width(mm) 1660 1650 1800 1800 1800 1800
Height(mm) 1850 2140 2200 2200 2200 2200
Weight(kg) 2380 2800 4250 4235 4235 4235
DIMENSION &WEIGHT
Length(mm) 3780 4470 5620 5260 5260 5260
Width(mm) 1950 1960 2040 1800 1800 1800
Height(mm) 2260 2535 2660 2630 2630 2630
Weight(kg) 2990 3050 5200 4835 4835 4835

242-295kW 325-400hp

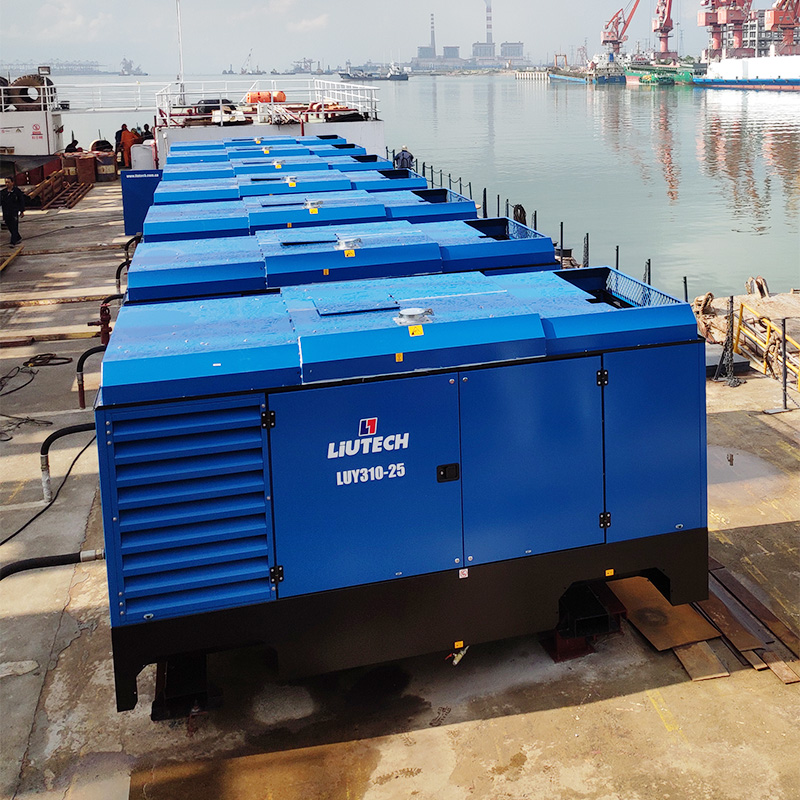

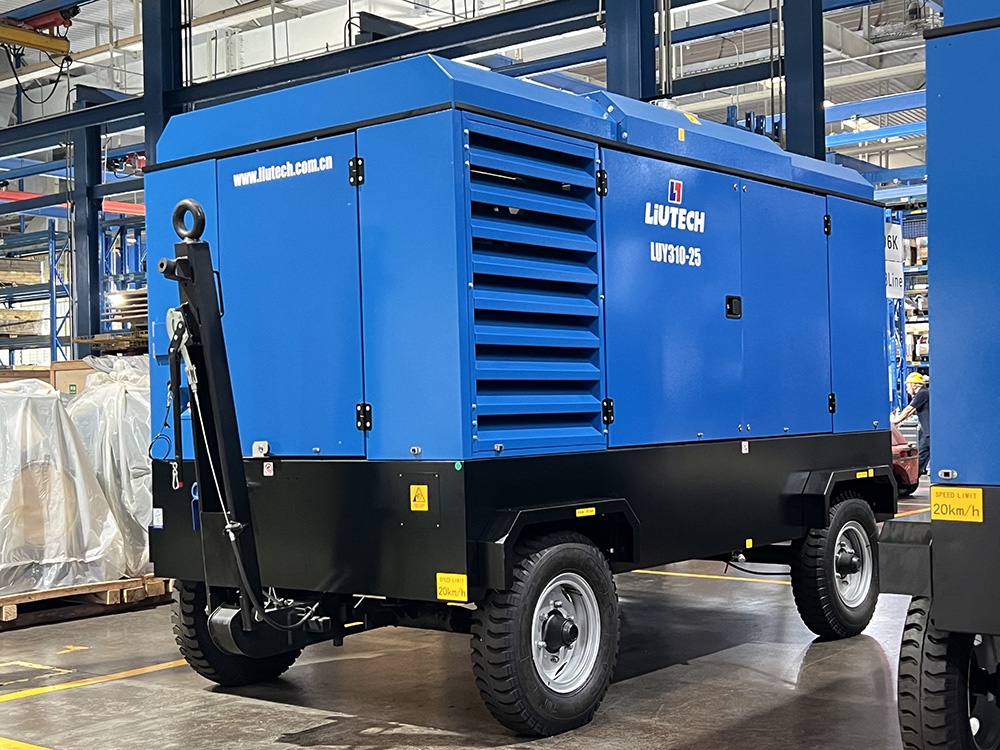

TYPE LUY290-9 LUY260-21 LUY270-18 LUY210-25 LUY310-25 LUY330-25
Working pressure,bar(psi) 8.6(125) 23(330) 18(260) 25(360) 25(360) 25(360)
Flow(L/s | cfm | m3/min) 483 | 1025 | 29 433 | 920 | 26 450 | 955 | 27 358 | 760 | 21.5 517 | 1100 | 31 500 | 1060 | 30
Compressor stage 1 2 2 2 2 2
Noise level(at 7m distance,dBA) 79±3 83±3 83±3 83±3 82±3 83±3
Fuel tank capacity(L) 470 450 450 450 500 450
Compressor oil capacity(L) 65 75 75 75 75 85
Outlet valves,qty x size 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2
ENGINE
Engine exhaust emission China GIII China GIlI China GIII China GIII China GIlI China Gl
Engine brand Cummins Cummins Cummins Cummins Yuchai Yuchai
Engine model QSL8.9
-C325-30		 QSL8.9
-C360-30		 QSL8.9
-C360-30		 QSL8.9
-C360-30		 6MK400
-H300		 YCK09400
-T30
Engine power(kW) 242 264 264 264 295 295
Max.engine speed(rpm) 2000 1900 1900 1900 1900 1900
Unloading engine speed(rpm) 1300 1300 1300 1300 1300 1300
Engine type Electronical Electronical Electronical Electronical Electronical Electronical
DIMENSION &WEIGHT
Length(mm) 3985 3520 3520 3520 3840 3520
Width(mm) 1800 1800 1800 1800 1800 1800
Height(mm) 2200 2150 2150 2150 2250 2150
Weight(kg) 4235 3900 3900 3900 4550 4000
DIMENSION &WEIGHT
Length(mm) 5260 5200 5200 5200 5260 5250
Width(mm) 1800 2250 2250 2250 2040 2120
Height(mm) 2630 2580 2580 2580 2690 2600
Weight(kg) 4835 4200 4200 4200 5150 4180

353-410kW 475-550hp

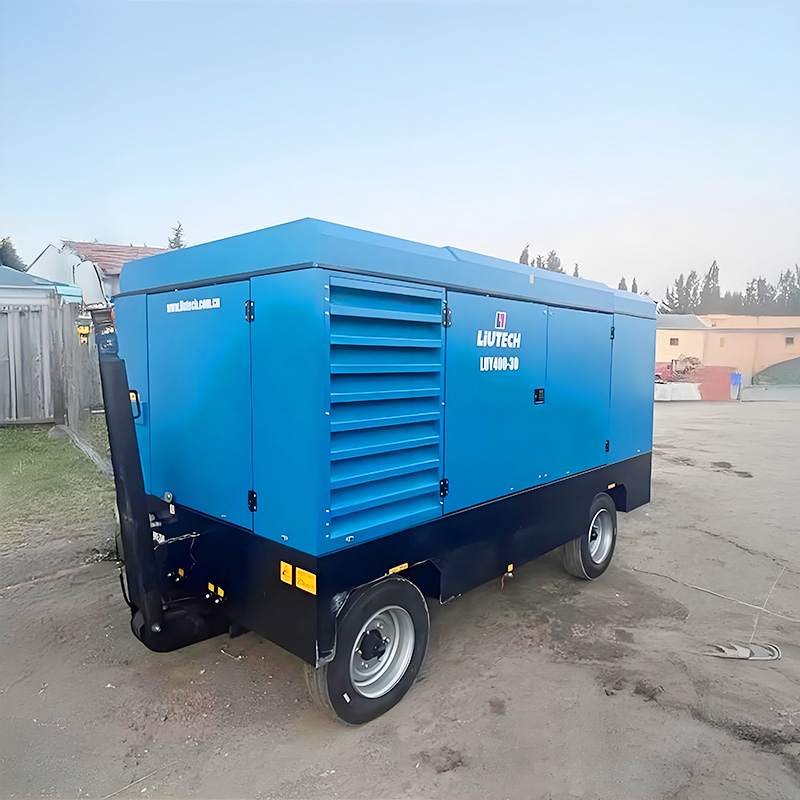

TYPE LUY330-30 LUY350-28 LUY350-34 LUY400-25 LUY400-30 LUY450-20
Working pressure,bar(psi) 30(435) 28(400) 34(500) 25(360) 30(435) 20(290)
Flow(L/s | cfm | m3/min) 550 | 1168 | 33 583 | 1250 | 35 583 | 1240 | 35 667 | 415 | 40 667 | 415 | 40 750 | 1600 | 45
Compressor stage 2 2 2 2 2 2
Noise level(at 7m distance,dBA) 83±3 83±3 83±3 83±3 83±3 83±3
Fuel tank capacity(L) 710 710 710 710 710 710
Compressor oil capacity(L) 85 85 100 100 100 100
Outlet valves,qty x size 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2		 1xG3/4
1xG2
ENGINE
Engine exhaust emission China GIlI China GIlI China GlII China GIlI China GIII China GlII
Engine brand Yuchai Yuchai Cummins Cummins Cummins Cummins
Engine model YCK11480 YC6K500
-KT3		 QSZ13
-C550-30		 QSZ13
-C550-30		 QSZ13
-C550-30		 QSZ13
-C550-30
Engine power(kW) 353 368 410 410 410 410
Max.engine speed(rpm) 1950 1850 1750 1850 1850 1800
Unloading engine speed(rpm) 1300 1300 1300 1300 1300 1300
Engine type Electronical Electronical Electronical Electronical Electronical Electronical
DIMENSION &WEIGHT
Length(mm) 3950 3900 4350 4350 4350 4350
Width(mm) 2100 2100 2100 2100 2100 2100
Height(mm) 2400 2450 2320 2320 2320 2320
Weight(kg) 4250 4550 5150 5150 5150 5150
DIMENSION &WEIGHT
Length(mm) 5550 5590 6120 6120 6120 6120
Width(mm) 2100 2100 2100 2100 2100 2100
Height(mm) 2700 2660 2570 2570 2570 2570
Weight(kg) 4600 5050 5750 5750 5750 5750

Industry & Application

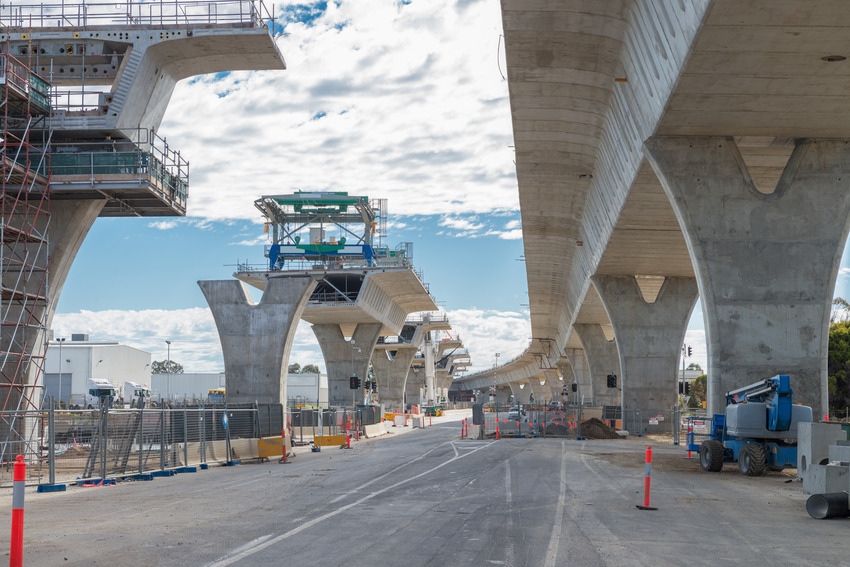

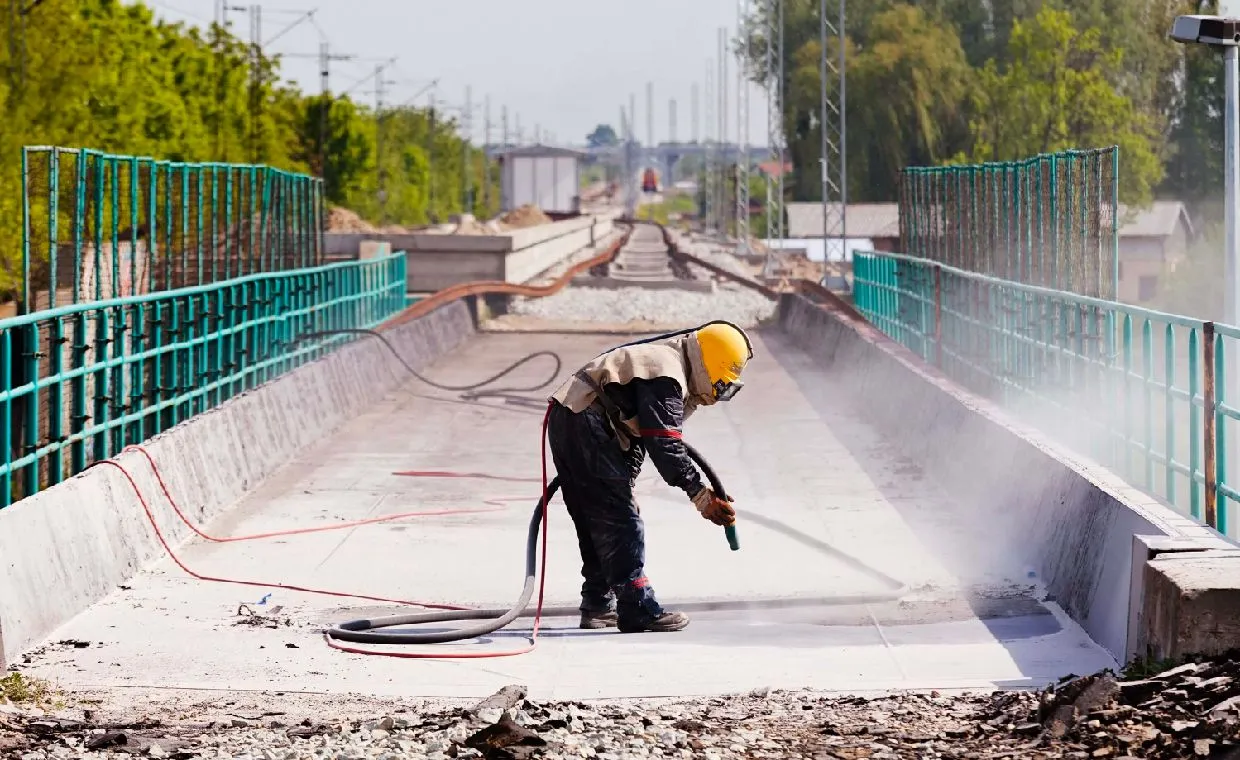

Construction & Infrastructure Projects

Provides compressed air for jackhammers, road breaking, sandblasting, and large-scale infrastructure works in off-grid environments.

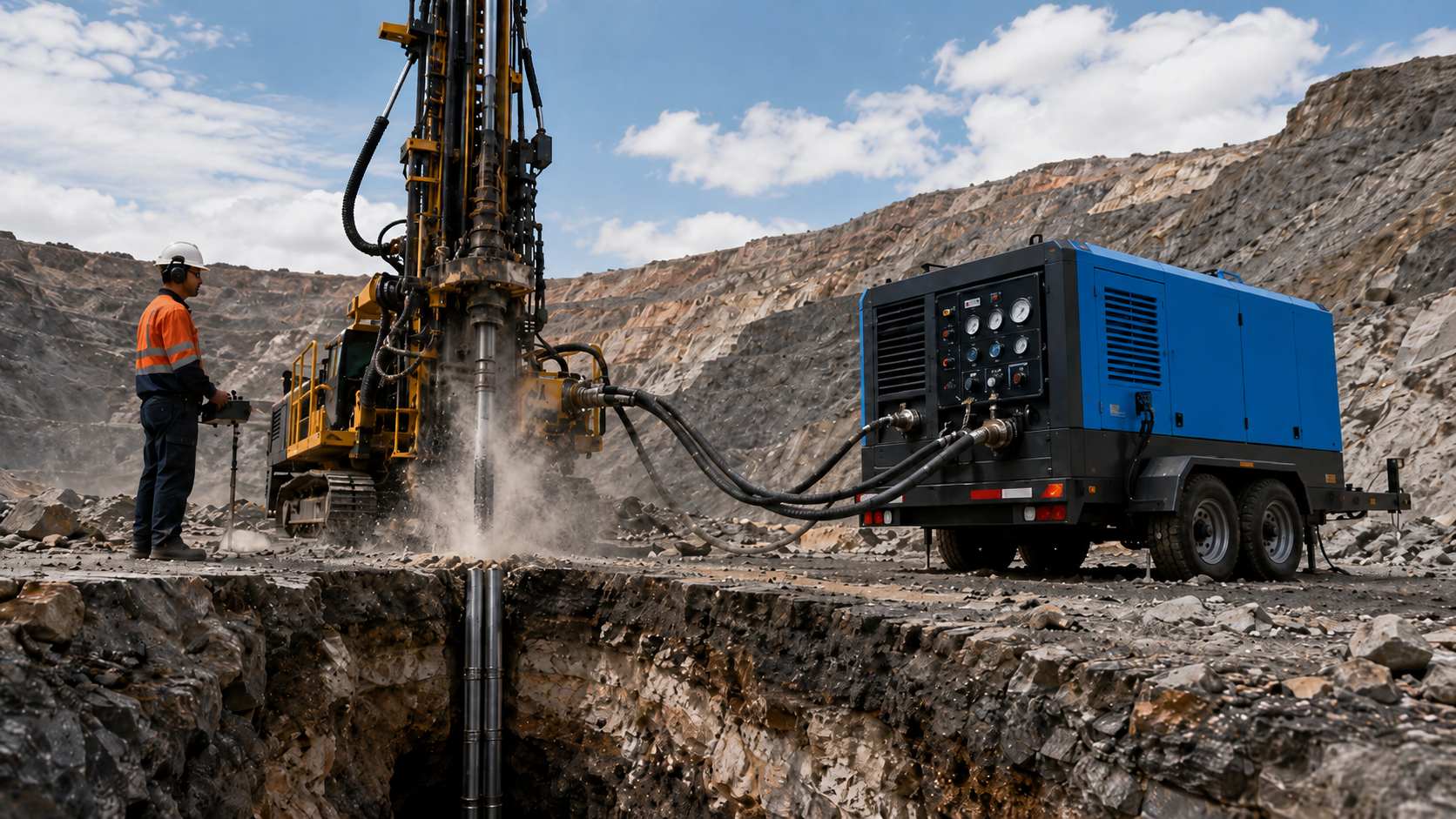

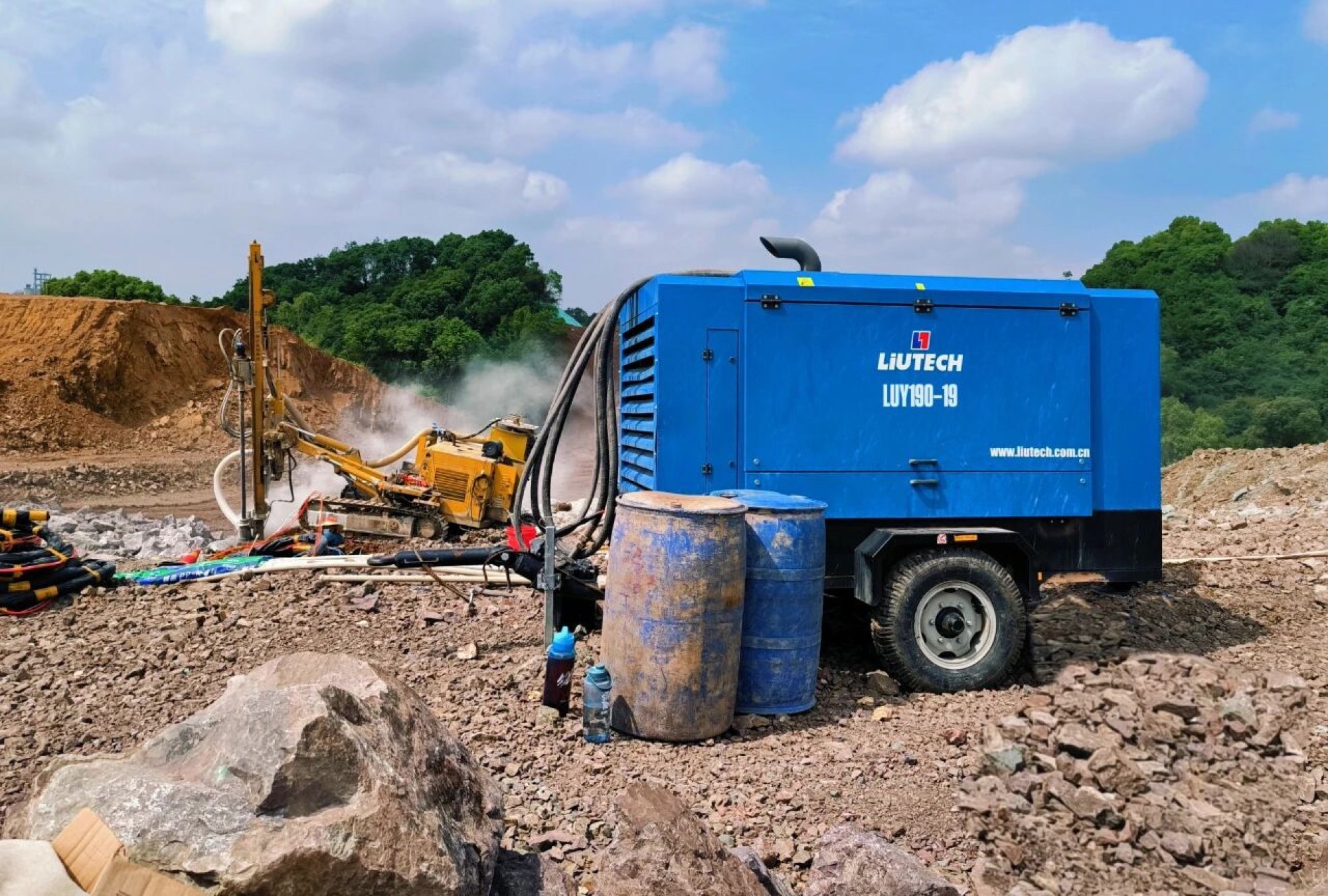

Mining & Quarrying

High-pressure air supply for DTH drilling, blasting, and exploration in remote mining operations where electricity is not available.

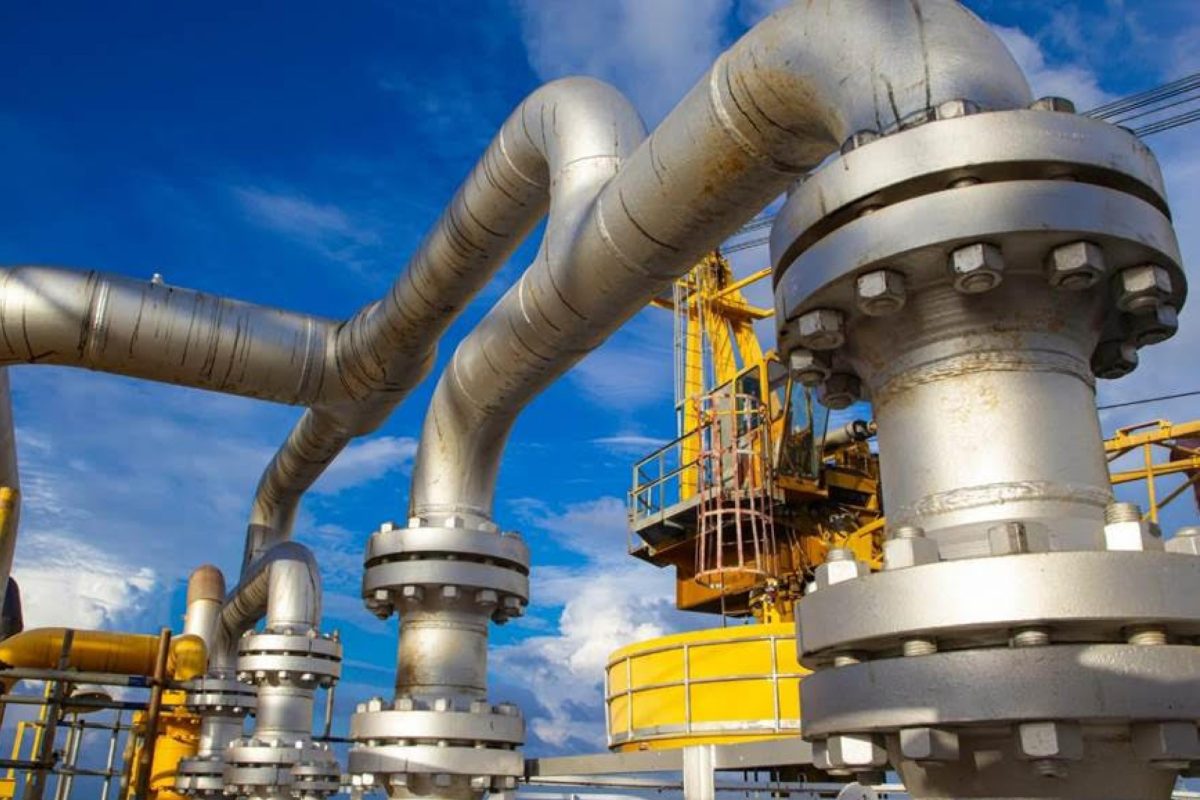

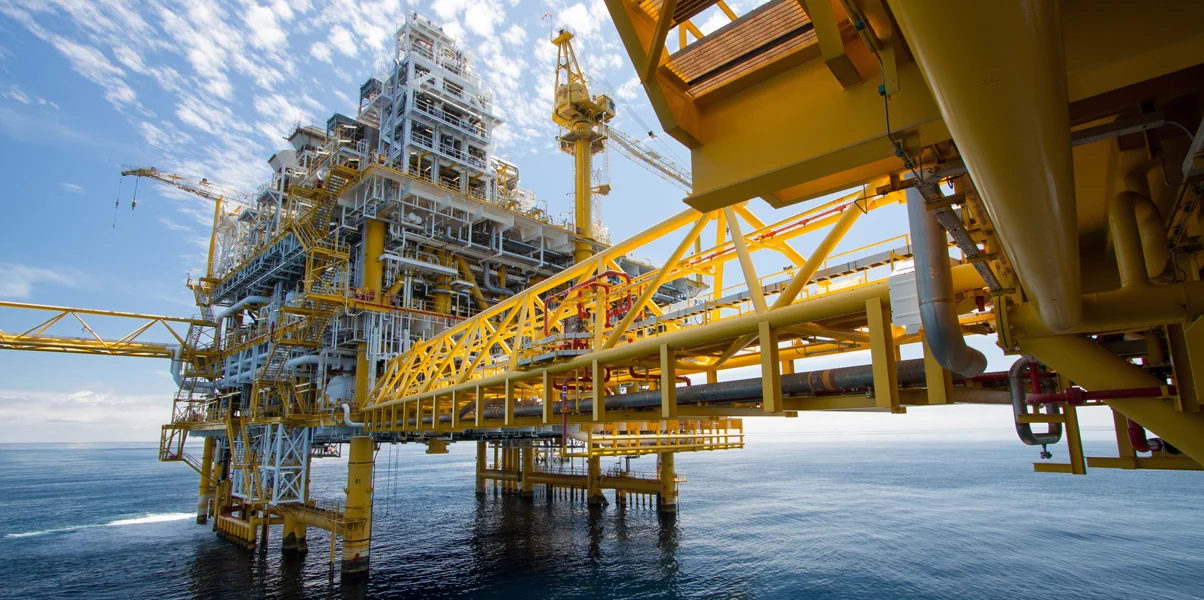

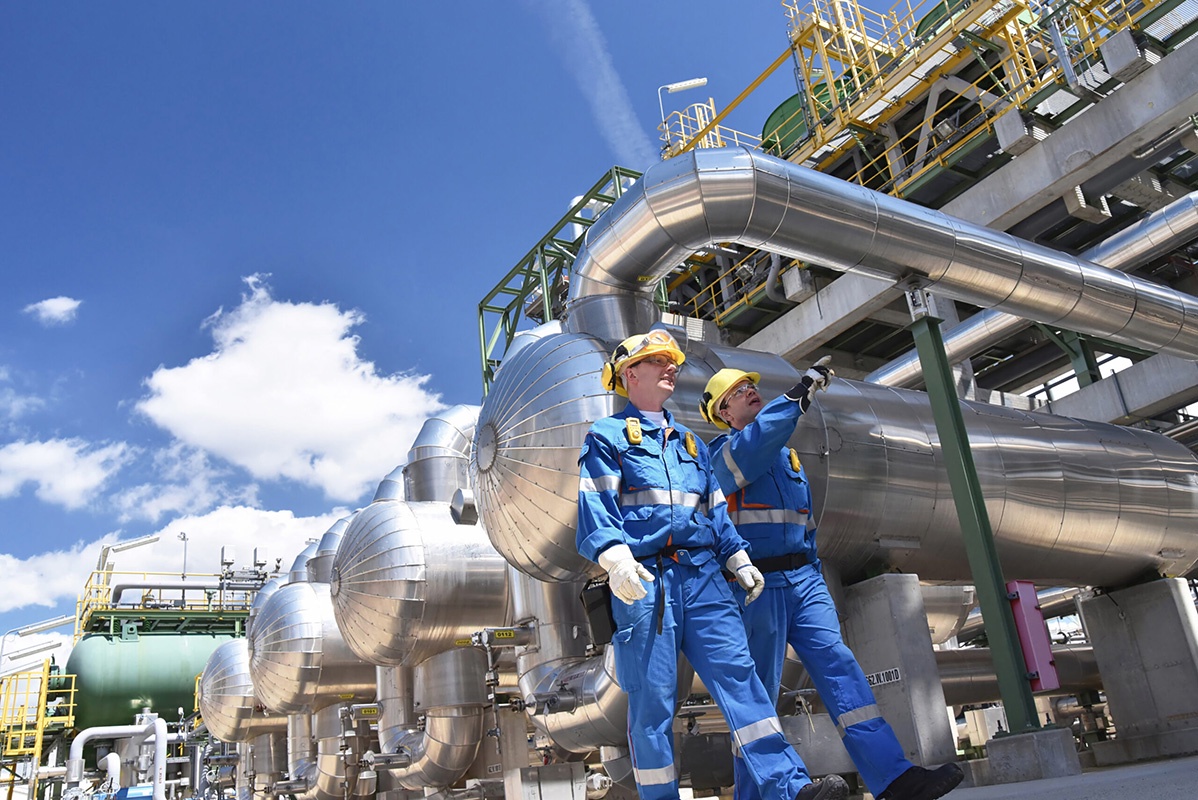

Oil & Gas Field Services

Used for pipeline cleaning, pressure testing, nitrogen purging support, and general field maintenance operations.

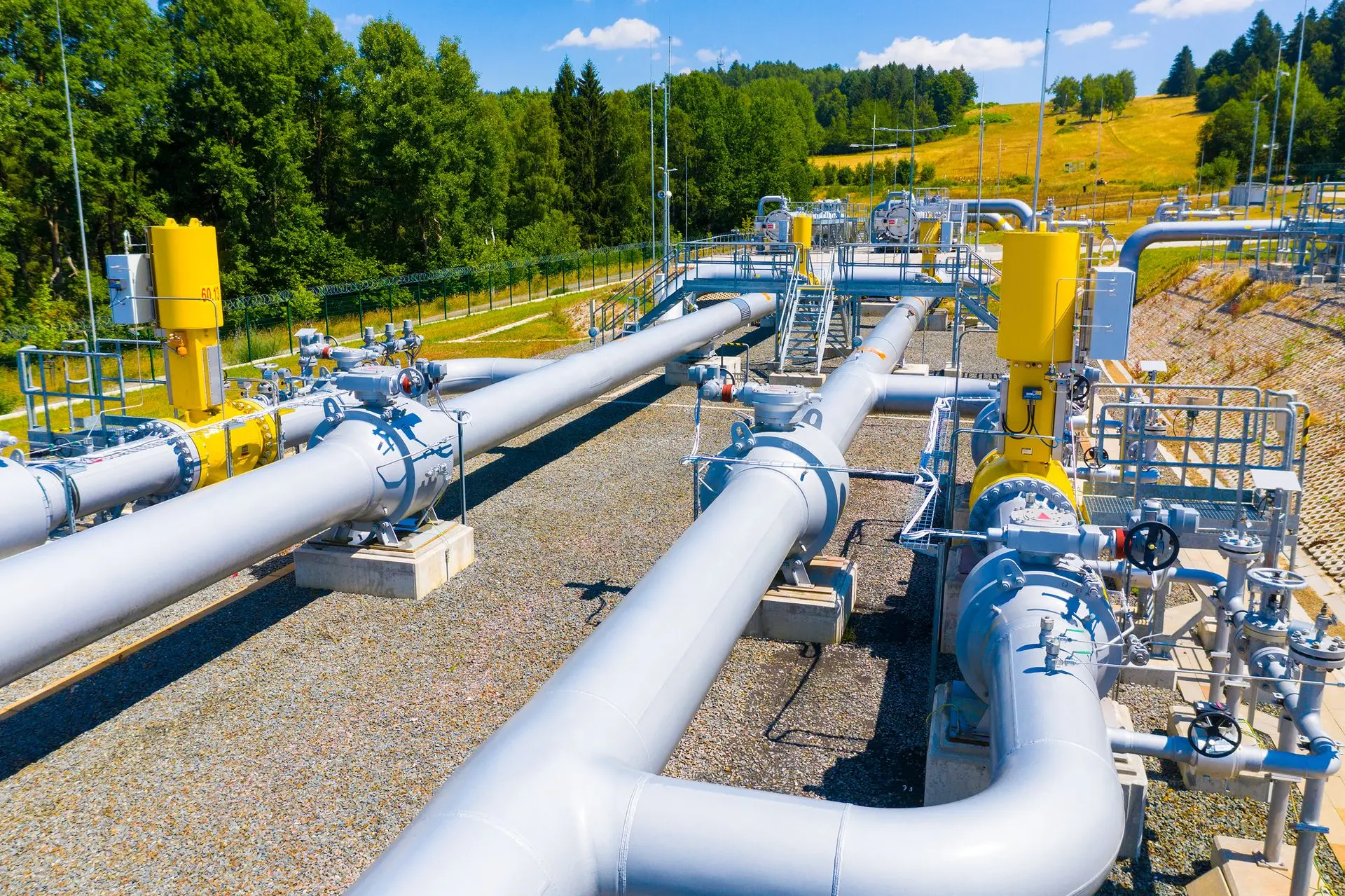

Oil & Gas Pipelines

Corrosion protection for onshore and offshore pipelines in harsh desert and coastal environments.

Rental & Equipment Leasing

High demand in rental fleets due to mobility, durability, and fast return on investment, widely used across Middle East and Africa.

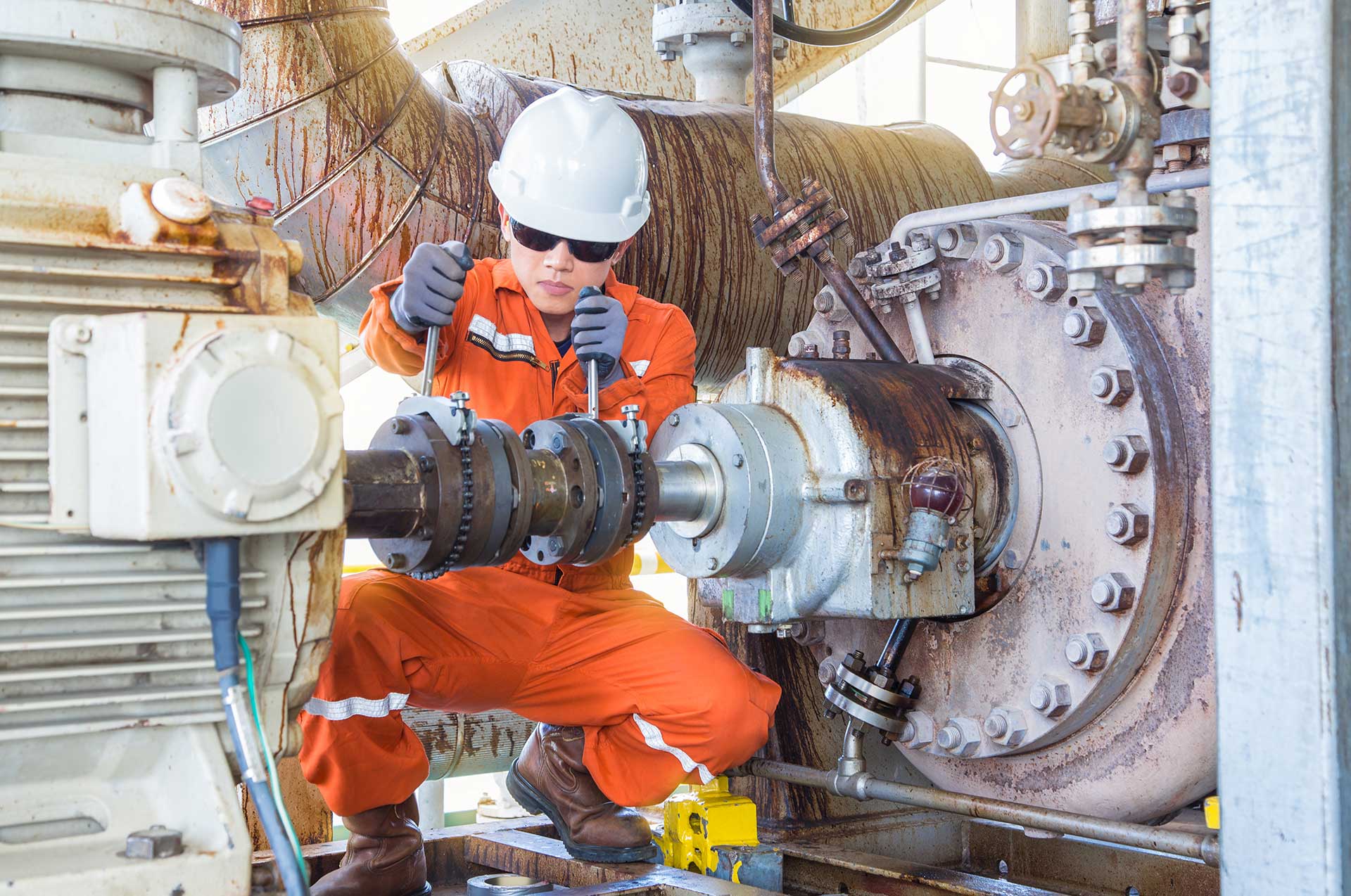

Industrial Maintenance & Shutdown Services

Temporary compressed air supply during plant shutdowns, maintenance, and emergency situations.

Spare Parts

Have some special inquiry?

We offer fully customizable diesel portable air compressor solutions. Options include:

  • Skid-mounted frames with DNV certification
  • Explosion-proof configurations (Ex) with spark arrestors
  • Explosion-proof configurations (Ex) with shutdown inlet valves
  • Custom exterior finishes and nameplates
  • Built-in aftercoolers
  • Additional flow meters
  • Enhanced soundproofing (acoustic insulation)
  • Enhanced vibration-damping pads
  • …and more upon request.
