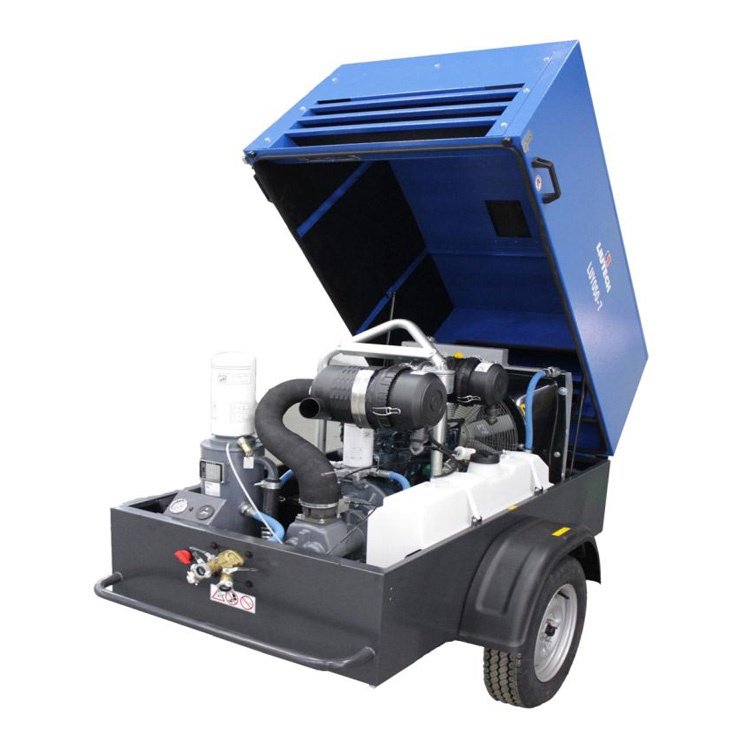

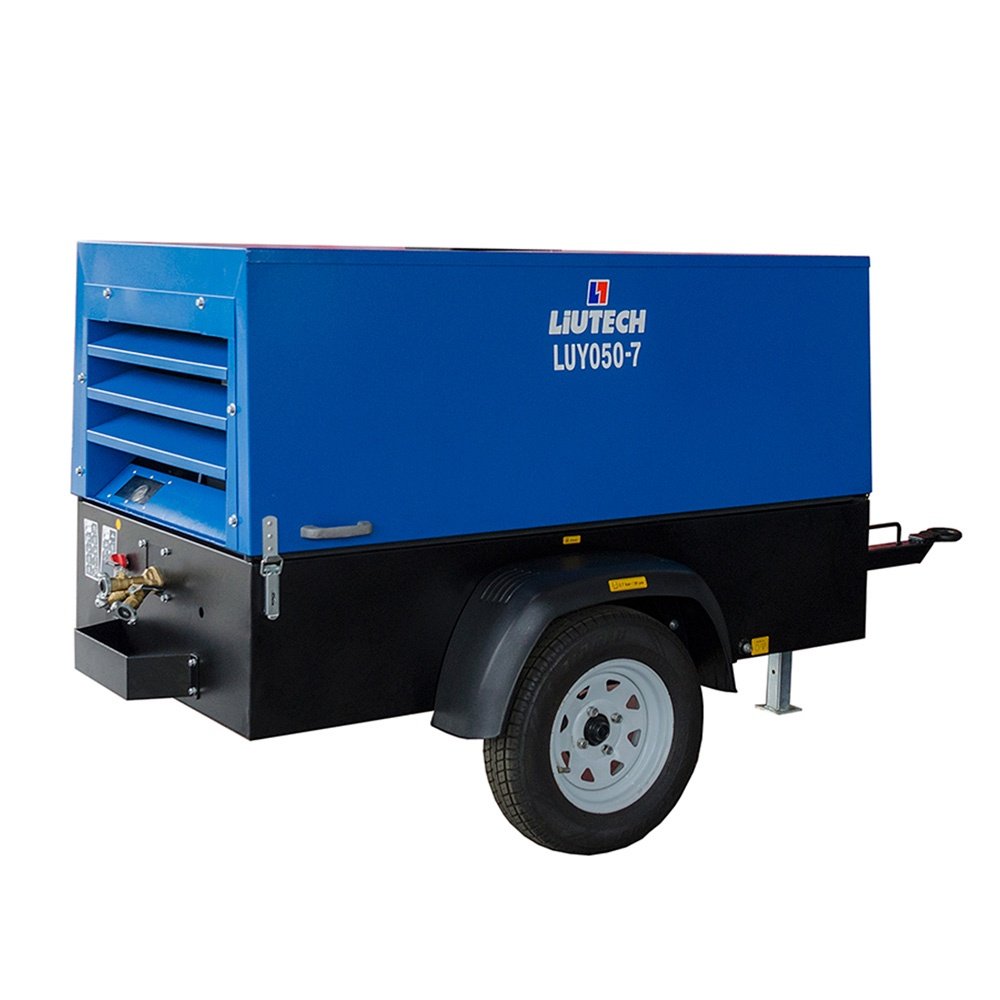

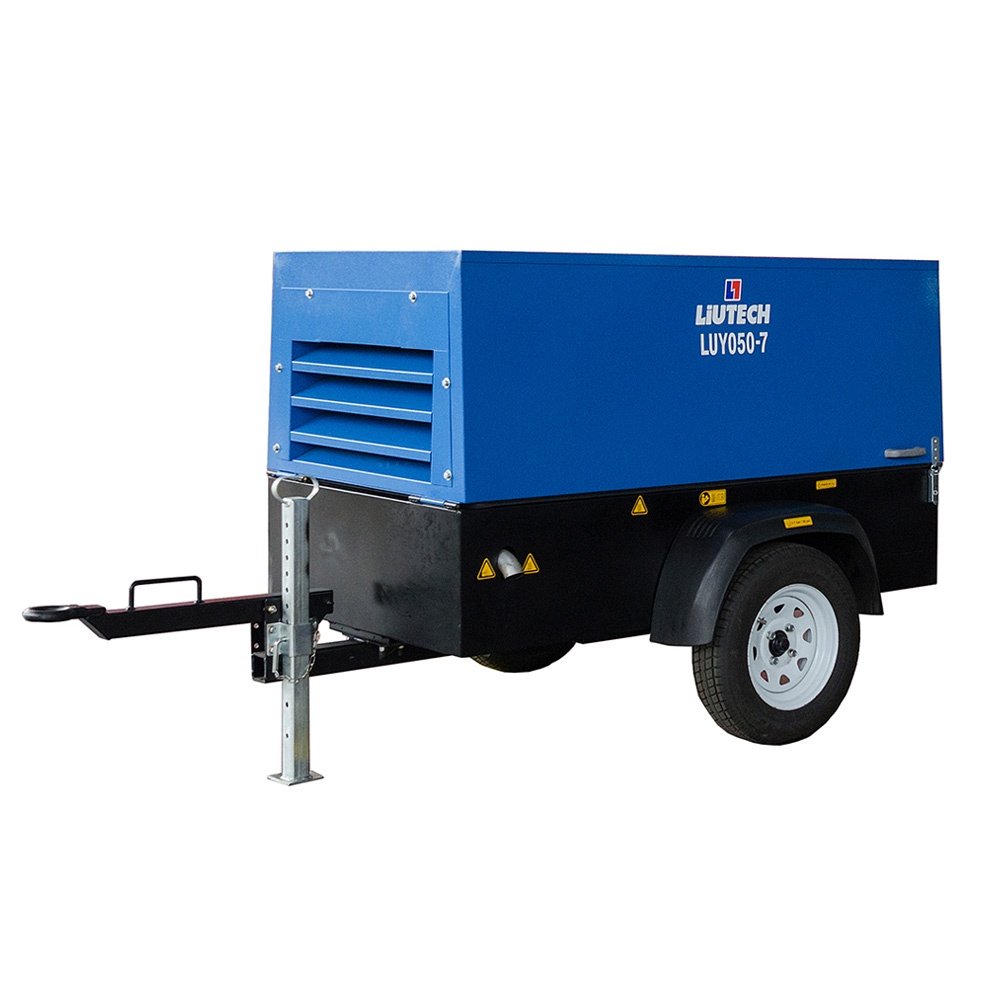

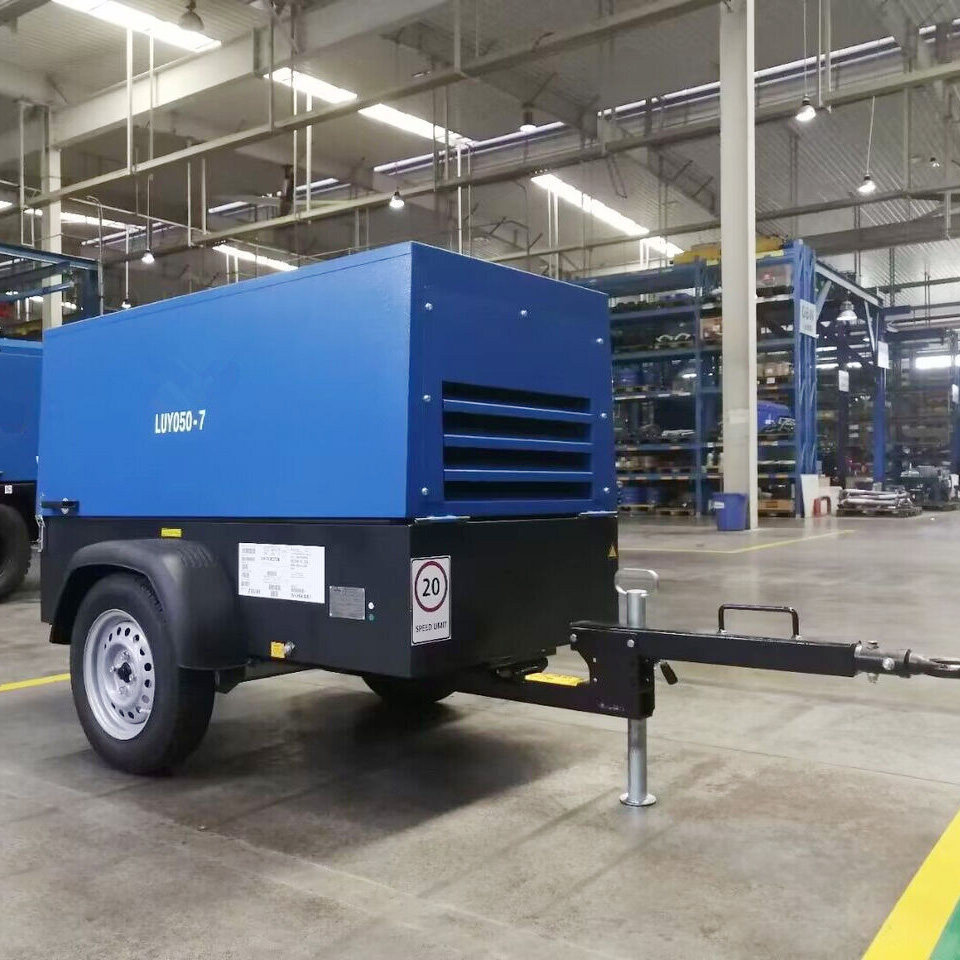

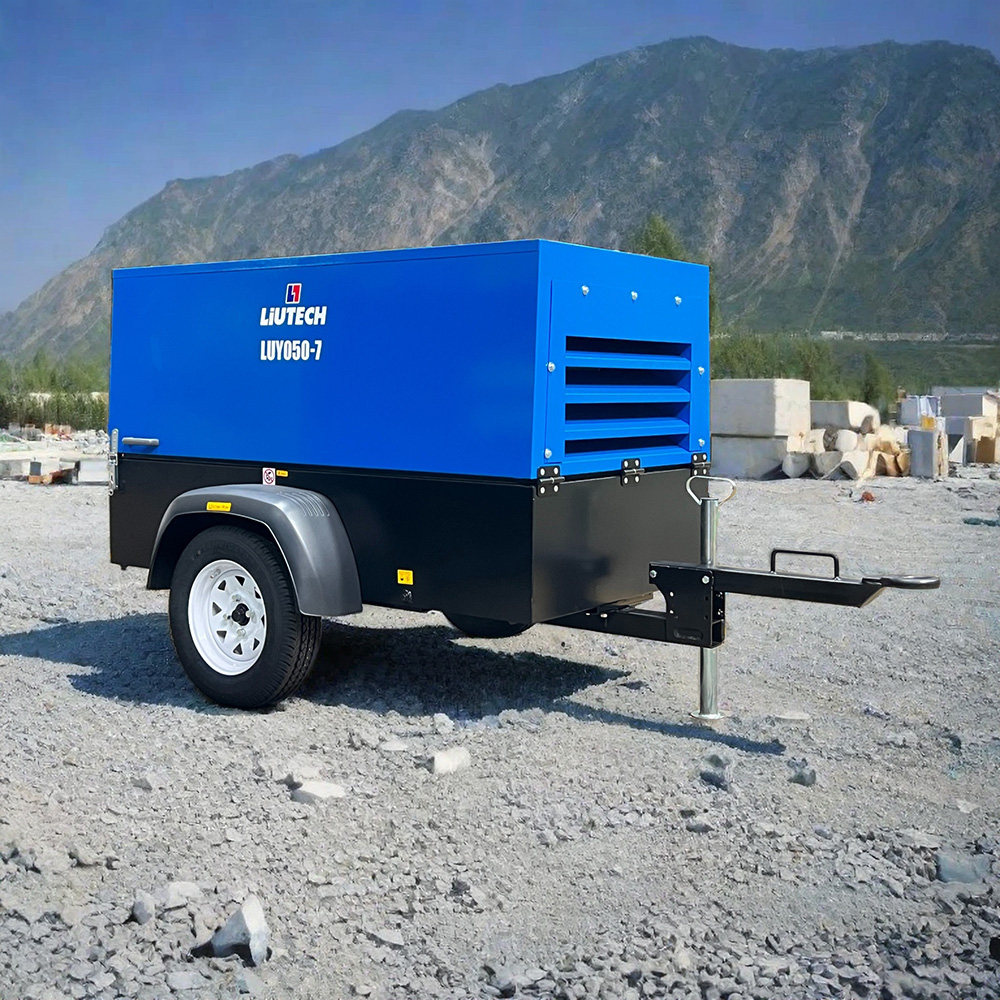

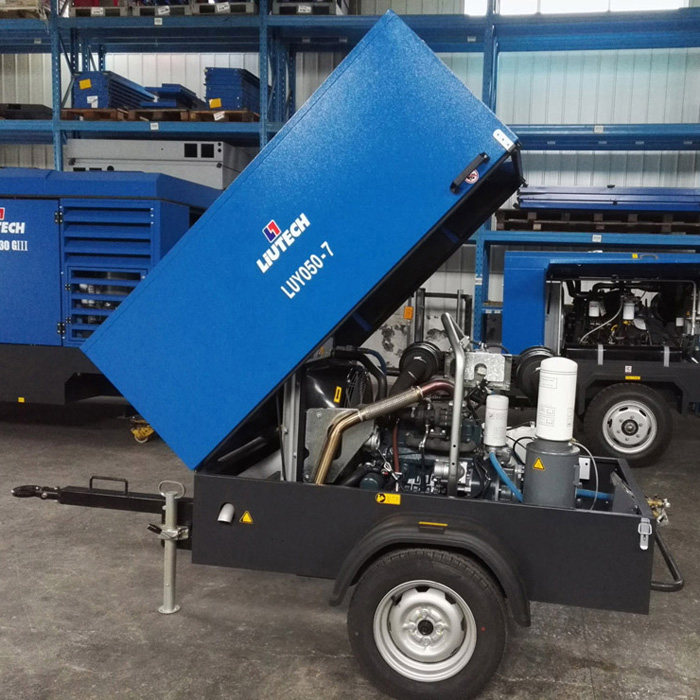

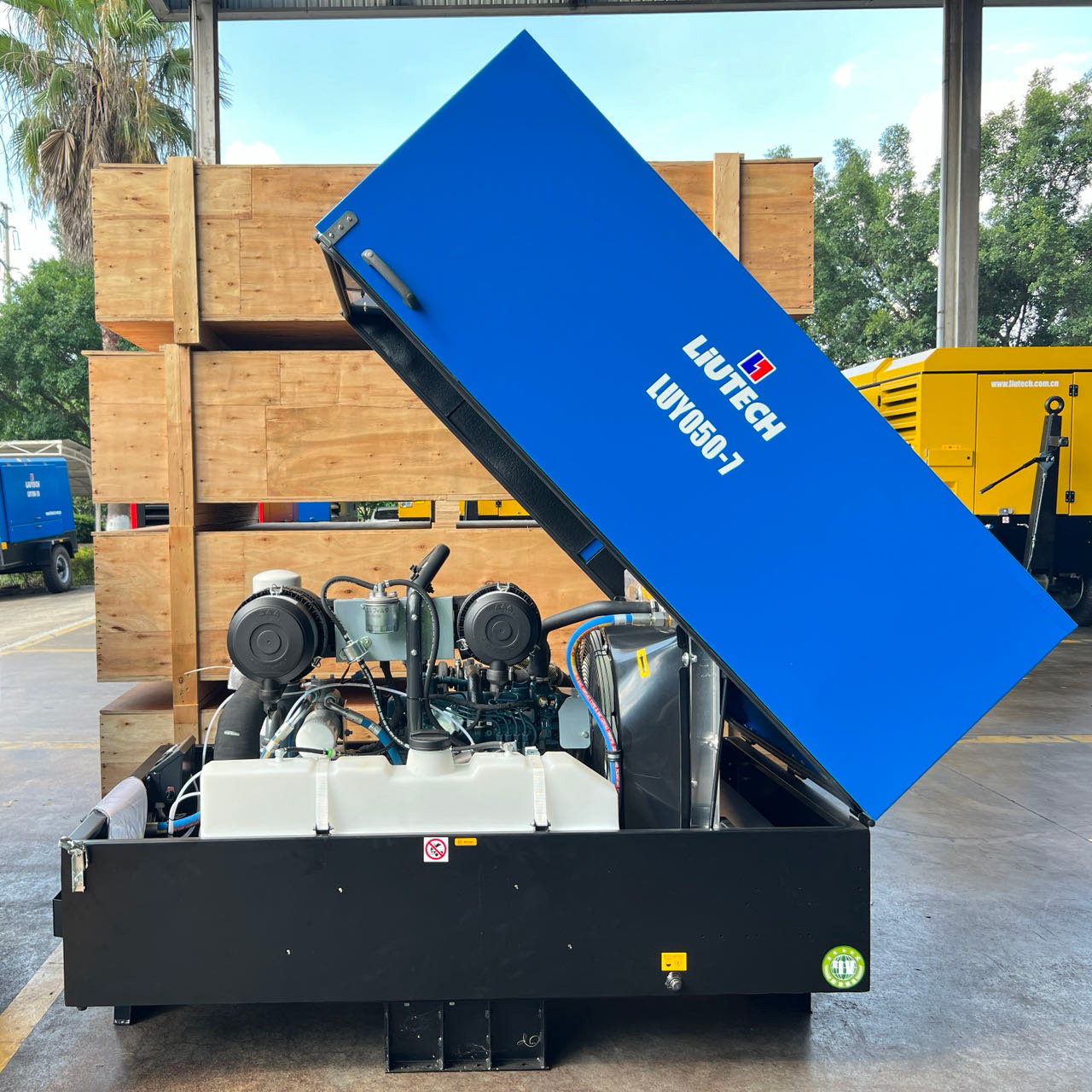

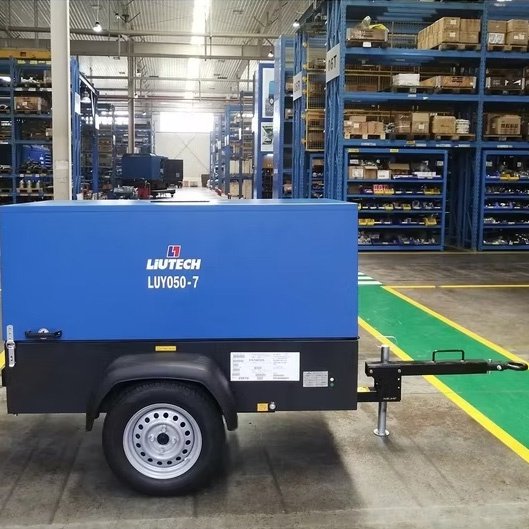

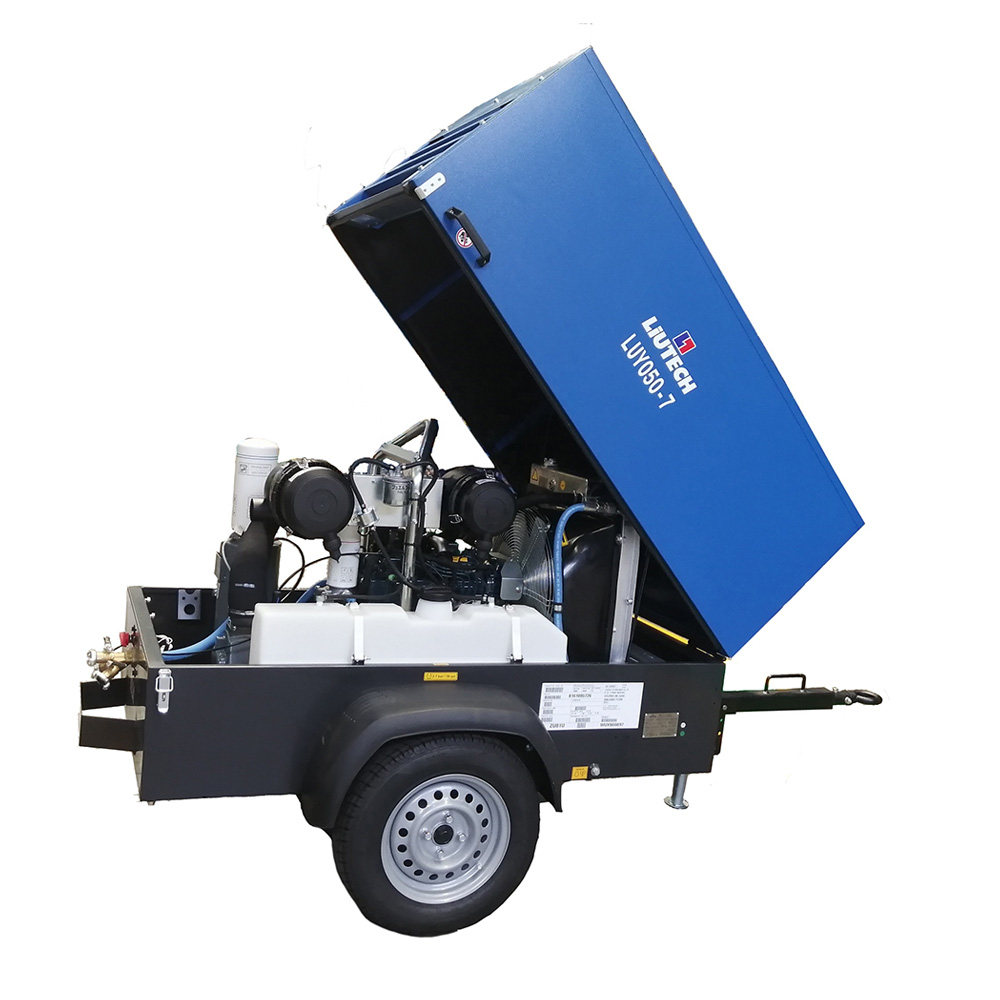

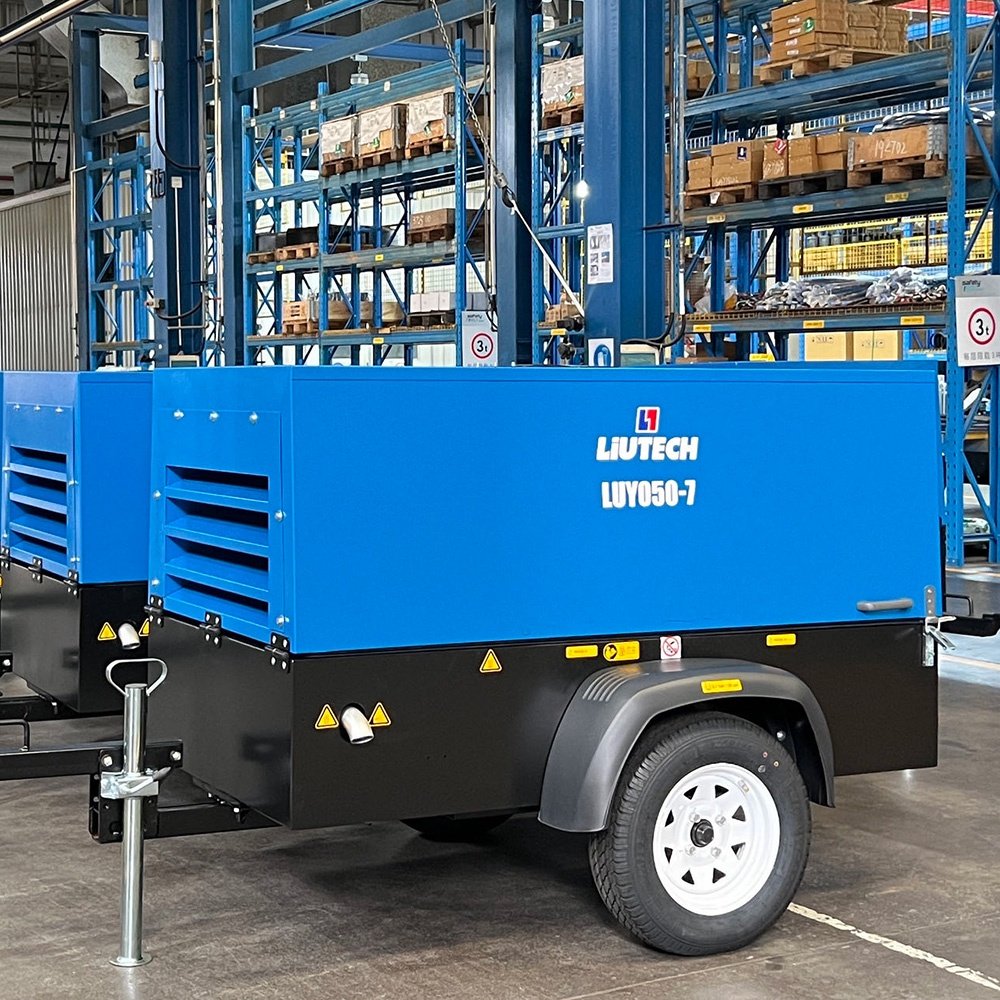

LUY050-7
· Free Air Flow (FAD) 5 m³/min
· Rated Working Pressure 7 bar (300psi)
· XAS 88
Contact our expert

‹

  • LUY050-7
  • LUY050-7
  • LUY050-7
  • LUY050-7
  • LUY050-7
  • LUY050-7
  • LUY050-7
  • LUY050-7
  • LUY050-7
  • LUY050-7
  • LUY050-7
  • LUY050-7

›

LUY050-7
  • · The latest screw element technology.</br>· A powerfull engine from a well-known and respected brand.
    Increased efficiency and performance
    · The latest screw element technology.
    · A powerfull engine from a well-known and respected brand.
  • · Robust mechanical engine and simple control panel for easy operation and service.</br>· Large fuel tanks for uninterrupted operation overing a full work shift.</br>· All components of our compressors are optimized for wear and tear; offering a long service life.
    Work fast and stay productive
    · Robust mechanical engine and simple control panel for easy operation and service.
    · Large fuel tanks for uninterrupted operation overing a full work shift.
    · All components of our compressors are optimized for wear and tear; offering a long service life.
  • · Easy to service.</br>· Solid, weatherproof enclosure.</br>· Large cooling surfaces allow usage in high-temperature environments.</br>· Compressor and engine are protected from dust and dirt particles through the heavy duty air filters and fuel filters.
    Made to last wherever you need compressed air
    · Easy to service.
    · Solid, weatherproof enclosure.
    · Large cooling surfaces allow usage in high-temperature environments.
    · Compressor and engine are protected from dust and dirt particles through the heavy duty air filters and fuel filters.

Technical Specifications

Diesel Portable Air Compressor Part:

Two-stage screw compression, air-cooled, diesel engine driven, mobile unit for outdoor operation

Technical Parameters

Unit

LUY050-7

Free Air Flow (FAD)

m³/min

5

Rated Working Pressure

Bar

7

Maximum Loaded Speed

rpm

3000

Compressor Oil Capacity

L

8

Oil Content at Air Outlet

ppm

< 5

Discharge Air Temperature

(based on rated reference conditions)

°C

85

Noise Level (Sound Pressure Level)

dB(A)

70±3

Rated Reference Conditions

Parameter

Unit

Value

Absolute Inlet Pressure

bar

1

Relative Humidity

%

0

Inlet Air Temperature

°C

20

Extreme Operating Conditions

Parameter

Unit

Value

Maximum Working Pressure

bar

8.5

Maximum Ambient Temperature

°C

60

Minimum Starting Temperature

°C

-10

Maximum Altitude

m

3000

(derating required above 3000 m)

Diesel Engine



Modek Volume Flow
(Nm³/h)		 Inlet Pressure
( Mpa(G) )		 Discharge Pressure
( Mpa(G) )		 Weight
(kg)		 Application Areas
DHL-16/0.02-5 16 0.002 0.5 Alkanes Exhaust Technological Process
DHZ-9/1-3 9 0.1 0.3 Hexafluoropropane
DHL-10/2-200 10 0.2 20.0 Krypton Xenon Gas Filling
DHL-32/1-24.5 32 0.1 2.45 Carbon Dioxide Technological Process
DHZ-150/12-200 150 1.2 20.0 Carbon Oxide Gas Filling
DHZ-40/7-65 40 0.7 6.5 Hydrogen Chloride
DHL-15/0.1-200 15 0.01 20.0 Neon

Overall Dimensions and Weight



Item

Unit

Value

Overall Length – Width –Height

Two-wheel Trailer Type

mm

2702×1346×1311

Total Weight Four-wheel Trailer Type

kg

750

Overall Length – Width –Height

Skid-Mounted Type

mm

1848×1040×1154

Total Weight Skid-Mounted Type

kg

650

Air Outlet Valve Size

in

3 × G3/4"



Main Configuration Description

Manufacturer:

Atlas Copco Airpower Belgium

Liuzhou Tech Machinery Co., Ltd.

Atlas Copco (Wuxi) Compressor Co., Ltd.

I. Unit Configuration and Origin

Core Technology Components

Screw Compressor Air Ends (Two-stage compression):

  • The first-stage screw air end is manufactured and factory-tested by Atlas Copco (Wuxi) Compressor Co., Ltd.
  • The second-stage screw air end is manufactured and factory-tested by Atlas Copco Belgium.

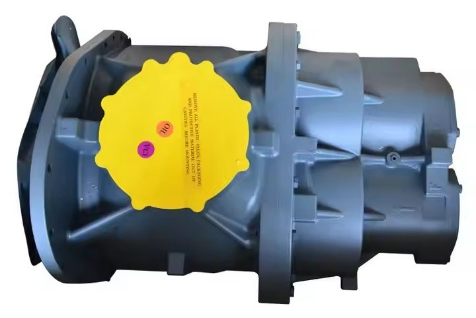

Imported Components

  • Coupling
  • Control system
  • Minimum pressure valve
  • Second-stage screw air end
  • Air inlet filter, oil filter, oil-air separator
  • Flexible piping for high-temperature sections
  • Inlet loading/unloading valve, regulating valve, solenoid valves

All the above components, including the control system and other parts, are manufactured by Atlas Copco Airpower Belgium or supplied by European OEM partners.

Imported Components

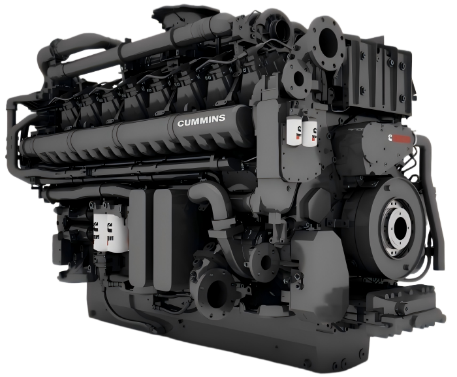

Locally Manufactured Components

  • Diesel engine
  • Gearbox
  • Diesel fuel filter
  • Sensors and associated wiring
  • Air receiver and safety valves
  • Various pipe fittings and castings
  • Cooling fan and cooling radiator unit
  • Enclosure panels, sound insulation materials and baffles
  • Flexible pipes for normal temperature sections and fuel pipelines
  • Trailer chassis and axle travel system, specially designed for Chinese road conditions

The diesel engine is manufactured by Dongfeng Cummins Engine Company. Other components are produced by Atlas Copco’s OEM suppliers in Wuxi.

Locally Manufactured Components

Standard & Optional Systems

  • FuelXpert™ Fuel Saving System (AC patented): Reduces overall fuel consumption by 10–15% compared to conventional units.
  • Drilling Expert System (AC patented): Equipped with pressure control, flow control and dynamic air flow regulation. During the cuttings discharge phase, it can provide an additional 4 m³/min of airflow, increasing drilling efficiency by 30%, reducing fuel consumption by 15%, and improving machine residual value by 10%.
  • Adjustable Minimum Pressure Valve (AC patented): Allows the minimum operating pressure to be reduced to 15 bar, extending the operating pressure range to 15–25 bar and significantly increasing application flexibility.
  • Optional Oiltronix™ Electronic Oil Temperature Control System (AC patented): Extends the service life of the screw air end by more than 50%.

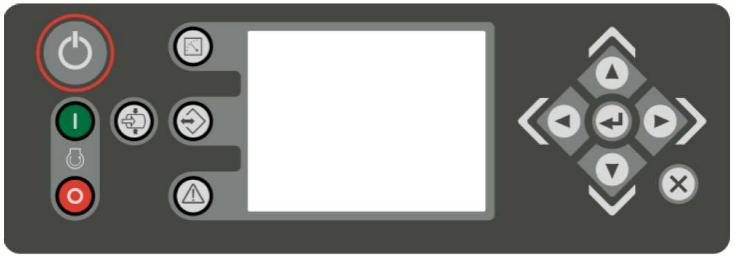

II. Main Control and Display Instruments

  • Compressor operating pressure gauge
  • Compressor load button
  • Total running hours counter
  • Alarm and fault indicator lights
  • Start/stop buttons and control module
  • Fuel tank level indicator
  • Screw air end oil level sight glass
  • Inlet air filter clogging indicator
Main Control and Display Instruments

III. Main Protection Devices and Functions

  • Automatic Shutdown Protection:
  • High compressor discharge temperature alarm indicator
  • Low engine lubricating oil pressure alarm indicator
  • High engine coolant temperature alarm indicator
  • Low fuel level alarm indicator

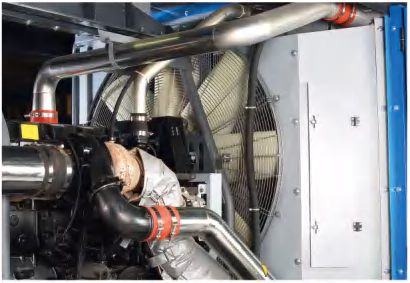

Main Protection Devices and Functions

IV. Supplied Documents and Accessories

  • Operation and Maintenance Manual
  • Spare Parts Manual
  • Pressure Vessel and Safety Valve Certificates
  • 50-hour Service Kit
Supplied Documents and Accessories

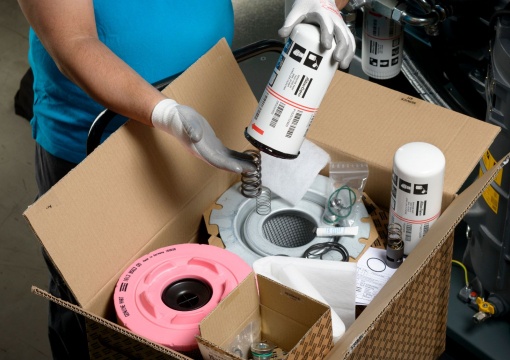

Spare Parts
